NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1NDTV

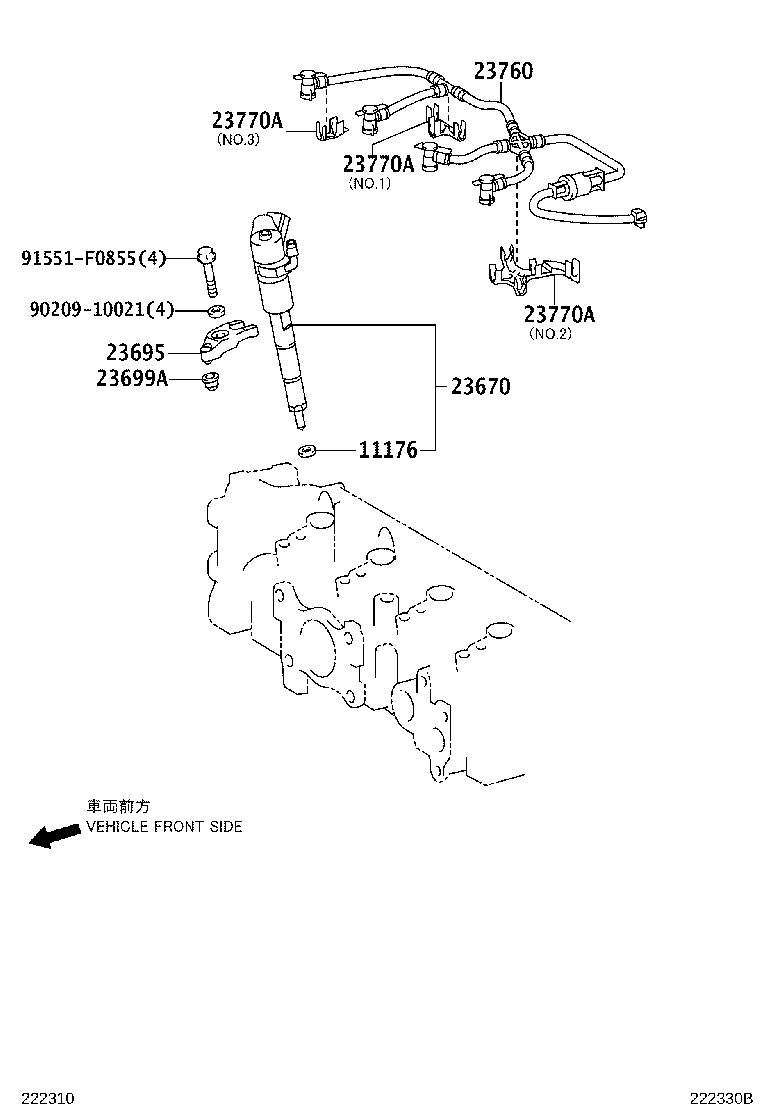

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-33010 |
1NDTV..NUJ10 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09390 |
1NDTV..NUJ10 (L) |
4 | ||
| 23670-39405 |
1NDTV..NUJ10 (J) |
4 | ||
| 23670-39415 |
1NDTV..NUJ10 (J) |
4 | ||
| 23670-39325 |
1NDTV..NUJ10 |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-33020 |
1NDTV..NUJ10 |
4 | ||
| 23699A - SEAT, NOZZLE HOLDER CLAMP | ||||
| 23699-33020 |
1NDTV..NUJ10 |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-33030 |
1NDTV..NUJ10 |
1 | ||
| 23760-0W010 |
1NDTV..NUJ10 (L) |
1 | ||
| 23760-33030 |
1NDTV..NUJ10 (J) |
1 | ||
| 23770A - CLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET) | ||||
| 23841-33030 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 23841-33050 |
1NDTV..NUJ10 NO.3 |
1 | ||
| 23841-33040 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 23770A - CLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET) | ||||
| 23841-33030 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 23841-33050 |
1NDTV..NUJ10 NO.3 |
1 | ||
| 23841-33040 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 23770A - CLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET) | ||||
| 23841-33030 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 23841-33050 |
1NDTV..NUJ10 NO.3 |
1 | ||
| 23841-33040 |
1NDTV..NUJ10 NO.2 |
1 | ||
| Common parts | ||||
| 90209-10021 | ||||
| 91551-F0855 | ||||
