NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV

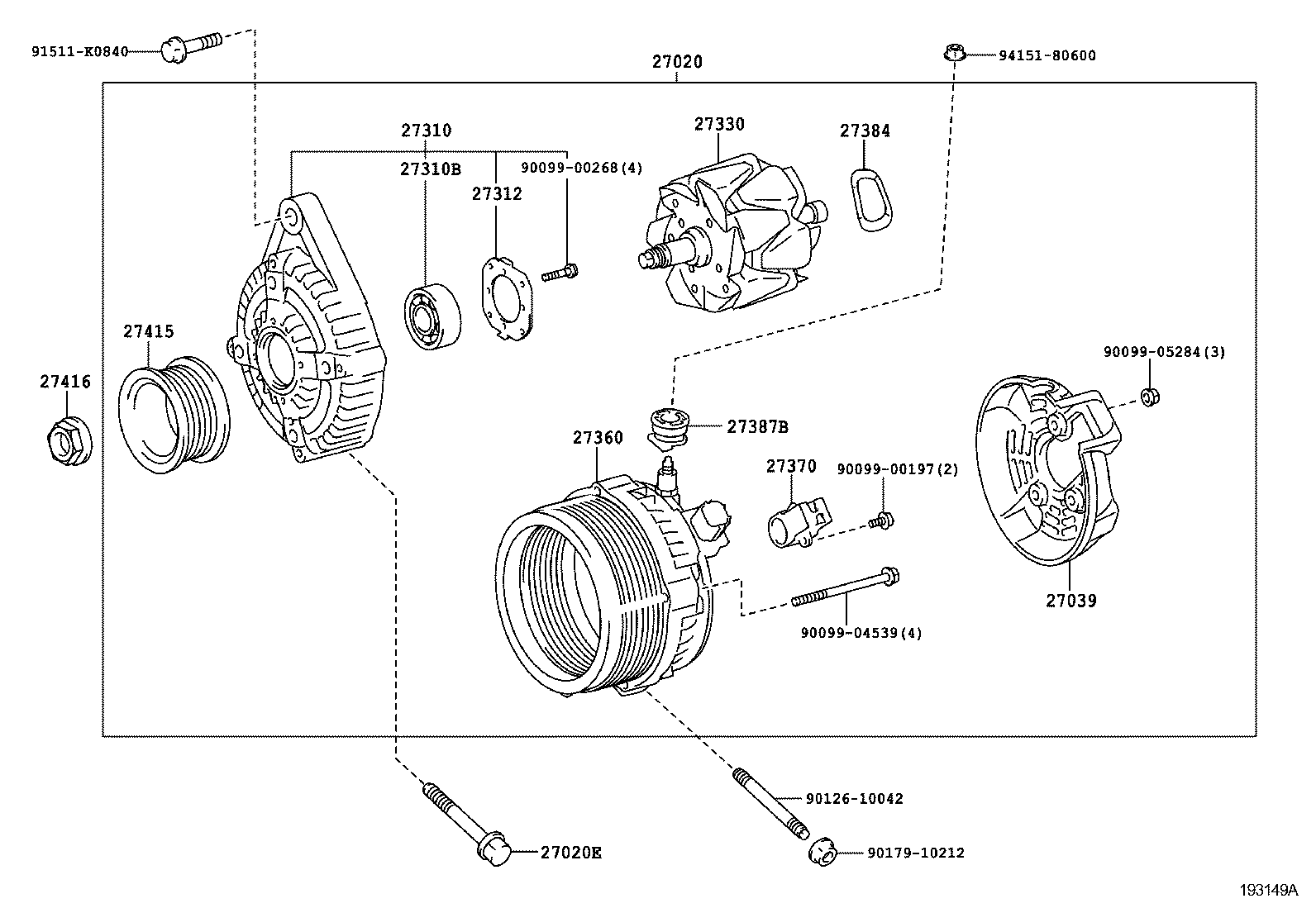

Click highlighted areas on diagram

12V 100A

diagram 27020 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387B 27415 27416 9009900197 9009900268 9009904539 9009905284 9012610042 9017910212 91511K0840 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-33090

1NDTV..NUJ10

12V 100A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10307

1NDTV..NUJ10

 1
27039 - COVER, ALTERNATOR REAR END
27039-26170

1N#..NGJ10,NUJ10..6F

 1
27039-31390

1N#..NGJ10,NUJ10..6F

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-33170

1NDTV..NUJ10

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10231

1NDTV..NUJ10

 1
27312 - PLATE, RETAINER
27312-72100

1N#..NGJ10,NUJ10..6F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-30070

1NDTV..NUJ10

 1
27360 - COIL ASSY, ALTERNATOR
27360-33170

1NDTV..NUJ10

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

1N#..NGJ10,NUJ10..6F

 1
27384 - WASHER
27384-50030

1N#..NGJ10,NUJ10..6F

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130

1N#..NGJ10,NUJ10..6F

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-33080

1NDTV..NUJ10

 1
27416 - CAP, ALTERNATOR PULLEY
27416-27010

1NDTV..NUJ10

 1
Common parts
90099-00197
90099-00268
90099-04539
90099-05284
90126-10042
90179-10212
91511-K0840
94151-80600
