NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV

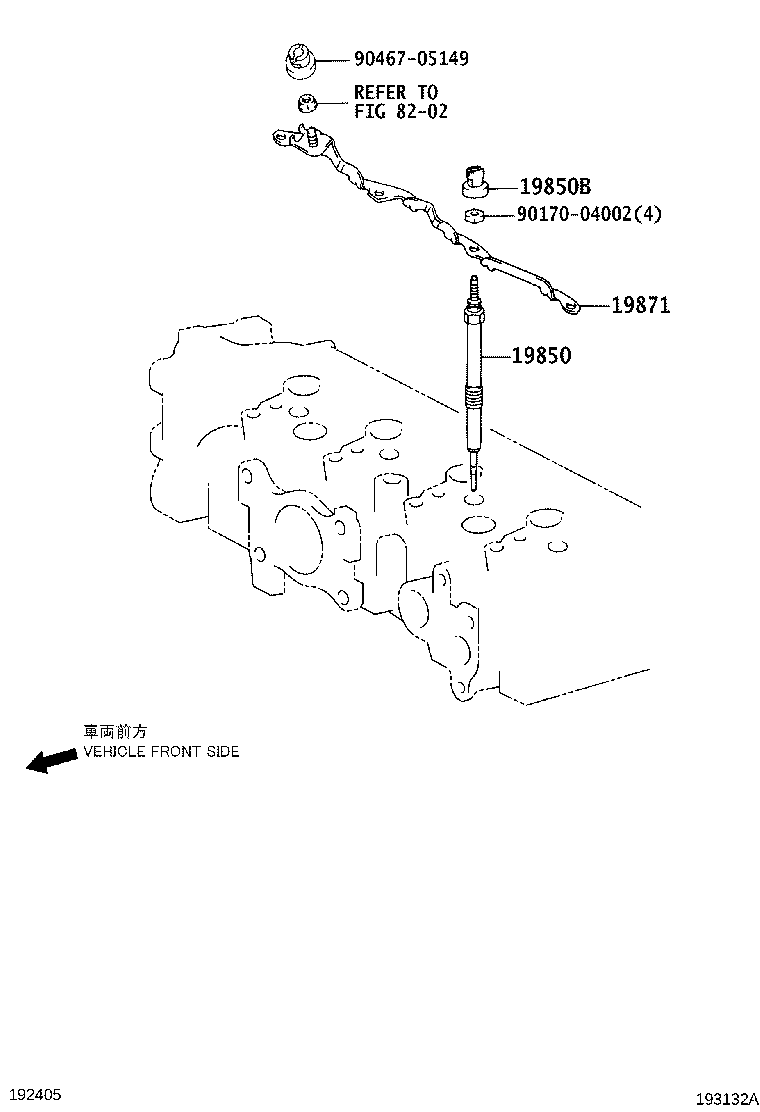

Click highlighted areas on diagram

diagram 19850 19850B 19871 8202 9017004002 9046705149
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-33020

1NDTV..NUJ10..LHD

*BV-GV=12V-11V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

1NDTV..NUJ10..LHD

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-33020

1NDTV..NUJ10..LHD

 1
Common parts
90170-04002
90467-05149
Linked diagrams
8202
