NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1NDTV

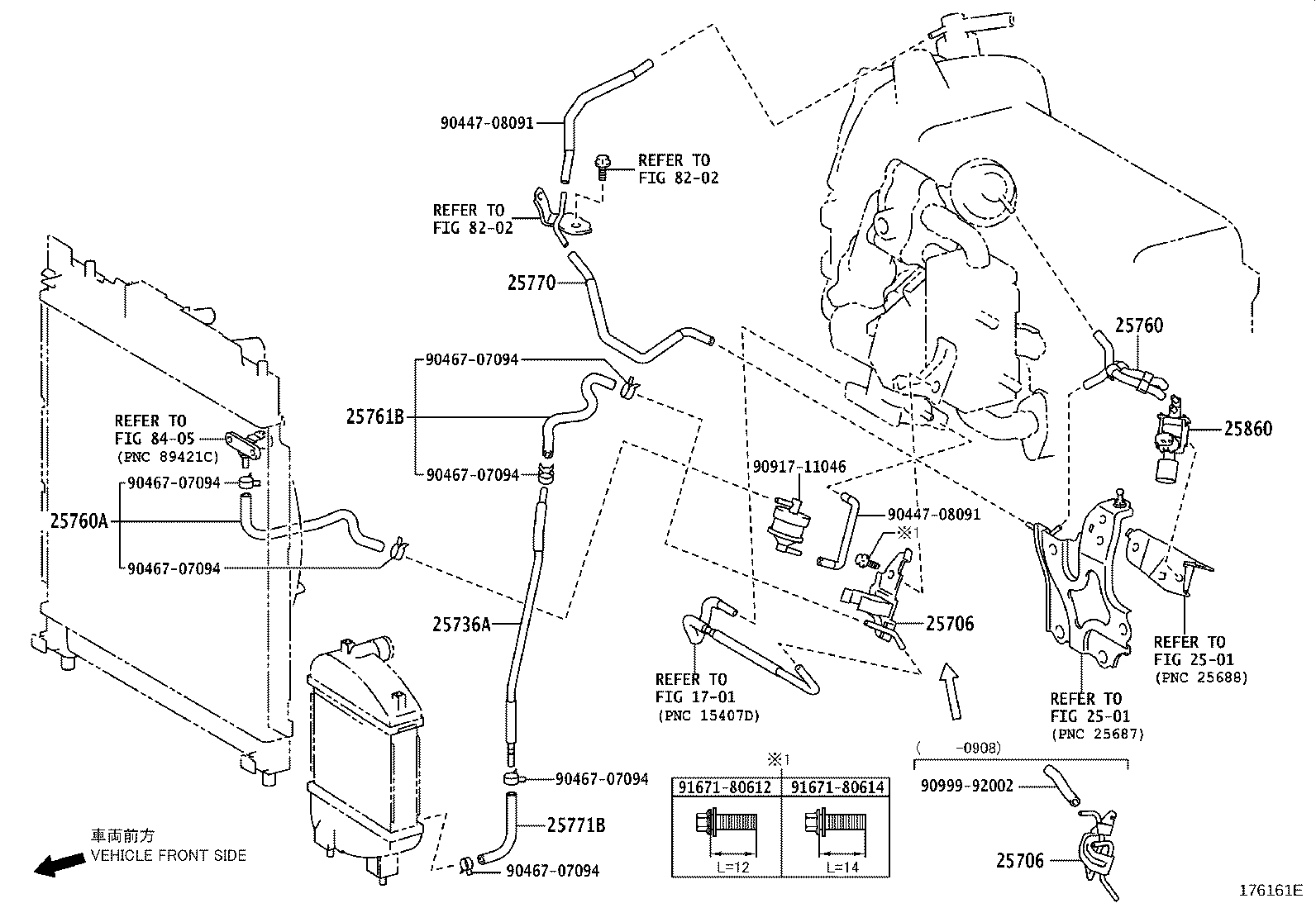

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-33050 |
1NDTV..NUJ10 |
1 | ||
| 25706-33090 |
1NDTV..NUJ10 |
1 | ||
| 25706-33051 |
1NDTV..NUJ10..LHD |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-33050 |
1NDTV..NUJ10 |
1 | ||
| 25706-33090 |
1NDTV..NUJ10 |
1 | ||
| 25706-33051 |
1NDTV..NUJ10..LHD |
1 | ||
| 25736A - PIPE, VACUUM TRANSMITTING, NO.1 | ||||
| 25736-33030 |
1NDTV..NUJ10..LHD |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-33110 |
1NDTV..NUJ10..LHD |
1 | ||
| 25760A - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-33071 |
1NDTV..NUJ10..LHD |
1 | ||
| 25760-33070 |
1NDTV..NUJ10 |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-33040 |
1NDTV..NUJ10 |
1 | ||
| 25761-33041 |
1NDTV..NUJ10..LHD |
1 | ||
| 25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25760-33130 |
1NDTV..NUJ10..LHD |
1 | ||
| 25771B - HOSE, VACCUM TRANSMITTING, NO.2 | ||||
| 25771-33040 |
1NDTV..NUJ10..LHD |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-30070 |
1NDTV..NUJ10..LHD |
1 | ||
| Common parts | ||||
| 90447-08091 | ||||
| 90467-07094 | ||||
| 90917-11046 | ||||
| 90999-92002 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2501 | ||||
| 8202 | ||||
| 8405 | ||||
