NUJ10L-BGFNWW (2008)
Toyota Iq
(0811- )1NDTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16523B - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
1NDTV..NUJ10..LHD |
2 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-33090 |
1NDTV..NUJ10..LHD |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-50005 |
1NDTV..NUJ10..LHD |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-50005 |
1NDTV..NUJ10..LHD |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-33070 |
1NDTV..NUJ10..LHD |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-50005 |
1NDTV..NUJ10..LHD |
2 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-50005 |
1NDTV..NUJ10..LHD |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-33060 |
1NDTV..NUJ10..LHD |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-62003 |
1NDTV..NUJ10..LHD |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-62003 |
1NDTV..NUJ10..LHD |
2 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-33060 |
1NDTV..NUJ10..LHD |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0N041 |
1NDTV..NUJ10..LHD |
1 | ||
| 17701-0N040 |
1NDTV..NUJ10 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0N060 |
1NDTV..NUJ10 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-22025 |
1NDTV..NUJ10..LHD NO.2 |
2 | ||
| 90480-16044 |
1NDTV..NUJ10..LHD NO.1 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-22025 |
1NDTV..NUJ10..LHD NO.2 |
2 | ||
| 90480-16044 |
1NDTV..NUJ10..LHD NO.1 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-33070 |
1NDTV..NUJ10 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-33010 |
1NDTV..NUJ10..LHD |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0N040 |
1NDTV..NUJ10 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-33050 |
1NDTV..NUJ10 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
1NDTV..NUJ10 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-33020 |
1NDTV..NUJ10 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-51003 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 90460-62003 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-51003 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 90460-62003 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 17909 - DUCT SUB-ASSY, INTERCOOLER COOLING AIR | ||||
| 17909-33010 |
1NDTV..NUJ10..LHD |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-33030 |
1NDTV..NUJ10..LHD |
1 | ||
| 17947A - PLATE, INTERCOOLER | ||||
| 17947-33010 |
1NDTV..NUJ10..LHD |
1 | ||
| 17951 - INSULATOR, INTERCOOLER | ||||
| 17951-33010 |
1NDTV..NUJ10..LHD |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22204-26010 |
1NDTV..NUJ10..LHD |
1 | ||
| Common parts | ||||
| 90091-20641 | ||||
| 90119-06859 | ||||
| 94151-80600 | ||||

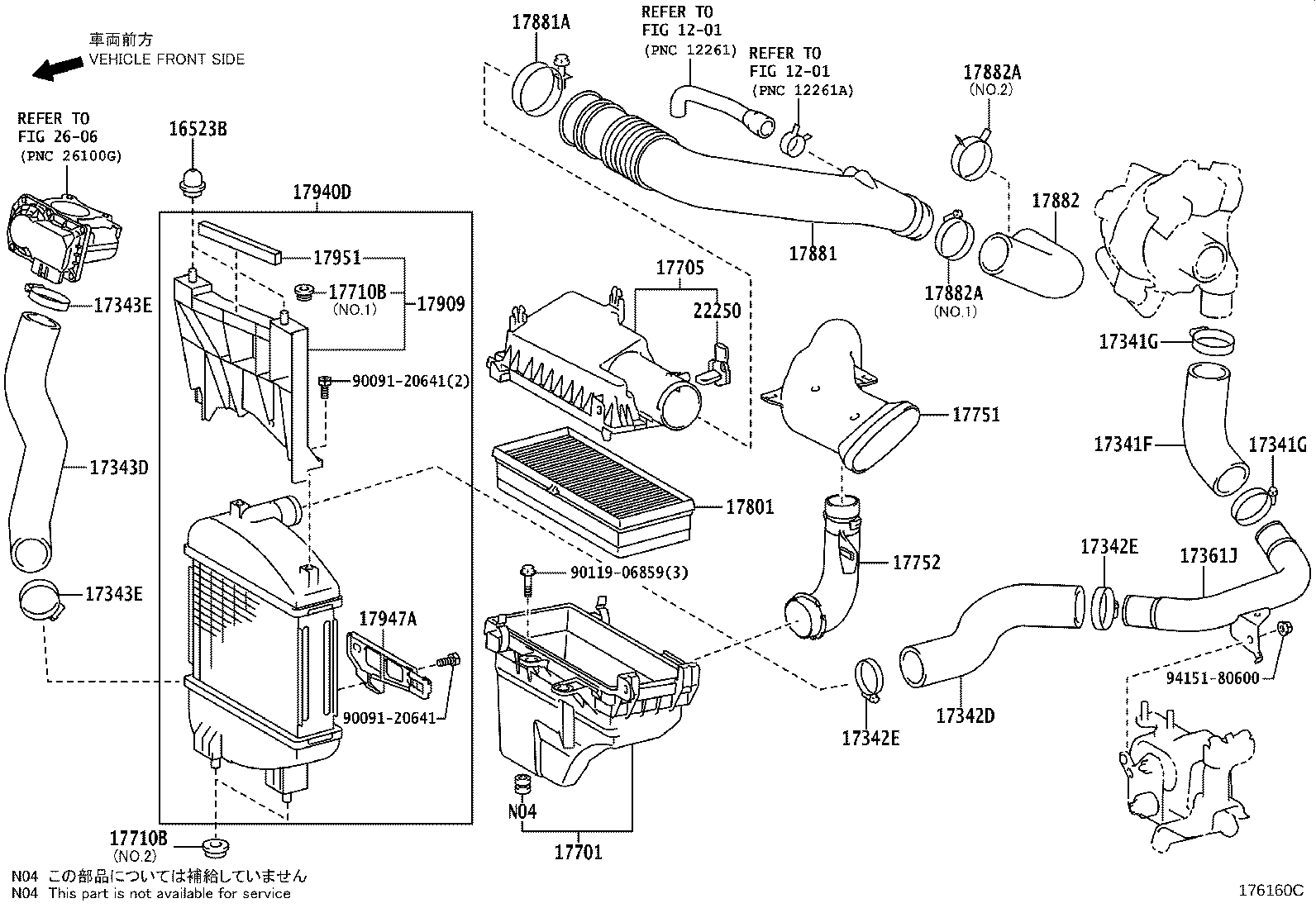

| Linked diagrams | ||||
| 1201 | ||||
| 2606 | ||||
