NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV..LHD

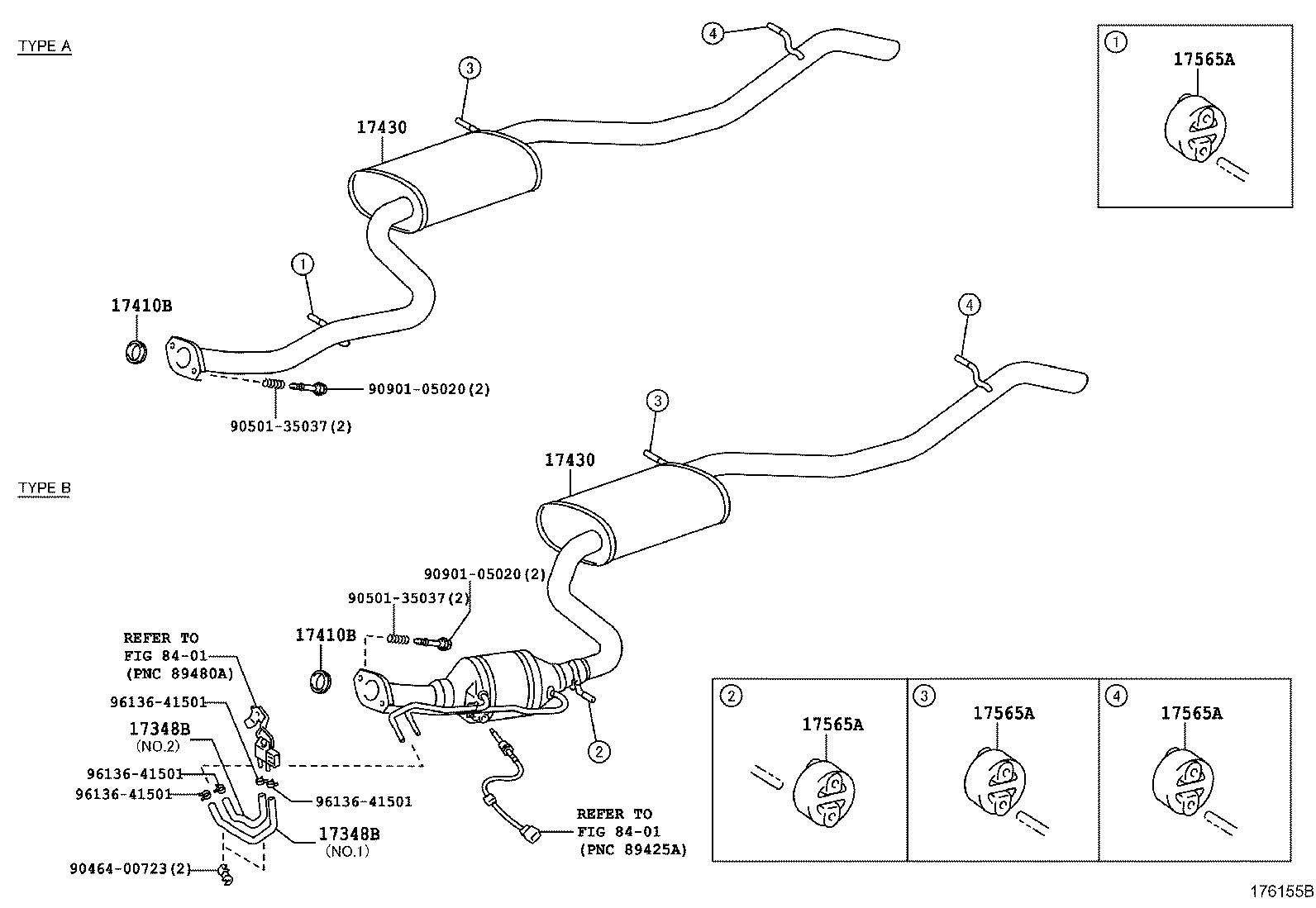

Click highlighted areas on diagram

diagram 17348B 17348B 17410B 17410B 17430 17430 17565A 17565A 17565A 17565A 8401 8401 9046400723 9050135037 9050135037 9090105020 9090105020 9613641501 9613641501 9613641501 9613641501
Part # Description Qty Price
17348B - HOSE, AIR, NO.8(FOR EXHAUST PIPE)
17348-33010

1NDTV..NUJ10..LHD

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF),NO.2

 1
17347-33010

1NDTV..NUJ10..LHD

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF),NO.1

 1
17348-33010

1NDTV..NUJ10

NO.2

 1
17347-33010

1NDTV..NUJ10

NO.1

 1
17348B - HOSE, AIR, NO.8(FOR EXHAUST PIPE)
17348-33010

1NDTV..NUJ10..LHD

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF),NO.2

 1
17347-33010

1NDTV..NUJ10..LHD

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF),NO.1

 1
17348-33010

1NDTV..NUJ10

NO.2

 1
17347-33010

1NDTV..NUJ10

NO.1

 1
17410B - GASKET, EXHAUST PIPE
17451-21070

1NDTV..NUJ10

 1
17410B - GASKET, EXHAUST PIPE
17451-21070

1NDTV..NUJ10

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-33110

1NDTV..NUJ10..LHD

TYPE A:REFER ILLUST.

 1
17430-33160

1NDTV..NUJ10

TYPE B:REFER ILLUST.

 1
17430-33120

1NDTV..NUJ10..LHD

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF),TYPE B:REFER ILLUST.

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-33110

1NDTV..NUJ10..LHD

TYPE A:REFER ILLUST.

 1
17430-33160

1NDTV..NUJ10

TYPE B:REFER ILLUST.

 1
17430-33120

1NDTV..NUJ10..LHD

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF),TYPE B:REFER ILLUST.

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 3
Common parts
90464-00723
90501-35037
90901-05020
96136-41501
Linked diagrams
8401
