NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV

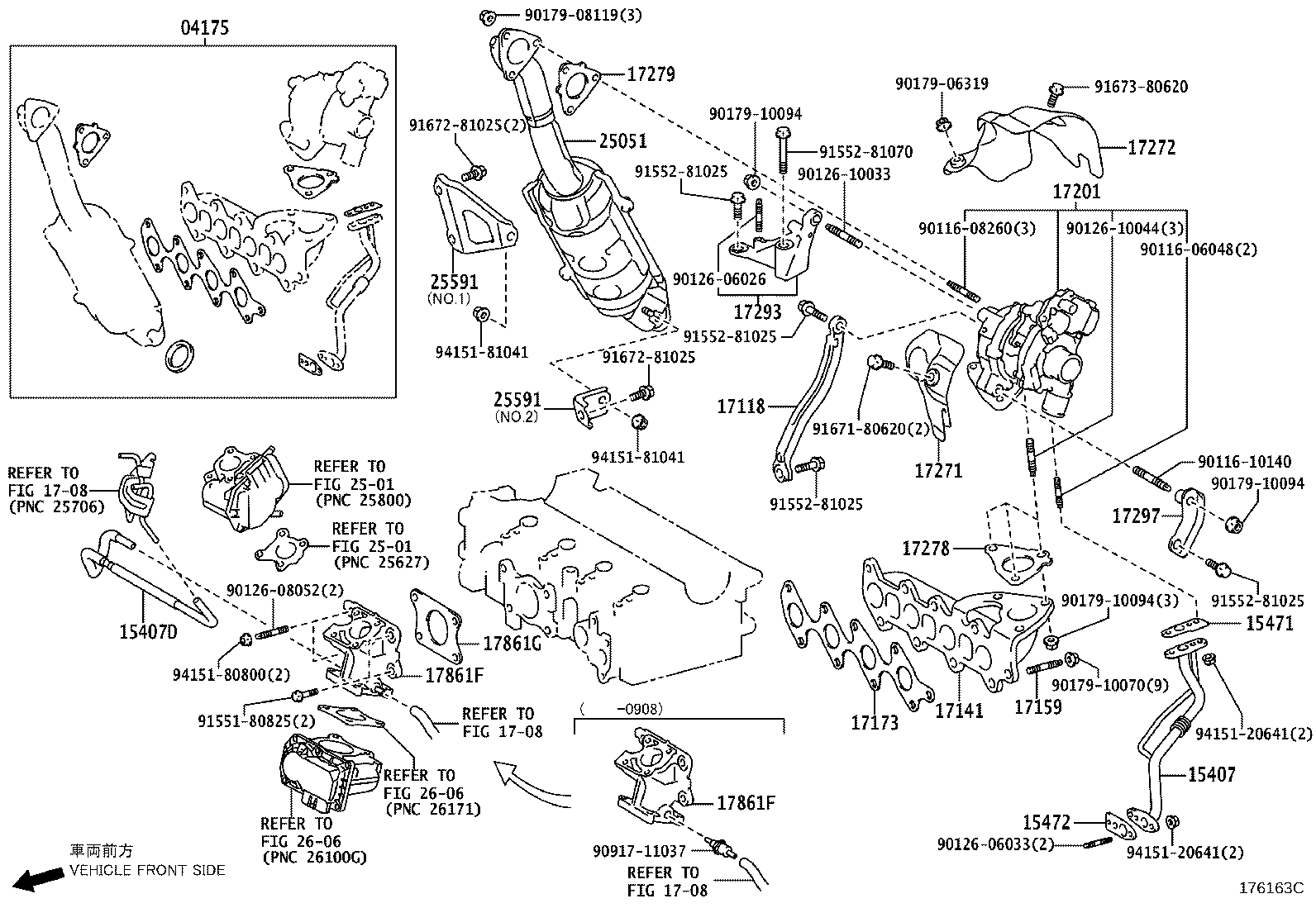

Click highlighted areas on diagram

diagram 04175 15407 15407D 15471 15472 1708 1708 1708 17118 17141 17159 17173 17201 17271 17272 17278 17279 17293 17297 17861F 17861F 17861G 2501 2501 25051 25591 25591 2606 2606 9011606048 9011608260 9011610140 9012606026 9012606033 9012608052 9012610033 9012610044 9017906319 9017908119 9017910070 9017910094 9017910094 9017910094 9091711037 9155180825 9155281025 9155281025 9155281025 9155281025 9155281070 9167180620 9167281025 9167281025 9167380620 9415120641 9415120641 9415180800 9415181041 9415181041
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-33090

1NDTV..NUJ10..LHD

 1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-33030

1NDTV..NUJ10..LHD

 1
15407D - HOSE, OIL, NO.1
12109-33030

1NDTV..NUJ10..LHD

 1
15471 - GASKET, TURBO OIL INLET
15471-33010

1NDTV..NUJ10..LHD

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-33020

1NDTV..NUJ10..LHD

 1
17118 - STAY, MANIFOLD
17118-33050

1NDTV..NUJ10

 1
17141 - MANIFOLD, EXHAUST
17141-33060

1NDTV..NUJ10..LHD

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10033

1NDTV..NUJ10..LHD

 9
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-33030

1NDTV..NUJ10

 1
17201 - TURBOCHARGER SUB-ASSY
17201-0N050

1NDTV..NUJ10

 1
17201-0N051

1NDTV..NUJ10..LHD

 1
17271 - INSULATOR, TURBO, NO.1
17271-33070

1NDTV..NUJ10..LHD

 1
17272 - INSULATOR, TURBO, NO.2
17272-33010

1NDTV..NUJ10..LHD

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-33020

1NDTV..NUJ10..LHD

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-27020

1NDTV..NUJ10..LHD

 1
17293 - STAY, TURBOCHARGER
17293-33020

1NDTV..NUJ10..LHD

 1
17297 - STAY, TURBOCHARGER, NO.2
17297-33010

1NDTV..NUJ10..LHD

 1
17861F - CONNECTOR, INTAKE AIR
17861-33051

1NDTV..NUJ10..LHD

 1
17861-33050

1NDTV..NUJ10

 1
17861F - CONNECTOR, INTAKE AIR
17861-33051

1NDTV..NUJ10..LHD

 1
17861-33050

1NDTV..NUJ10

 1
17861G - GASKET, INTAKE AIR CONNECTOR
26171-33050

1NDTV..NUJ10..LHD

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-33070

1NDTV..NUJ10..LHD

*114=TOYOTA/*210/Y

 1
25051-33080

1NDTV..NUJ10

*114=TOYOTA/*211/Y

 1
25051-33080

1NDTV..NUJ10..LHD

*114=TOYOTA/*211/Y,EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)

 1
25591 - BRACKET, MANIFOLD SUPPORT
25592-33010

1NDTV..NUJ10..LHD

NO.2

 1
25591-33040

1NDTV..NUJ10..LHD

NO.1

 1
25591 - BRACKET, MANIFOLD SUPPORT
25592-33010

1NDTV..NUJ10..LHD

NO.2

 1
25591-33040

1NDTV..NUJ10..LHD

NO.1

 1
Common parts
90116-06048
90116-08260
90116-10140
90126-06026
90126-06033
90126-08052
90126-10033
90126-10044
90179-06319
90179-08119
90179-10070
90179-10094
90917-11037
91551-80825
91552-81025
91552-81070
91671-80620
91672-81025
91673-80620
94151-20641
94151-80800
94151-81041
Linked diagrams
1708
2501
2606
