NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

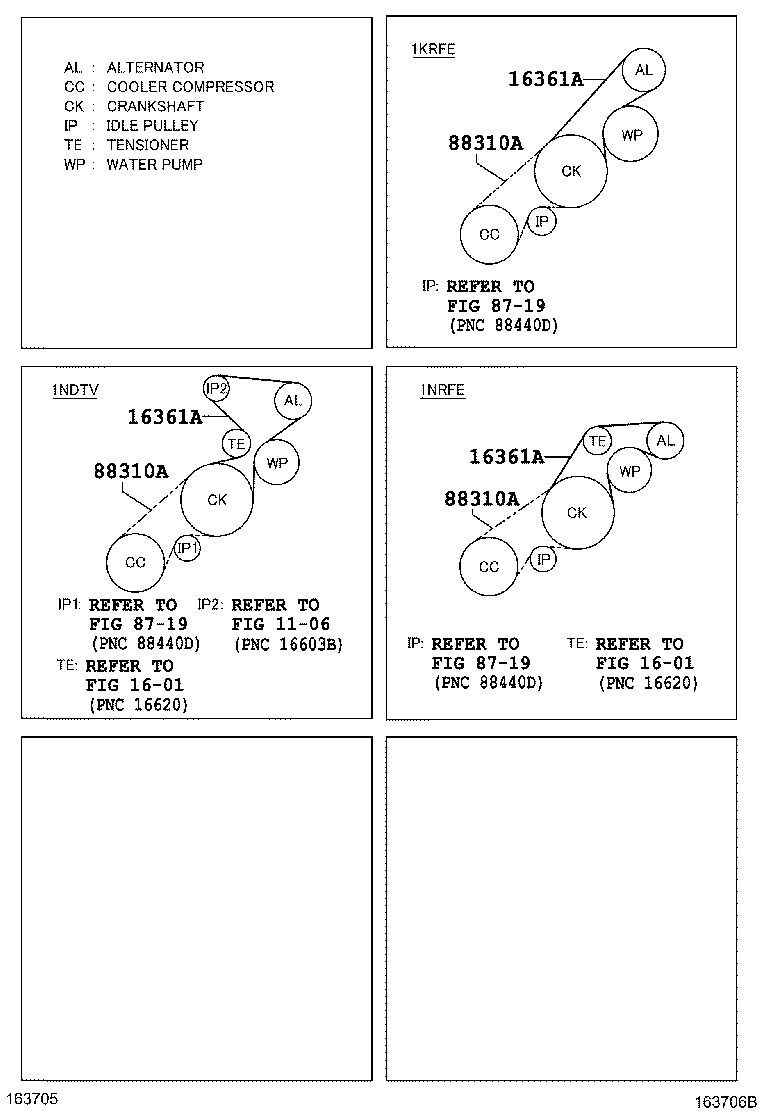

Click highlighted areas on diagram

diagram 1106 1601 1601 16361A 16361A 16361A 8719 8719 8719 88310A 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02672

1NDTV..NUJ10

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02672

1NDTV..NUJ10

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02672

1NDTV..NUJ10

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02669

KGJ10,NUJ10

L=840,FRONT AIR CONDITIONER-WITHOUT

 1
90916-02669

KGJ10,NUJ10

L=840

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02669

KGJ10,NUJ10

L=840,FRONT AIR CONDITIONER-WITHOUT

 1
90916-02669

KGJ10,NUJ10

L=840

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02669

KGJ10,NUJ10

L=840,FRONT AIR CONDITIONER-WITHOUT

 1
90916-02669

KGJ10,NUJ10

L=840

 1
Linked diagrams
1106
1601
8719
