NUJ10L-BGFNWW (2008)
Toyota Iq

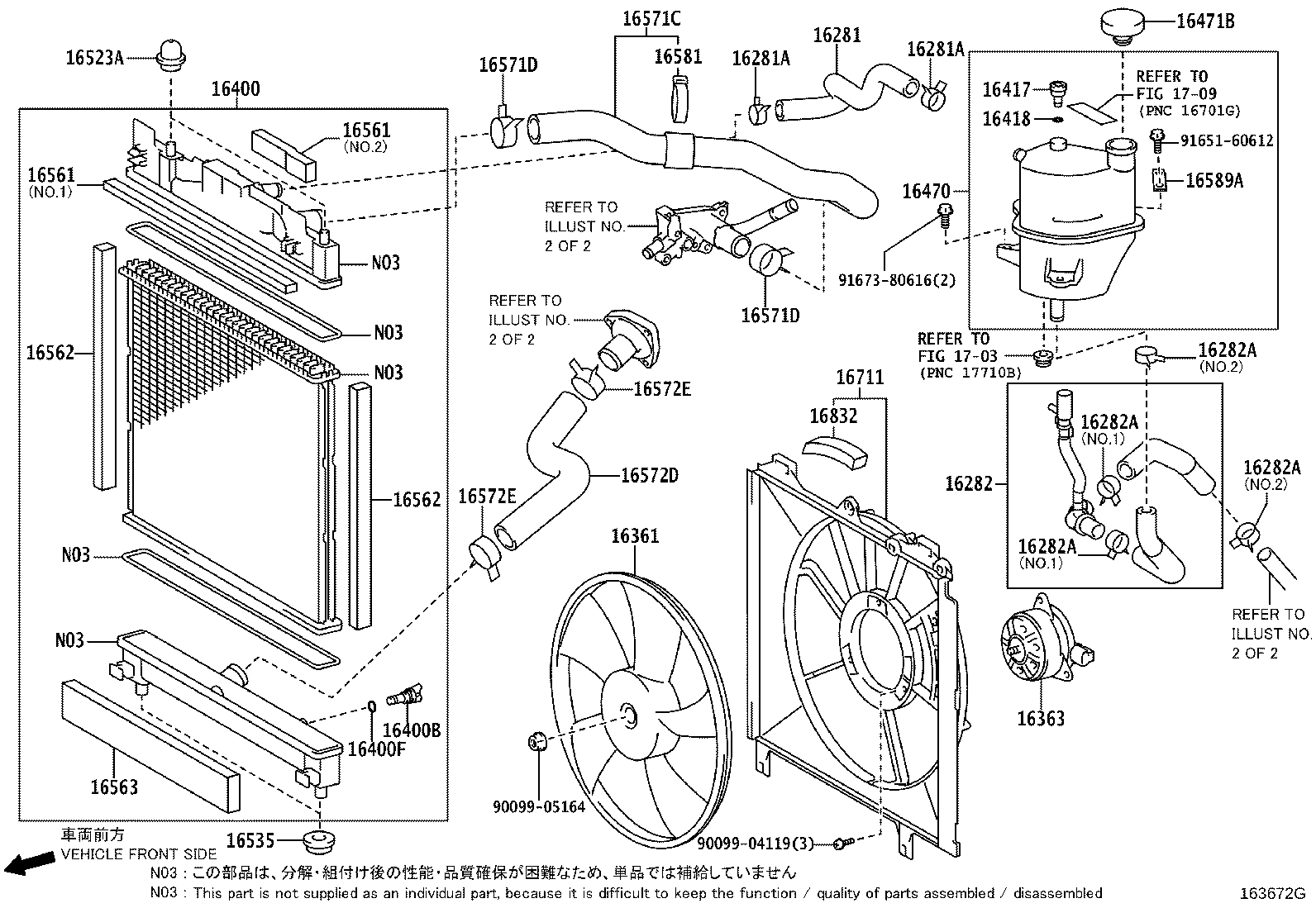

ILLUST NO. 1 OF 2(0811- )1NDTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33020 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 16281-33070 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
1NDTV..NUJ10 NO.1 |
2 | ||
| 96136-41501 |
1NDTV..NUJ10 NO.2 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
1NDTV..NUJ10 NO.1 |
2 | ||
| 96136-41501 |
1NDTV..NUJ10 NO.2 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16260-33060 |
1NDTV..NUJ10 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
1NDTV..NUJ10 NO.2 |
2 | ||
| 96132-51100 |
1NDTV..NUJ10 NO.1 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
1NDTV..NUJ10 NO.2 |
2 | ||
| 96132-51100 |
1NDTV..NUJ10 NO.1 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
1NDTV..NUJ10 NO.2 |
2 | ||
| 96132-51100 |
1NDTV..NUJ10 NO.1 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
1NDTV..NUJ10 NO.2 |
2 | ||
| 96132-51100 |
1NDTV..NUJ10 NO.1 |
2 | ||
| 16361 - FAN | ||||
| 16361-33030 |
1NDTV..NUJ10 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-33010 |
1NDTV..NUJ10 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-33100 |
1NDTV..NUJ10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1N#..NGJ10,NUJ10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1N#..NGJ10,NUJ10 |
1 | ||
| 16417 - COCK | ||||
| 16417-50240 |
1NDTV..NUJ10 |
1 | ||
| 16418 - PACKING | ||||
| 16492-21050 |
1NDTV..NUJ10..LHD |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-33020 |
1NDTV..NUJ10..LHD |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-51010 |
1NDTV..NUJ10..LHD |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
1N#..NGJ10,NUJ10 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1N#..NGJ10,NUJ10 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40030 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 16561-40050 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40030 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 16561-40050 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-40020 |
1NDTV..NUJ10..LHD |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-40020 |
1NDTV..NUJ10..LHD |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16561-40040 |
1NDTV..NUJ10..LHD |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-33070 |
1NDTV..NUJ10 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1N#..NGJ10,NUJ10 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1N#..NGJ10,NUJ10 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-33050 |
1NDTV..NUJ10 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1N#..NGJ10,NUJ10 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1N#..NGJ10,NUJ10 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-33090 |
1NDTV..NUJ10 |
1 | ||
| 16589A - BRACKET, RADIATOR HOSE CLAMP | ||||
| 16589-33020 |
1NDTV..NUJ10..LHD |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-33040 |
1NDTV..NUJ10 |
1 | ||
| 16832 - SEAL, FAN SHROUD | ||||
| 16832-33010 |
1NDTV..NUJ10 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91651-60612 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 1709 | ||||

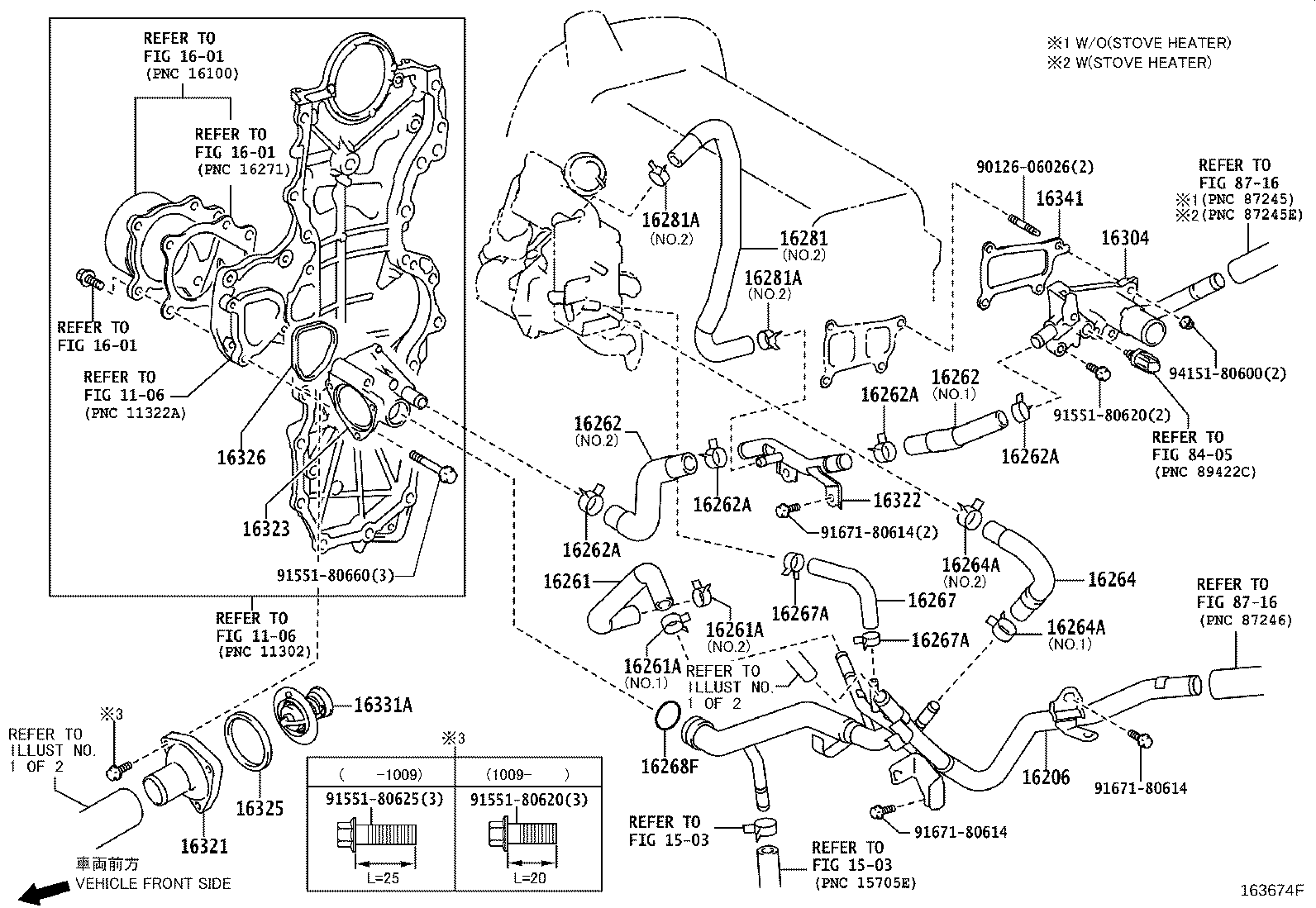

ILLUST NO. 2 OF 2(0811- )1NDTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33030 |
1NDTV..NUJ10 |
1 | ||
| 16206-33031 |
1NDTV..NUJ10 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NUJ10..LHD |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41901 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41901 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-33020 |
1NDTV..NUJ10..LHD NO.1 |
1 | ||
| 16263-33020 |
1NDTV..NUJ10..LHD NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-33020 |
1NDTV..NUJ10..LHD NO.1 |
1 | ||
| 16263-33020 |
1NDTV..NUJ10..LHD NO.2 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42101 |
1NDTV..NUJ10 |
4 | ||
| 96136-52201 |
1NDTV..NUJ10..LHD |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42101 |
1NDTV..NUJ10 |
4 | ||
| 96136-52201 |
1NDTV..NUJ10..LHD |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42101 |
1NDTV..NUJ10 |
4 | ||
| 96136-52201 |
1NDTV..NUJ10..LHD |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42101 |
1NDTV..NUJ10 |
4 | ||
| 96136-52201 |
1NDTV..NUJ10..LHD |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33030 |
1NDTV..NUJ10 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41701 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41701 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33030 |
1NDTV..NUJ10 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1N#..NGJ10,NUJ10 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1N#..NGJ10,NUJ10 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24021 |
1NDTV..NUJ10..LHD |
1 | ||
| 90301-20016 |
1NDTV..NUJ10 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33020 |
1NDTV..NUJ10 NO.1 |
1 | ||
| 16281-33070 |
1NDTV..NUJ10 NO.2 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
1NDTV..NUJ10 NO.1 |
2 | ||
| 96136-41501 |
1NDTV..NUJ10 NO.2 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
1NDTV..NUJ10 NO.1 |
2 | ||
| 96136-41501 |
1NDTV..NUJ10 NO.2 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-33020 |
1NDTV..NUJ10 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-33031 |
1NDTV..NUJ10 |
1 | ||
| 16321-33030 |
1NDTV..NUJ10 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-33020 |
1NDTV..NUJ10..LHD |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33020 |
1NDTV..NUJ10 |
1 | ||
| 16323-33021 |
1NDTV..NUJ10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NUJ10 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33020 |
1NDTV..NUJ10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03143 |
1NDTV..NUJ10 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-33010 |
1NDTV..NUJ10..LHD |
1 | ||
| Common parts | ||||
| 90126-06026 | ||||
| 91551-80620 | ||||
| 91551-80625 | ||||
| 91551-80660 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1503 | ||||
| 1601 | ||||
| 8716 | ||||
