NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1NDTV

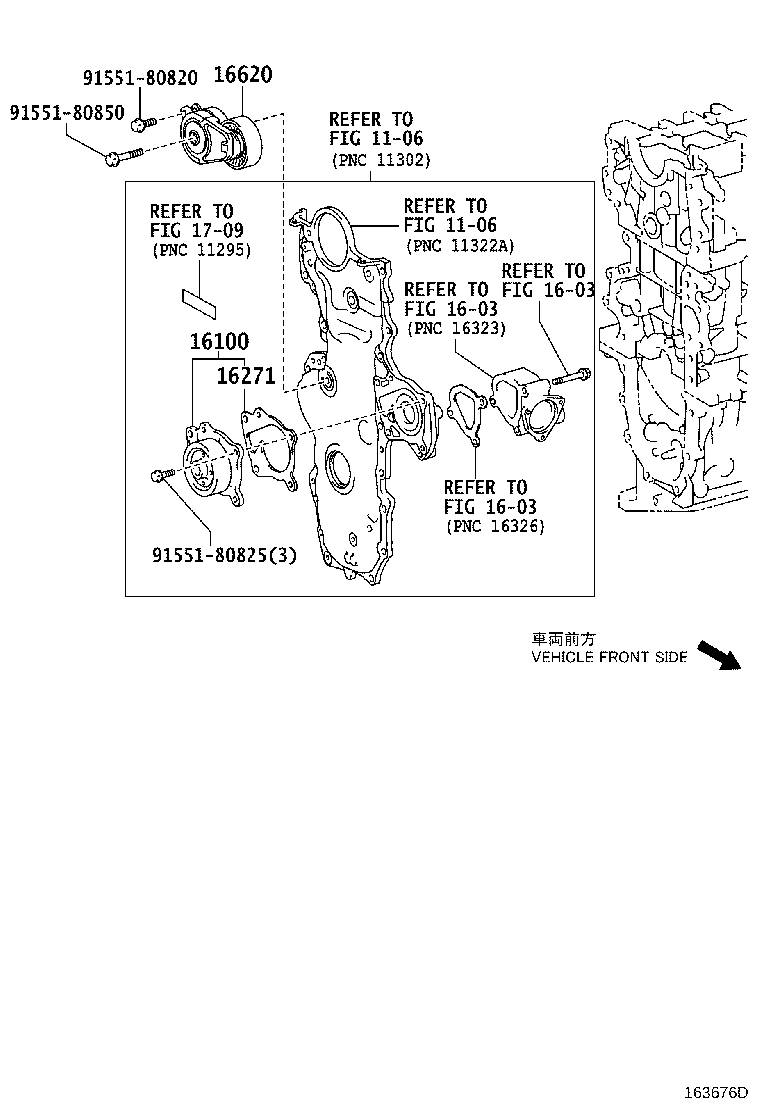

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39536 |
1NDTV..NUJ10 |
1 | ||
| 16100-39535 |
1NDTV..NUJ10 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-33040 |
1NDTV..NUJ10 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-33031 |
1NDTV..NUJ10 |
1 | ||
| 16620-33030 |
1NDTV..NUJ10 |
1 | ||
| Common parts | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91551-80850 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1603 | ||||
| 1709 | ||||
