NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV

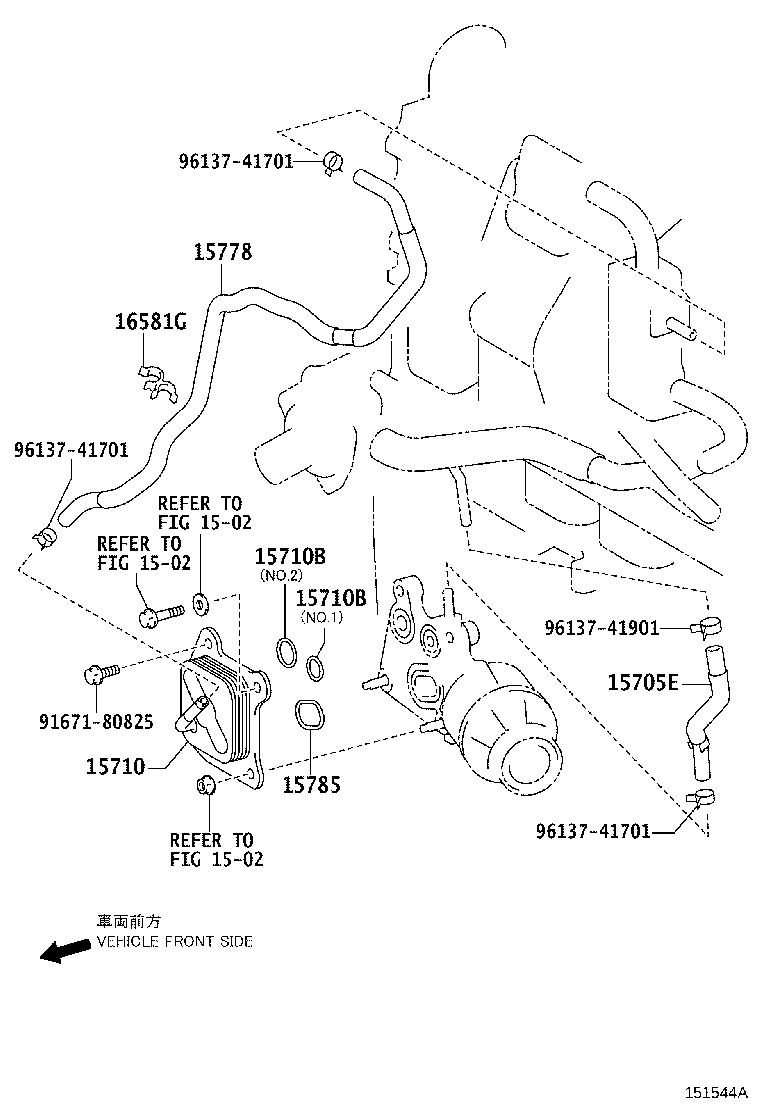

Click highlighted areas on diagram

diagram 1502 1502 1502 15705E 15710 15710B 15710B 15778 15785 16581G 9167180825 9613741701 9613741701 9613741701 9613741901
Part # Description Qty Price
15705E - HOSE SUB-ASSY, OIL COOLER
15705-33060

1NDTV..NUJ10

 1
15710 - COOLER ASSY, OIL
15710-33060

1NDTV..NUJ10

 1
15710B - RING, O(FOR OIL COOLER)
90301-15009

1NDTV..NUJ10

NO.1

 1
96723-35024

1NDTV..NUJ10

NO.2

 1
15710B - RING, O(FOR OIL COOLER)
90301-15009

1NDTV..NUJ10

NO.1

 1
96723-35024

1NDTV..NUJ10

NO.2

 1
15778 - HOSE, OIL COOLER, NO.2
15778-33020

1NDTV..NUJ10

 1
15785 - GASKET, OIL COOLER
15785-33020

1NDTV..NUJ10

 1
16581G - CLAMP, HOSE(FOR OIL COOLER HOSE)
16581-33080

1NDTV..NUJ10

 1
Common parts
91671-80825
96137-41701
96137-41901
Linked diagrams
1502
