NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV

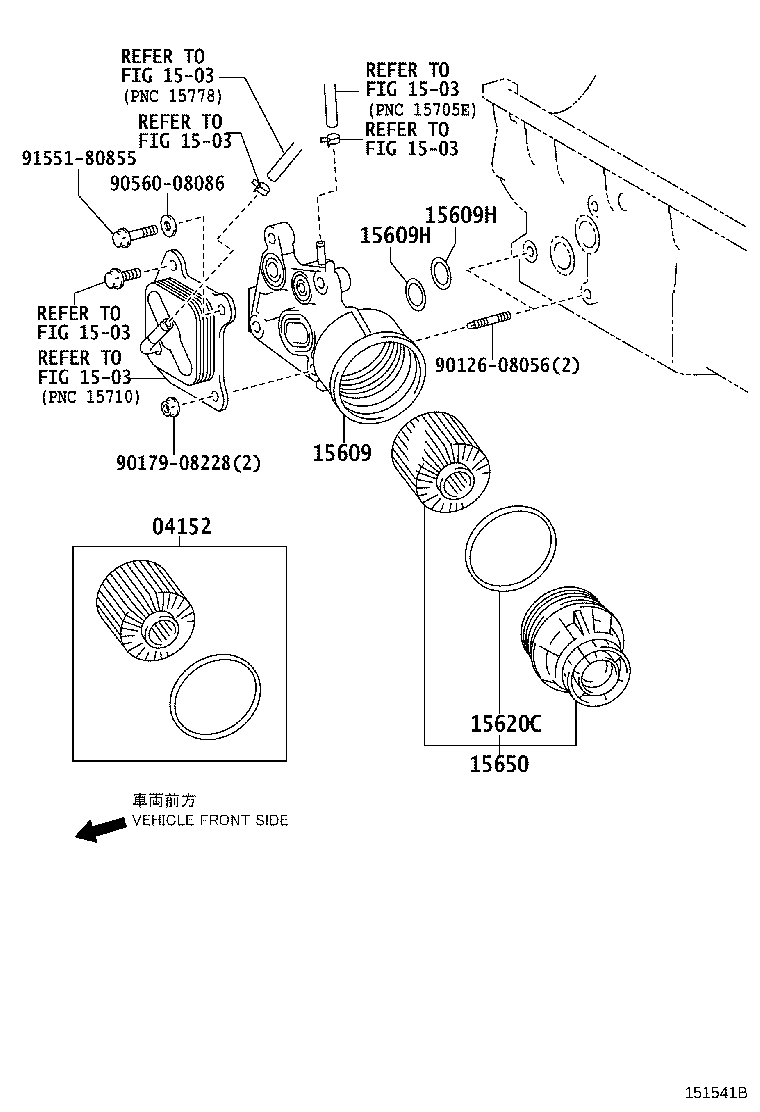

Click highlighted areas on diagram

diagram 04152 1503 1503 1503 1503 1503 1503 15609 15609H 15609H 15620C 15650 9012608056 9017908228 9056008086 9155180855
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-31110

1NDTV..NUJ10

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-33040

1NDTV..NUJ10..LHD

 1
15609H - RING, O(FOR OIL FILTER BRACKET)
90301-24018

1NDTV..NUJ10..LHD

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
90301-24018

1NDTV..NUJ10..LHD

 2
15620C - GASKET(FOR OIL FILTER CAP)
90301-79006

1NDTV..NUJ10

 1
15650 - CAP ASSY, OIL FILTER W/ELEMEMT
15650-33010

1NDTV..NUJ10..LHD

 1
Common parts
90126-08056
90179-08228
90560-08086
91551-80855
Linked diagrams
1503
