NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV

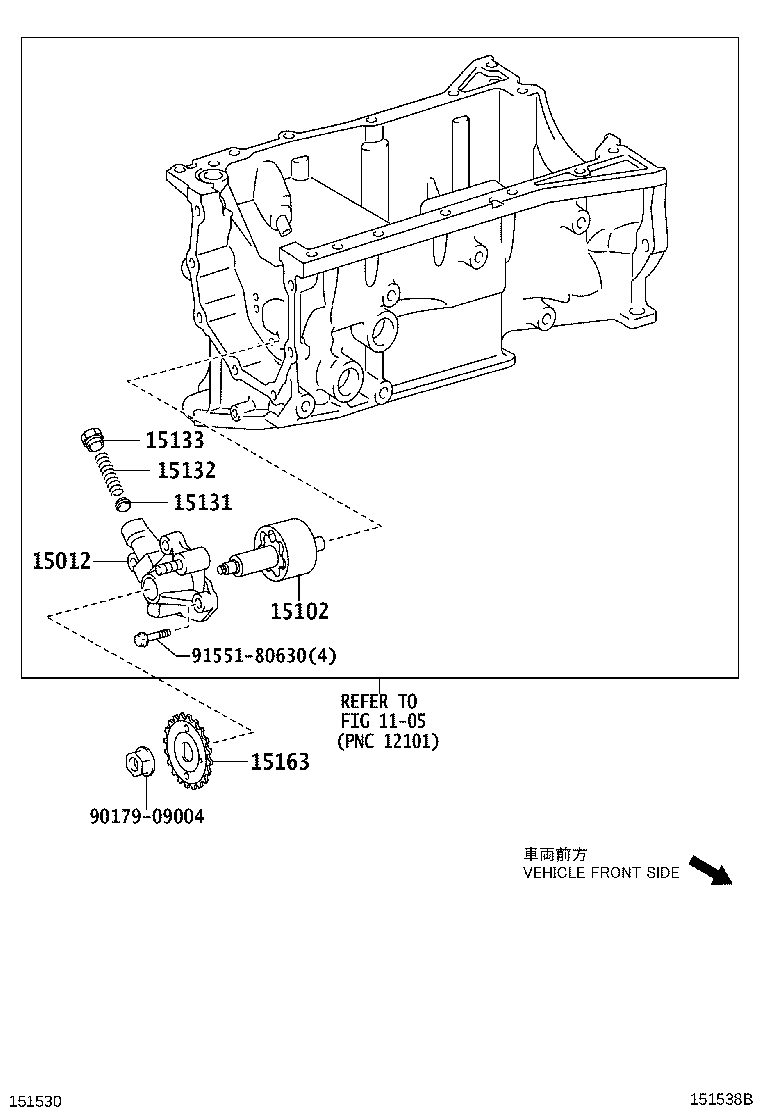

Click highlighted areas on diagram

diagram 15012 15102 15131 15132 15133 15163 9017909004 9155180630
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-33070

1NDTV..NUJ10..LHD

 1
15102 - ROTOR SET, OIL PUMP
15102-33060

1NDTV..NUJ10..LHD

 1
15131 - VALVE, OIL PUMP RELIEF
15131-38010

1NDTV..NUJ10..LHD

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-33020

1NDTV..NUJ10..LHD

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

1NDTV..NUJ10..LHD

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-33010

1NDTV..NUJ10..LHD

 1
Common parts
90179-09004
91551-80630
