NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV

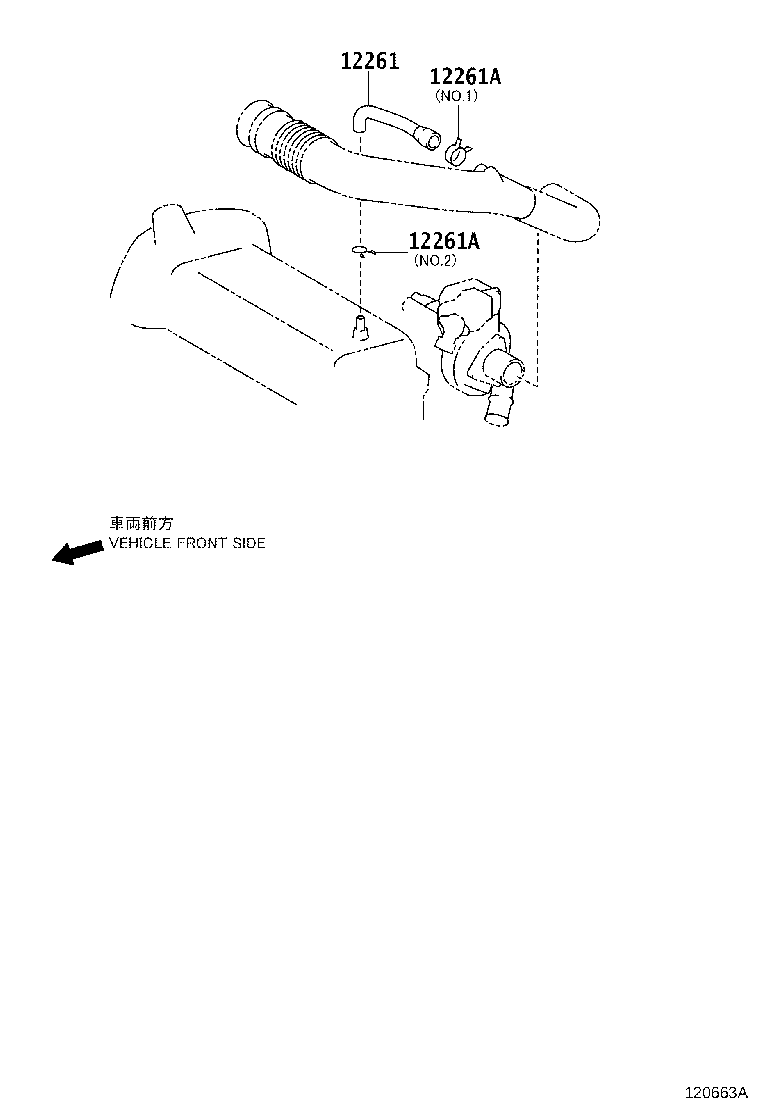

Click highlighted areas on diagram

diagram 12261 12261A 12261A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-33090

1NDTV..NUJ10

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21004

1NDTV..NUJ10

NO.2

 1
90466-30001

1NDTV..NUJ10

NO.1

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21004

1NDTV..NUJ10

NO.2

 1
90466-30001

1NDTV..NUJ10

NO.1

 1
