NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV

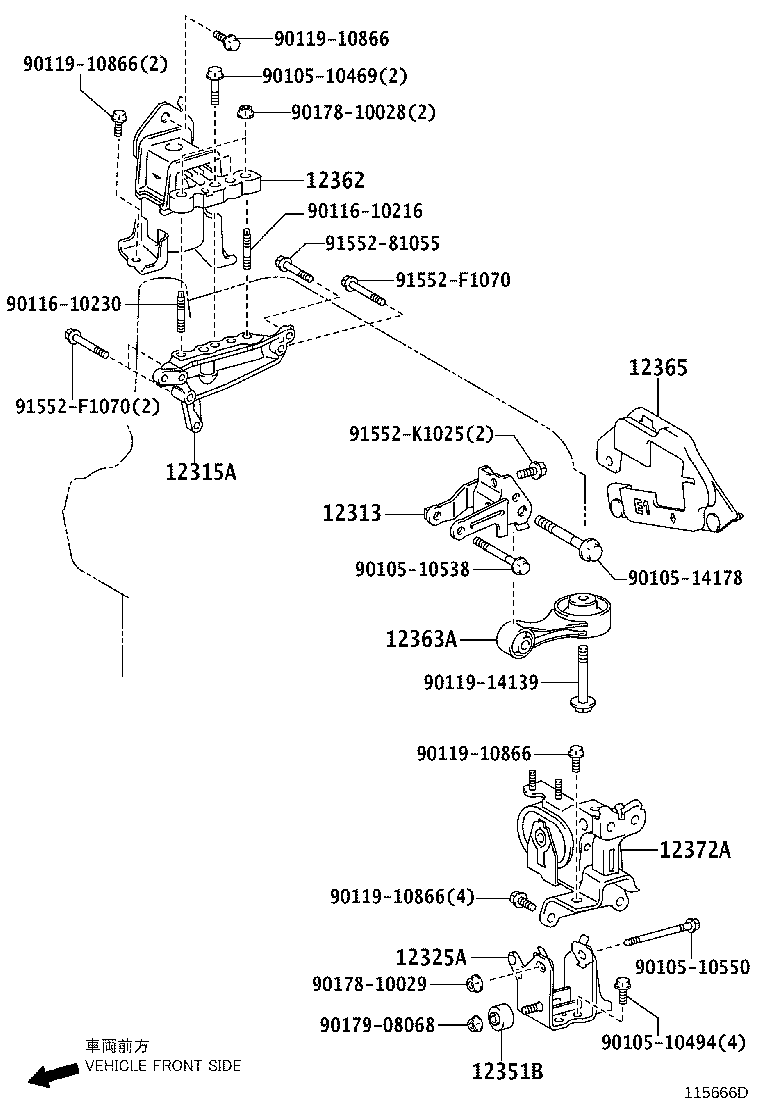

Click highlighted areas on diagram

diagram 12313 12315A 12325A 12351B 12362 12363A 12365 12372A 9010510469 9010510494 9010510538 9010510550 9010514178 9011610216 9011610230 9011910866 9011910866 9011910866 9011910866 9011914139 9017810028 9017810029 9017908068 9155281055 91552F1070 91552F1070 91552K1025
Part # Description Qty Price
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-33020

1NDTV..NUJ10

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-33070

1NDTV..NUJ10

 1
12315-33071

1NDTV..NUJ10

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-33041

1NDTV..NUJ10

 1
12325-33042

1NDTV..NUJ10

 1
12351B - DAMPER, ENGINE MOUNTING
12351-33040

1NDTV..NUJ10..LHD

 1
12351-37040

1NDTV..NUJ10

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-33121

1NDTV..NUJ10..LHD

 1
12305-33120

1NDTV..NUJ10

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-33020

1NDTV..NUJ10

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40020

1N#..NGJ10,NUJ10..LHD

COLD AREA SPEC(S RANK)

 1
12365-40020

1N#..NGJ10,NUJ10..LHD

COLD AREA SPEC(A RANK)

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-33070

1NDTV..NUJ10

 1
12372-33071

1NDTV..NUJ10

 1
Common parts
90105-10469
90105-10494
90105-10538
90105-10550
90105-14178
90116-10216
90116-10230
90119-10866
90119-14139
90178-10028
90178-10029
90179-08068
91552-81055
91552-F1070
91552-K1025
