NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811-1012)1NDTV

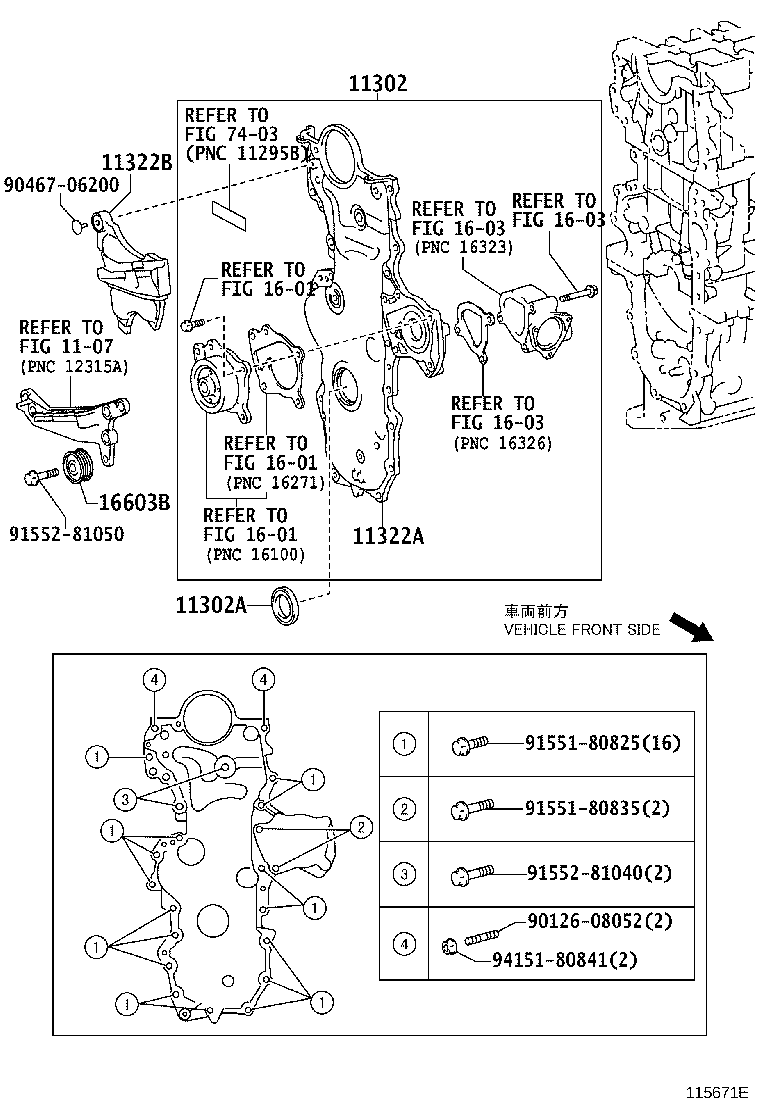

Click highlighted areas on diagram

diagram 1107 11302 11302A 11322A 11322B 1601 1601 1601 1603 1603 1603 16603B 7403 9012608052 9046706200 9155180825 9155180835 9155281040 9155281050 9415180841
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-33020

1NDTV..NUJ10

 1
11310-33022

1NDTV..NUJ10

 1
11310-33021

1NDTV..NUJ10

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-40033

1NDTV..NUJ10

 1
11322A - COVER, TIMING BELT, NO.1
11321-33030

1NDTV..NUJ10..LHD

 1
11322B - COVER, TIMING BELT, NO.2
11322-33030

1NDTV..NUJ10..LHD

 1
11322-33031

1NDTV..NUJ10

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-33010

1NDTV..NUJ10..LHD

 1
Common parts
90126-08052
90467-06200
91551-80825
91551-80835
91552-81040
91552-81050
94151-80841
Linked diagrams
1107
1601
1603
7403

(1012- )1NDTV

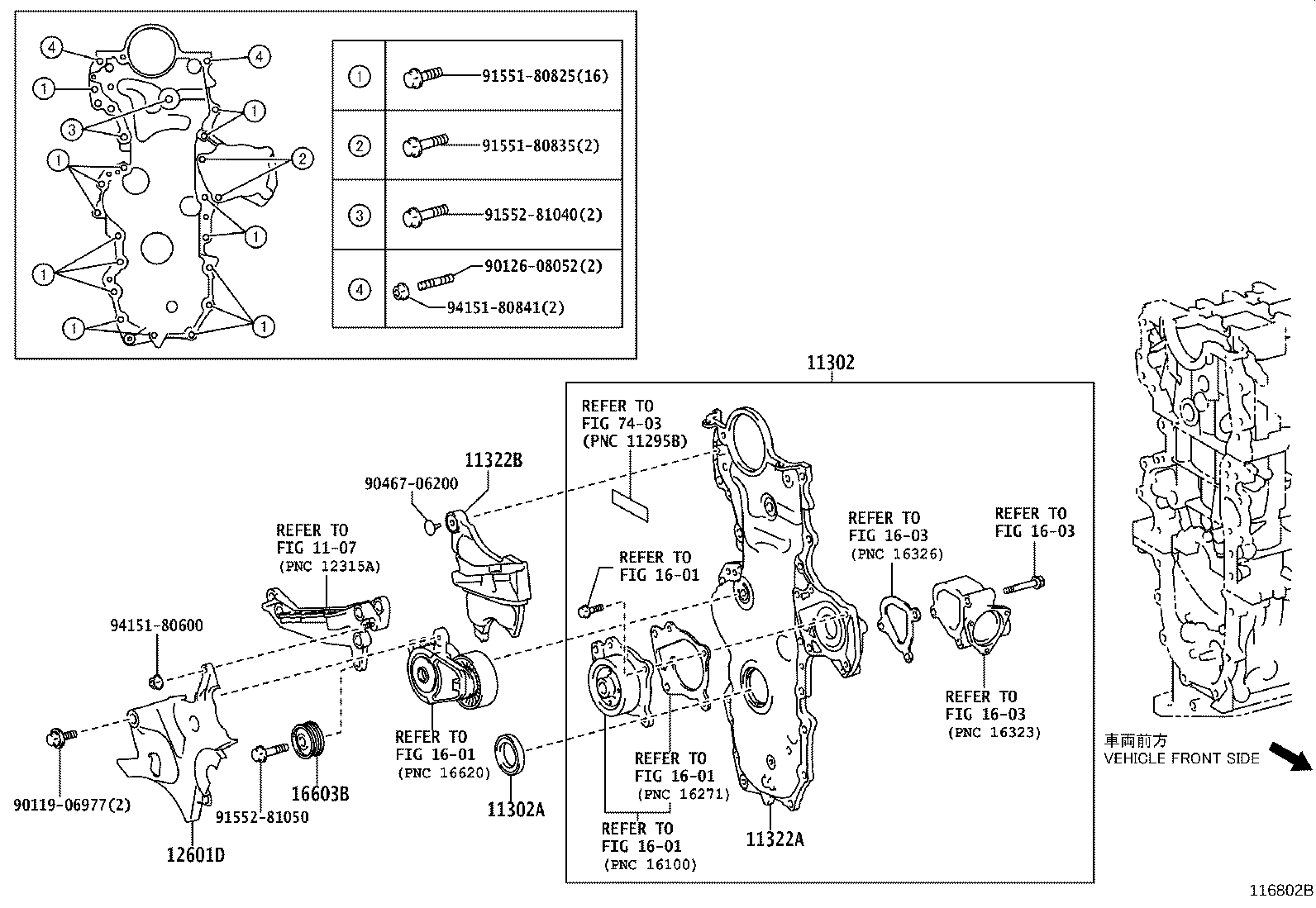

Click highlighted areas on diagram

diagram 1107 11302 11302A 11322A 11322B 12601D 1601 1601 1601 1601 1603 1603 1603 16603B 7403 9011906977 9012608052 9046706200 9155180825 9155180835 9155281040 9155281050 9415180600 9415180841
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-33020

1NDTV..NUJ10

 1
11310-33022

1NDTV..NUJ10

 1
11310-33021

1NDTV..NUJ10

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-40033

1NDTV..NUJ10

 1
11322A - COVER, TIMING BELT, NO.1
11321-33030

1NDTV..NUJ10..LHD

 1
11322B - COVER, TIMING BELT, NO.2
11322-33030

1NDTV..NUJ10..LHD

 1
11322-33031

1NDTV..NUJ10

 1
12601D - COVER, ENGINE, NO.1
12614-33010

1NDTV..NUJ10

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-33010

1NDTV..NUJ10..LHD

 1
Common parts
90119-06977
90126-08052
90467-06200
91551-80825
91551-80835
91552-81040
91552-81050
94151-80600
94151-80841
Linked diagrams
1107
1601
1603
7403
