NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

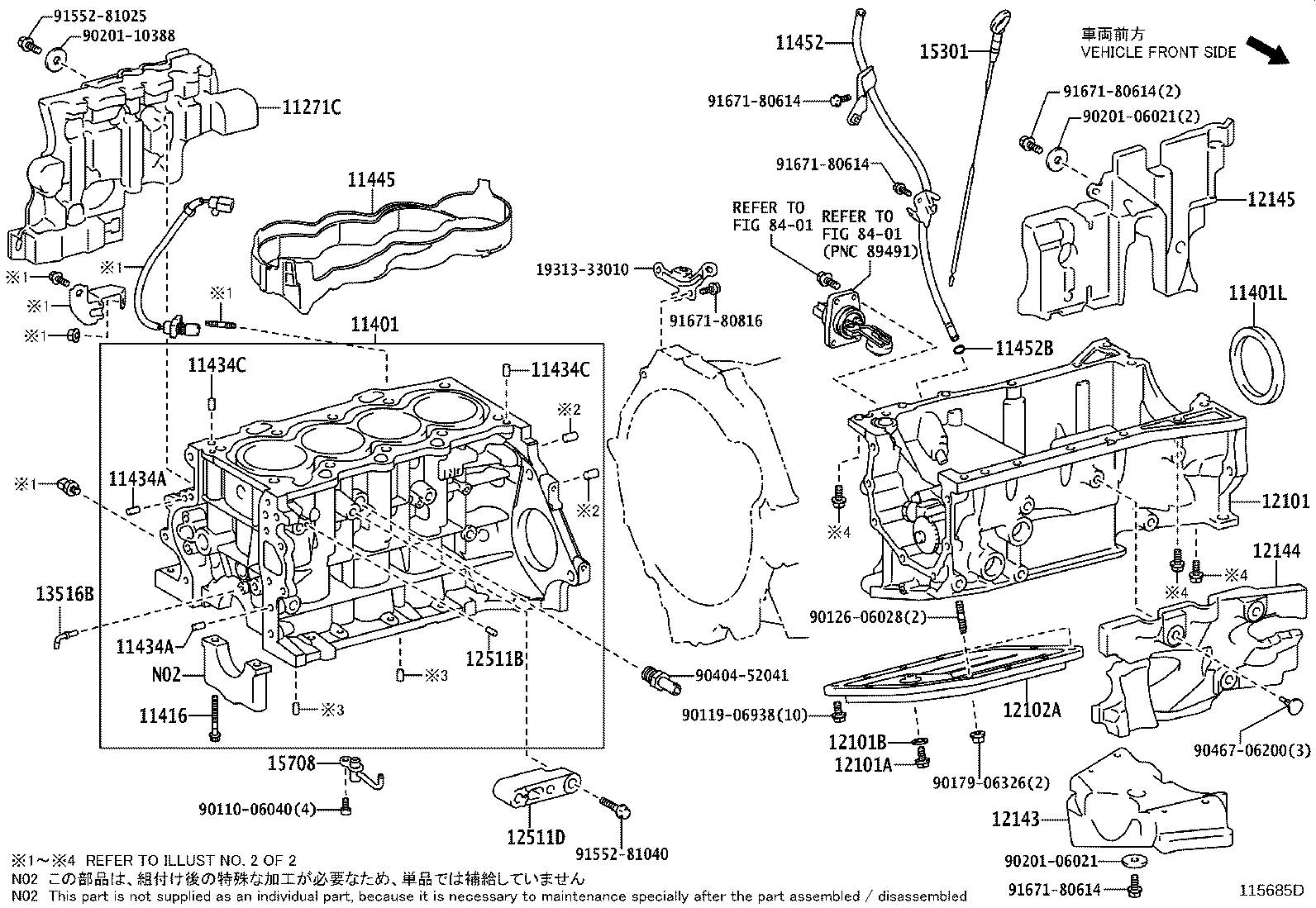

ILLUST NO. 1 OF 2(0811- )1NDTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271C - COVER, CYLIVDER BLOCK SIDE | ||||
| 11271-33041 |
1NDTV..NUJ10 |
1 | ||
| 11271-33040 |
1NDTV..NUJ10..LHD |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-39175 |
1NDTV..NUJ10 |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-75017 |
1NDTV..NUJ10 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02154 |
1NDTV..NUJ10 |
10 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
1NDTV..NUJ10 L=18,OD=8 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
1NDTV..NUJ10 L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
1NDTV..NUJ10..LHD L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
1NDTV..NUJ10..LHD L=18,OD=8 |
2 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-33010 |
1NDTV..NUJ10 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-33070 |
1NDTV..NUJ10 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1NDTV..NUJ10 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-33050 |
1NDTV..NUJ10 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1NDTV..NUJ10 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1N#..NGJ10,NUJ10 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-33020 |
1NDTV..NUJ10 |
1 | ||
| 12143 - COVER, OIL PAN | ||||
| 12143-33040 |
1NDTV..NUJ10..LHD |
1 | ||
| 12144 - SILENCER, OIL PAN COVER | ||||
| 12144-33020 |
1NDTV..NUJ10..LHD |
1 | ||
| 12145 - SILENCER, OIL PAN COVER, NO.2 | ||||
| 12145-33020 |
1NDTV..NUJ10..LHD |
1 | ||
| 12511B - PIN, RING(FOR ALTERNATOR BRACKET) | ||||
| 90250-04097 |
1NDTV..NUJ10..LHD |
1 | ||
| 12511D - BRACKET, ALTERNATOR | ||||
| 12511-33030 |
1NDTV..NUJ10..LHD |
1 | ||
| 13516B - JET, OIL | ||||
| 13516-33030 |
1NDTV..NUJ10 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-33060 |
1NDTV..NUJ10 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-33020 |
1NDTV..NUJ10 |
4 | ||
| Common parts | ||||
| 19313-33010 | ||||
| 90110-06040 | ||||
| 90119-06938 | ||||
| 90126-06028 | ||||
| 90179-06326 | ||||
| 90201-06021 | ||||
| 90201-10388 | ||||
| 90404-52041 | ||||
| 90467-06200 | ||||
| 91552-81025 | ||||
| 91552-81040 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||

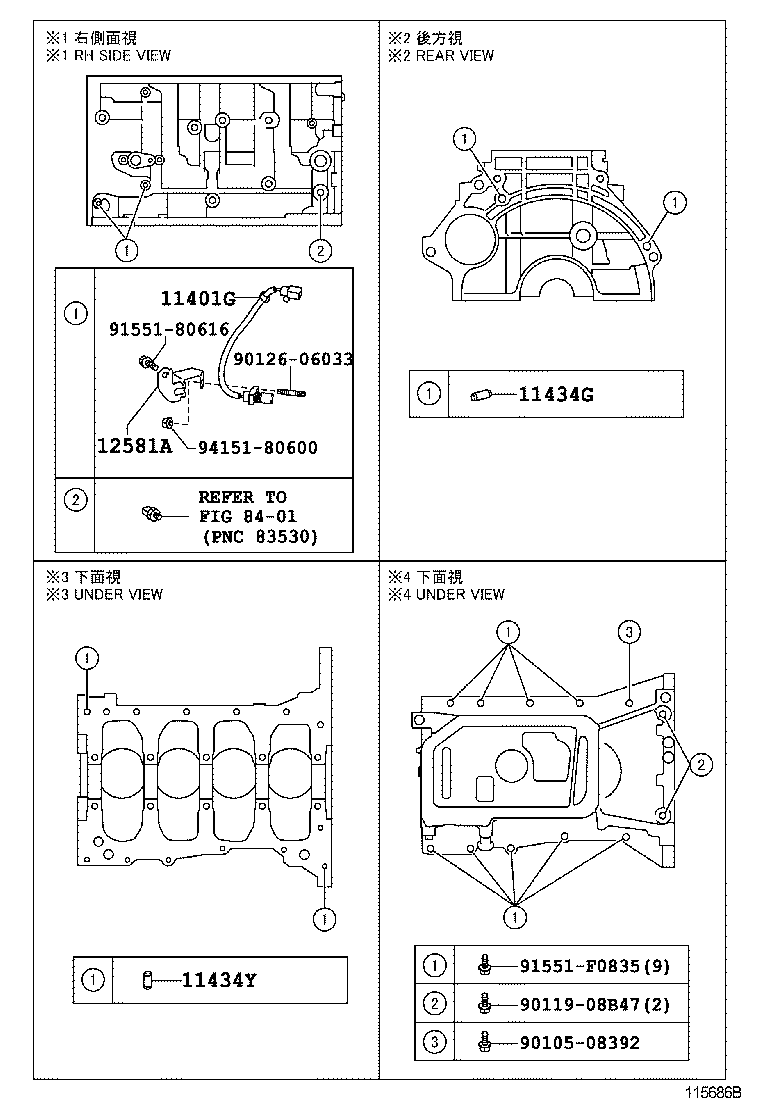

ILLUST NO. 2 OF 2(0811- )1NDTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05075 |
1NDTV..NUJ10..LHD |
1 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10113 |
1NDTV..NUJ10..LHD |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-08120 |
1NDTV..NUJ10 |
2 | ||
| 12581A - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-33020 |
1NDTV..NUJ10..LHD |
1 | ||
| Common parts | ||||
| 90105-08392 | ||||
| 90119-08B47 | ||||
| 90126-06033 | ||||
| 91551-80616 | ||||
| 91551-F0835 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
