NGJ10R-BGXNGW (2009)

Toyota Iq

Production May 2009 - May 2014
Engine 1NRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0905- )1NRFE..CVFC ; (1205- )1NRFE..R

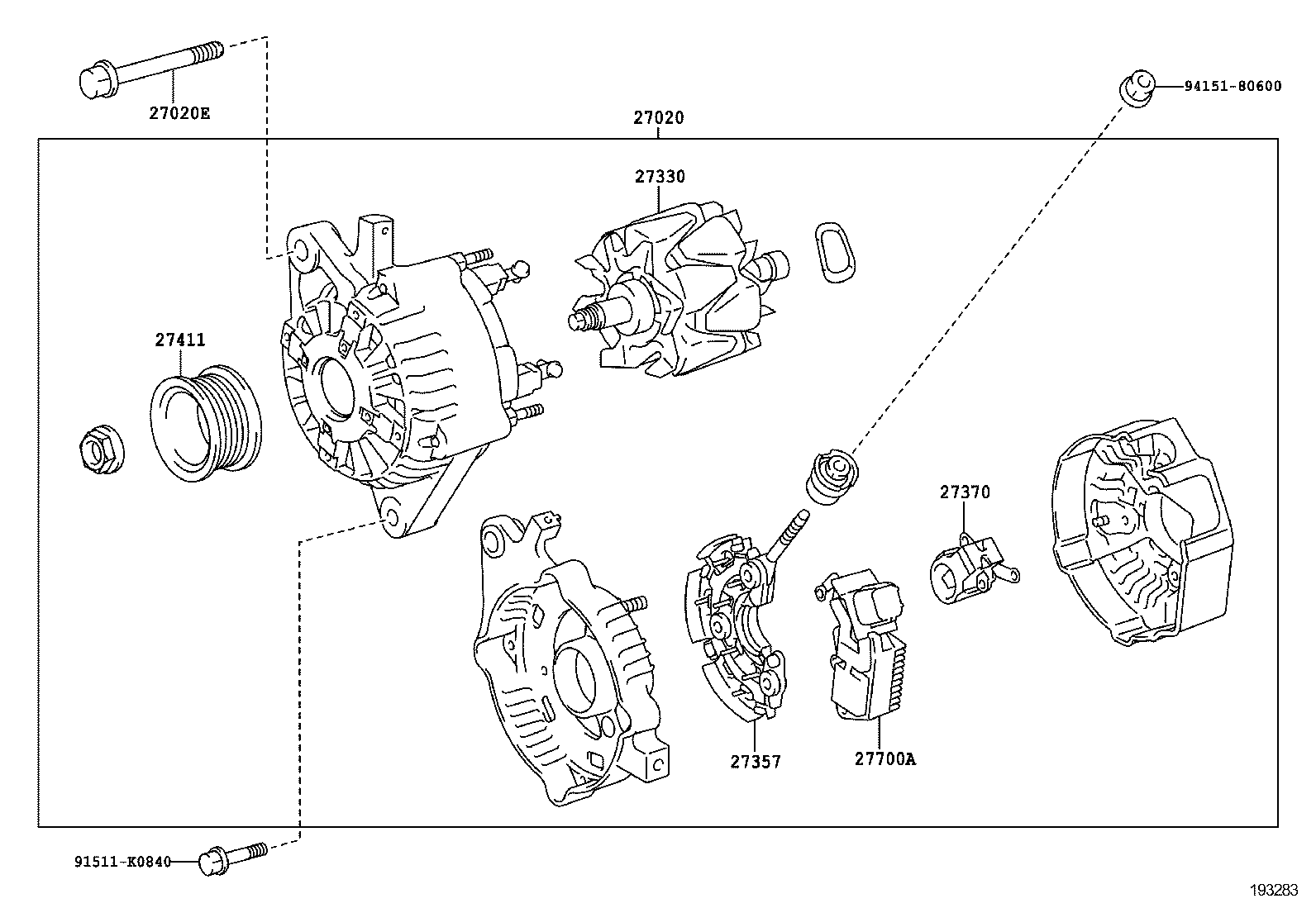

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27330 27357 27370 27411 27700A 91511K0840 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-47040

1NRFE..NGJ10..R;1NRFE..NGJ10..CVFC

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1NRFE..NGJ10

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22200

1NRFE..NGJ10..R;1KRFE,1NRFE..KGJ10,NGJ10..5F,CVFC

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-23120

1NRFE..NGJ10..R;1KRFE,1NRFE..KGJ10,NGJ10..5F,CVFC

 1
27411 - PULLEY, ALTERNATOR
27411-47160

1NRFE..NGJ10..R;1NRFE..NGJ10..CVFC

 1
27700A - REGULATOR ASSY, GENERATOR
27700-40040

1NRFE..NGJ10..R;1KRFE,1NRFE..KGJ10,NGJ10..5F,CVFC

 1
Common parts
91511-K0840
94151-80600
