NGJ10R-BGXNGW (2009)

Toyota Iq

Production May 2009 - May 2014
Engine 1NRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0905- )1NRFE

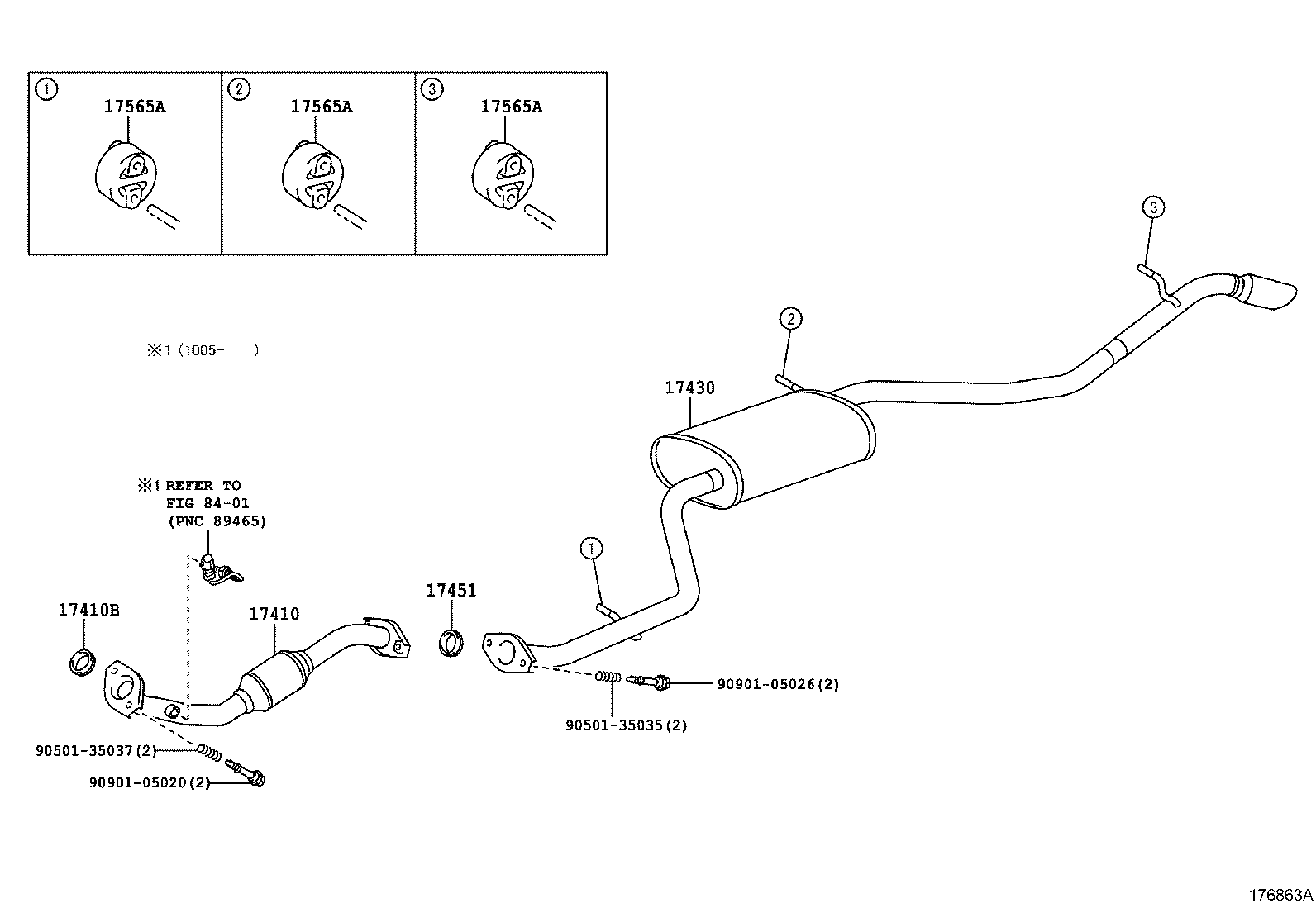

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17565A 17565A 17565A 8401 9050135035 9050135037 9090105020 9090105026
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-47080

1NRFE..NGJ10

*114=TOYOTA/CE5/Y

 1
17410-47190

1NRFE..NGJ10

*114=TOYOTA/CG6/Y

 1
17410B - GASKET, EXHAUST PIPE
17451-21080

1NRFE..NGJ10

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-47070

1NRFE..NGJ10

 1
17430-47130

1NRFE..NGJ10

 1
17451 - GASKET, EXHAUST PIPE
17451-23041

1NRFE..NGJ10

 1
17451-23042

1NRFE..NGJ10

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 3
17565-47010

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 3
17565-47010

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 3
17565-47010

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 3
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
Linked diagrams
8401
