KGJ10R-BGMNGW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )5F

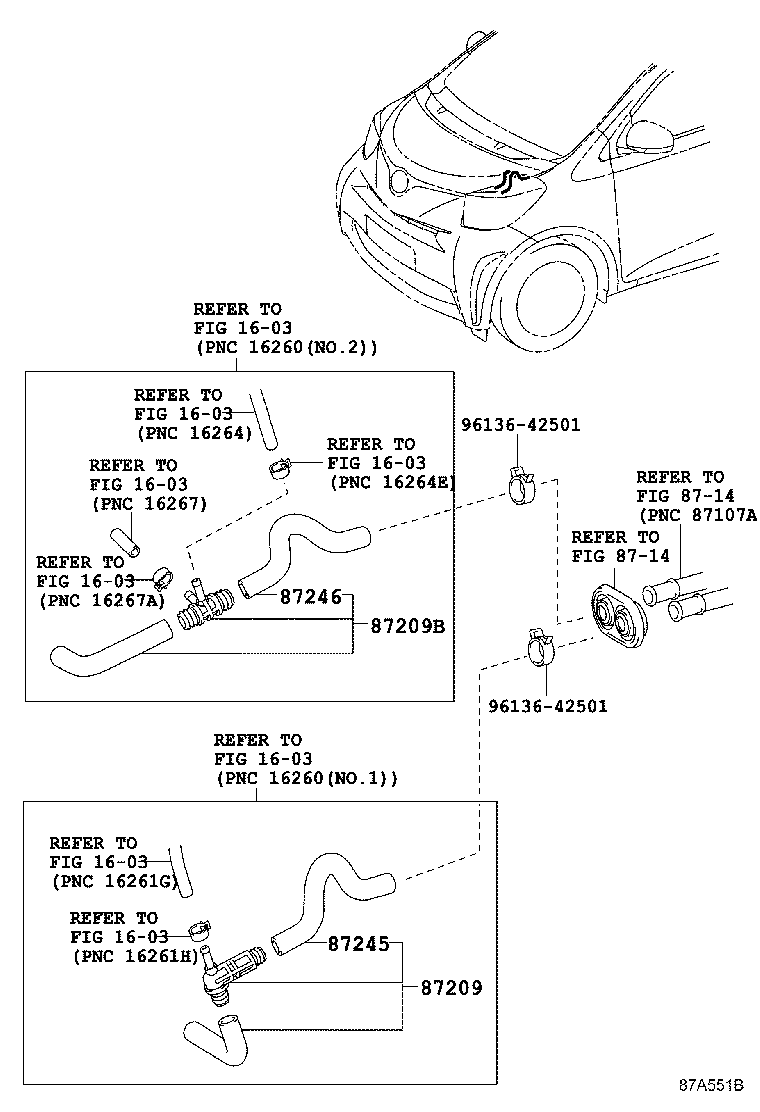

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1603 8714 8714 87209 87209B 87245 87246 9613642501 9613642501
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-74010

KGJ10..5F

 1
87209B - HOSE SUB-ASSY, WATER, B
87209-74020

KGJ10..5F

 1
87245 - HOSE, HEATER WATER, INLET
87245-74120

KGJ10

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-74130

KGJ10

 1
Common parts
96136-42501
Linked diagrams
1603
8714
