Toyota Iq KGJ10 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
EU
IQ
KGJ10R-BGMNGW (2008)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

KGJ10R-BGMNGW (2008)

Toyota Iq

Production Nov 2008 - May 2012

Engine 1KRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0811- )RHD

Click highlighted areas on diagram

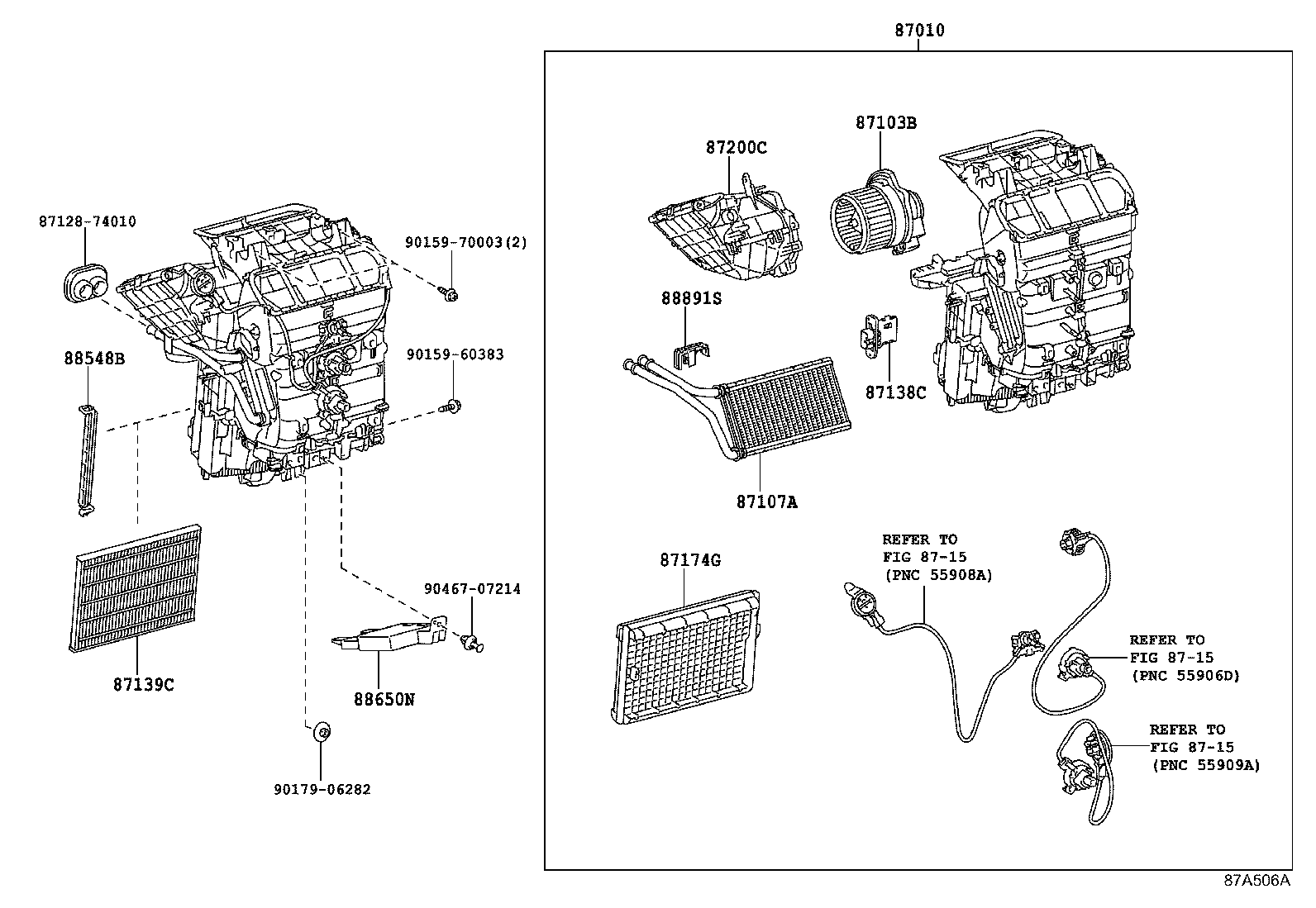

W/O(AIR CONDITIONER)

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-74010	KGJ10,NGJ10,NUJ10..RHD	11/2008 - 05/2012	1
87010-74030	KGJ10,NUJ10..RHD;NGJ10..RHD..6F..N FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2013	1
87010-74110	KGJ10,NUJ10..RHD FRONT AIR CONDITIONER-WITHOUT	11/2008 - 05/2012	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-74010	KGJ10,NGJ10,NUJ10..RHD	11/2008 - 09/2010	1
87103-74020	KGJ10,NGJ10,NUJ10..RHD FRONT AIR CONDITIONER-AUTO	11/2008 - 12/2010	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
87138C - RESISTOR, BLOWER
87138-74010	KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC	11/2008 - 05/2014	1
87139C - FILTER, CLEAN AIR
88568-74010	KGJ10,NGJ10,NUJ10	11/2008 - 11/2009	1
87174G - GUIDE, AIR HEATER
87174-74010	NUJ10..RHD;KGJ10..5F..N;KGJ10..LHD..R;KGJ10..LHD..CVFC FRONT AIR CONDITIONER-WITHOUT	11/2008 - 05/2014	1
87174-74010	KGJ10..RHD..R;KGJ10..RHD..CVFC FRONT AIR CONDITIONER-WITHOUT	11/2008 - 05/2013	1
87200C - ACCESSORY ASSY, HEATER
87200-74010	KGJ10,NGJ10,NUJ10..RHD	11/2008 - 05/2012	1
87200-74020	KGJ10,NUJ10..RHD;NGJ10..RHD..6F..N FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2013	1
88548B - CASE, AIR FILTER
88548-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-74010	KGJ10,NUJ10 FRONT AIR CONDITIONER-WITHOUT	11/2008 - 04/2009	1
88650-74010	KGJ10,NUJ10	11/2008 - 04/2009	1
88650-74030	KGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO	11/2008 - 04/2009	1
88650-74031	KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO	05/2009 - 10/2010	1
88650-74011	KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-WITHOUT	05/2009 - 09/2010	1
88650-74011	KGJ10,NGJ10,NUJ10	05/2009 - 09/2010	1
88891S - COVER, COOLER, NO.1
87237-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
Common parts
87128-74010
90159-60383
90159-70003
90179-06282
90467-07214
Linked diagrams
8715

(0811- )RHD

Click highlighted areas on diagram

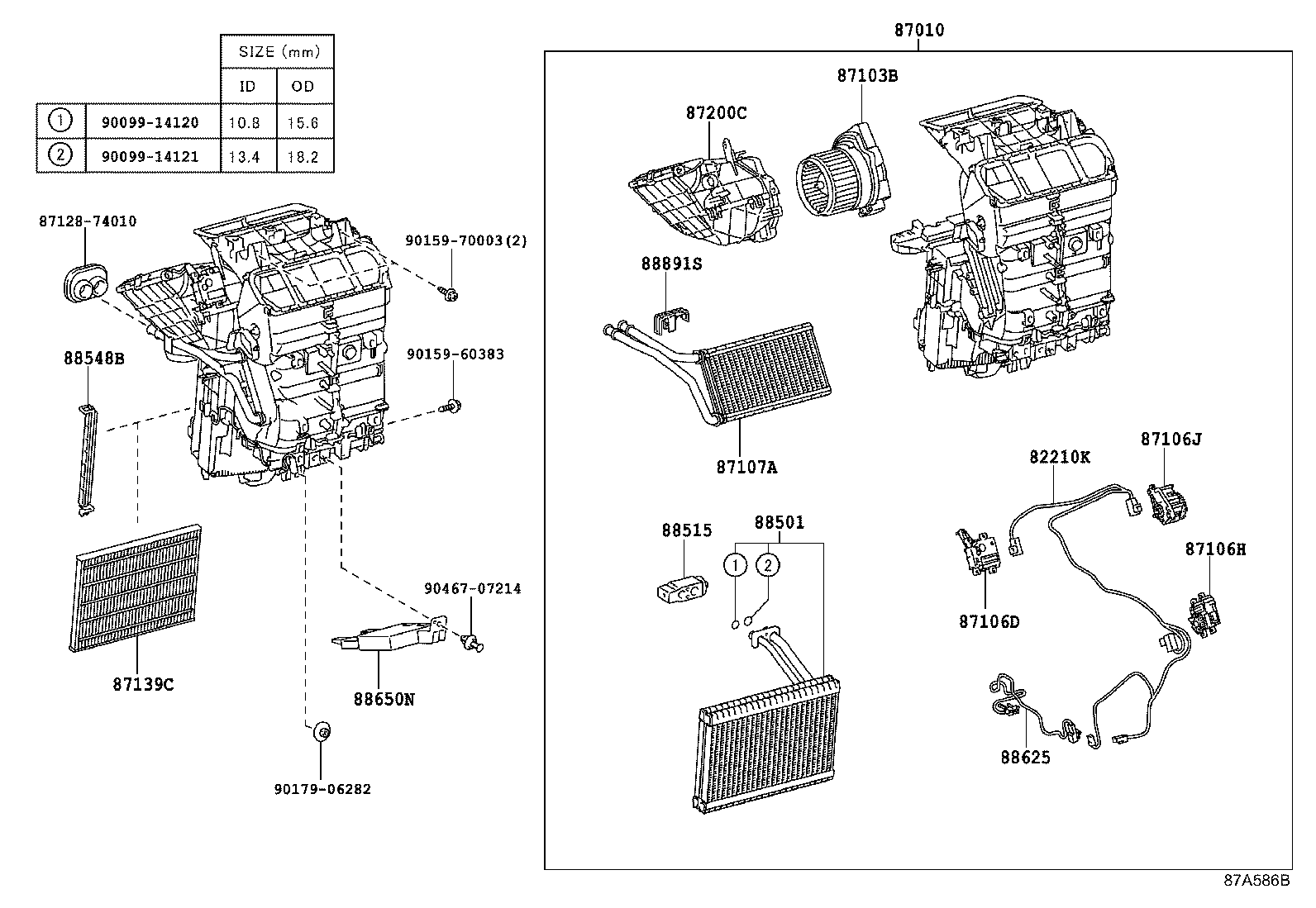

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-74010	KGJ10,NUJ10..RHD;NGJ10..RHD..6F..N FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2013	1
87010 - UNIT ASSY, AIR CONDITIONER
87010-74010	KGJ10,NGJ10,NUJ10..RHD	11/2008 - 05/2012	1
87010-74030	KGJ10,NUJ10..RHD;NGJ10..RHD..6F..N FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2013	1
87010-74110	KGJ10,NUJ10..RHD FRONT AIR CONDITIONER-WITHOUT	11/2008 - 05/2012	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-74010	KGJ10,NGJ10,NUJ10..RHD	11/2008 - 09/2010	1
87103-74020	KGJ10,NGJ10,NUJ10..RHD FRONT AIR CONDITIONER-AUTO	11/2008 - 12/2010	1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-74030	KGJ10,NUJ10..RHD;NGJ10..RHD..6F..N FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2013	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-74010	KGJ10,NGJ10..LHD..R;KGJ10,NGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2014	1
87106-74010	KGJ10..RHD..R;KGJ10..RHD..CVFC FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2013	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-74020	KGJ10,NGJ10..LHD..R;KGJ10,NGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2014	1
87106-74020	KGJ10..RHD..R;KGJ10..RHD..CVFC FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2013	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
87139C - FILTER, CLEAN AIR
88568-74010	KGJ10,NGJ10,NUJ10	11/2008 - 11/2009	1
87200C - ACCESSORY ASSY, HEATER
87200-74010	KGJ10,NGJ10,NUJ10..RHD	11/2008 - 05/2012	1
87200-74020	KGJ10,NUJ10..RHD;NGJ10..RHD..6F..N FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2013	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-74010	KGJ10,NGJ10,NUJ10	11/2008 - 02/2012	1
88515 - VALVE, COOLER EXPANSION
88515-74010	KGJ10,NGJ10,NUJ10	11/2008 - 10/2010	1
88548B - CASE, AIR FILTER
88548-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
88625 - THERMISTOR, COOLER, NO.1
88620-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-74010	KGJ10,NUJ10 FRONT AIR CONDITIONER-WITHOUT	11/2008 - 04/2009	1
88650-74010	KGJ10,NUJ10	11/2008 - 04/2009	1
88650-74030	KGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO	11/2008 - 04/2009	1
88650-74031	KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO	05/2009 - 10/2010	1
88650-74011	KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-WITHOUT	05/2009 - 09/2010	1
88650-74011	KGJ10,NGJ10,NUJ10	05/2009 - 09/2010	1
88891S - COVER, COOLER, NO.1
87237-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
Common parts
87128-74010
90099-14120
90099-14121
90159-60383
90159-70003
90179-06282
90467-07214

(0811- )RHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-74010	KGJ10,NGJ10,NUJ10..RHD	11/2008 - 05/2012	1
87010-74030	KGJ10,NUJ10..RHD;NGJ10..RHD..6F..N FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2013	1
87010-74110	KGJ10,NUJ10..RHD FRONT AIR CONDITIONER-WITHOUT	11/2008 - 05/2012	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-74010	KGJ10,NGJ10,NUJ10..RHD	11/2008 - 09/2010	1
87103-74020	KGJ10,NGJ10,NUJ10..RHD FRONT AIR CONDITIONER-AUTO	11/2008 - 12/2010	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
87138C - RESISTOR, BLOWER
87138-74010	KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC	11/2008 - 05/2014	1
87139C - FILTER, CLEAN AIR
88568-74010	KGJ10,NGJ10,NUJ10	11/2008 - 11/2009	1
87200C - ACCESSORY ASSY, HEATER
87200-74010	KGJ10,NGJ10,NUJ10..RHD	11/2008 - 05/2012	1
87200-74020	KGJ10,NUJ10..RHD;NGJ10..RHD..6F..N FRONT AIR CONDITIONER-AUTO	11/2008 - 05/2013	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-74010	KGJ10,NGJ10,NUJ10	11/2008 - 02/2012	1
88515 - VALVE, COOLER EXPANSION
88515-74010	KGJ10,NGJ10,NUJ10	11/2008 - 10/2010	1
88548B - CASE, AIR FILTER
88548-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
88625 - THERMISTOR, COOLER, NO.1
88620-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-74010	KGJ10,NUJ10 FRONT AIR CONDITIONER-WITHOUT	11/2008 - 04/2009	1
88650-74010	KGJ10,NUJ10	11/2008 - 04/2009	1
88650-74030	KGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO	11/2008 - 04/2009	1
88650-74031	KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO	05/2009 - 10/2010	1
88650-74011	KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-WITHOUT	05/2009 - 09/2010	1
88650-74011	KGJ10,NGJ10,NUJ10	05/2009 - 09/2010	1
88891S - COVER, COOLER, NO.1
87237-74010	KGJ10,NGJ10,NUJ10	11/2008 - 05/2014	1
Common parts
87128-74010
90099-14120
90099-14121
90159-60383
90159-70003
90179-06282
90467-07214
Linked diagrams
8715
