KGJ10R-BGMNGW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )KGJ10

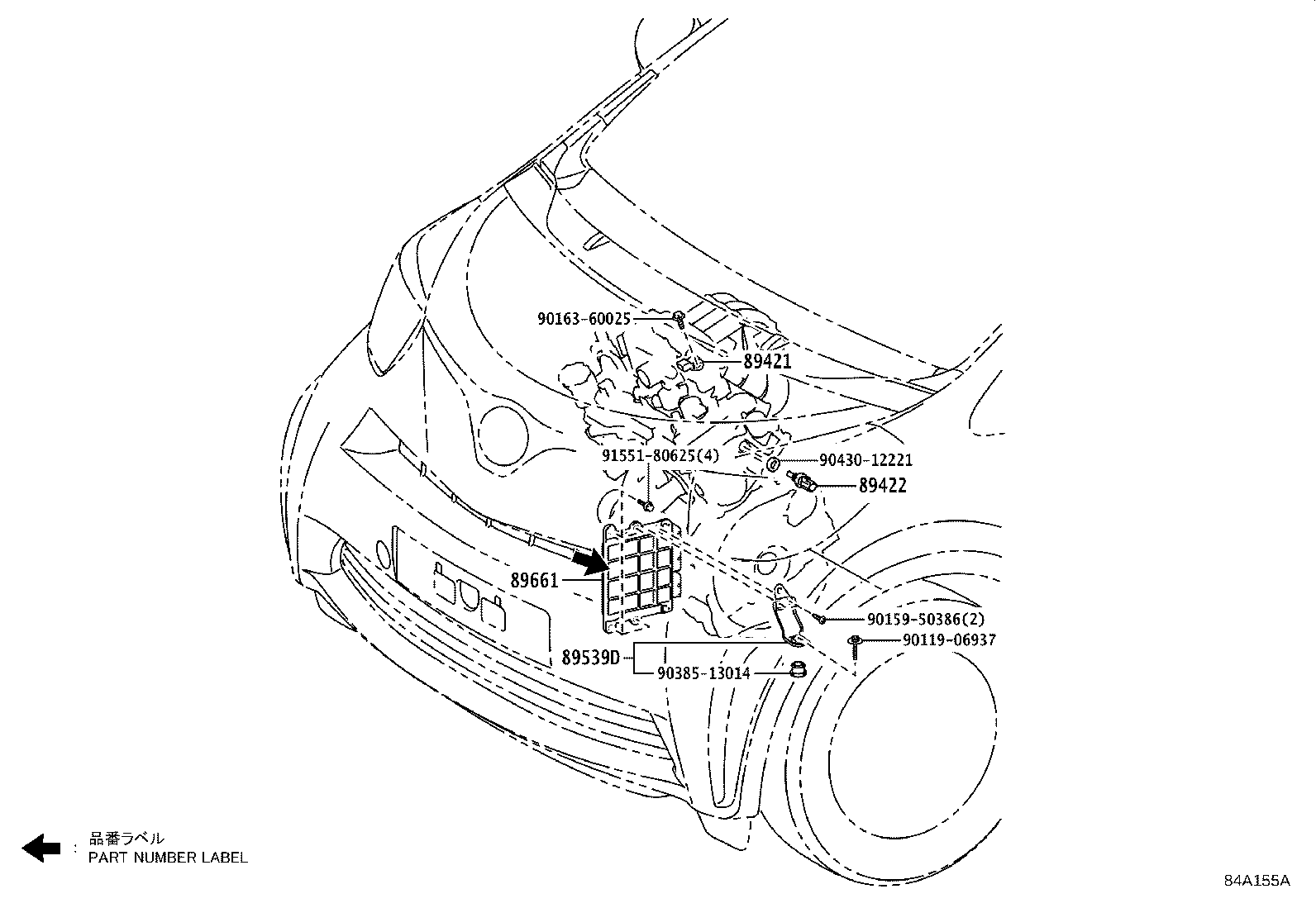

Click highlighted areas on diagram

diagram 89421 89422 89539D 89661 9011906937 9015950386 9016360025 9038513014 9043012221 9155180625
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-52010

KGJ10,NGJ10

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

KGJ10,NGJ10

 1
89539D - BRACKET, COMPUTER
89539-74010

KGJ10,NGJ10

 1
89661 - COMPUTER, ENGINE CONTROL
89661-74050

KGJ10..5F..N

 1
89661-74060

KGJ10..R

 1
89661-74171

KGJ10..5F..N

 1
89661-74170

KGJ10..5F..N

 1
89661-74180

KGJ10..R

 1
Common parts
90119-06937
90159-50386
90163-60025
90385-13014
90430-12221
91551-80625
