KGJ10R-BGMNGW (2008)
Toyota Iq

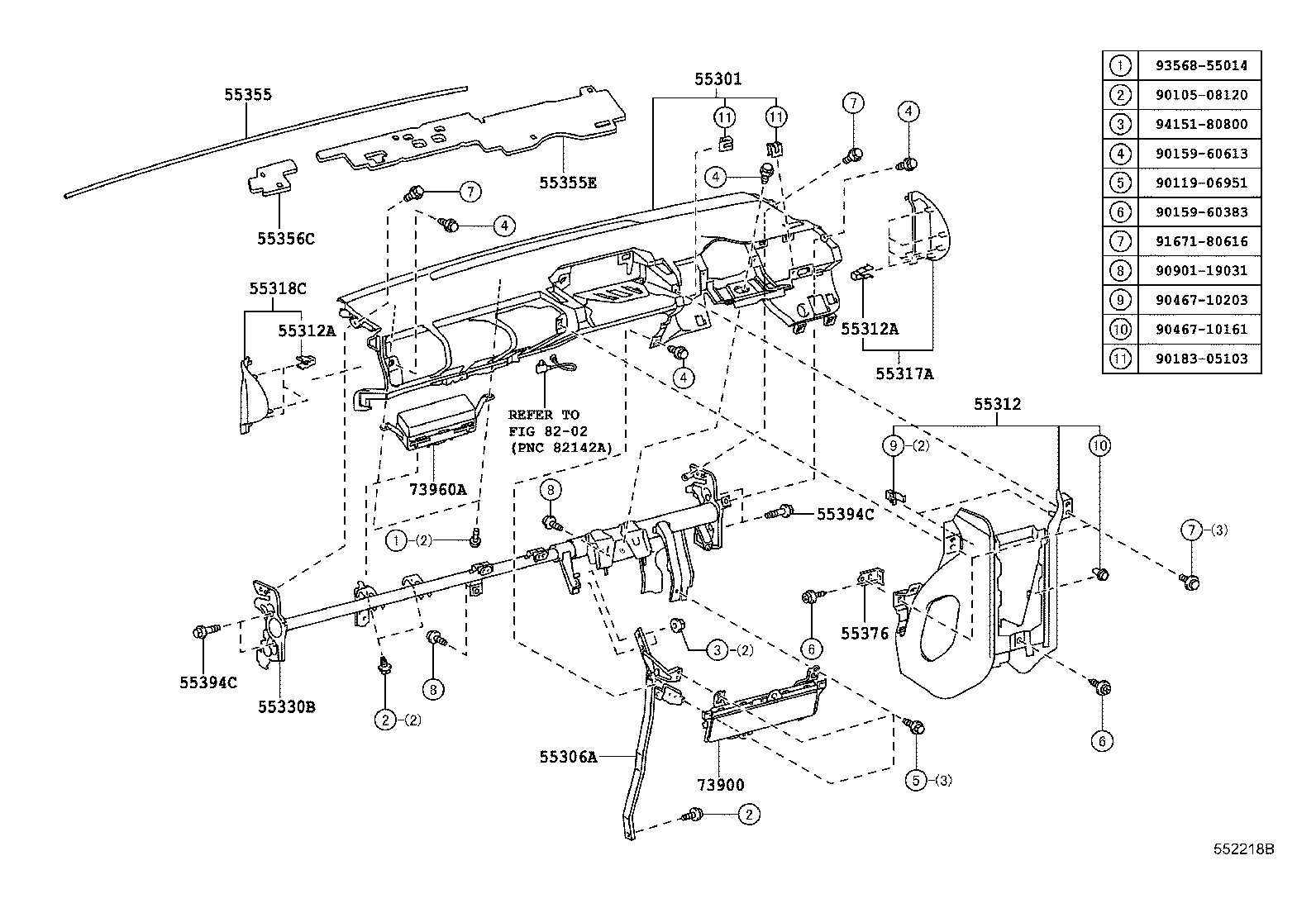

ILLUST NO. 1 OF 2(0811- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-74020E0 |
KGJ10,NGJ10,NUJ10..RHD PLUM,TRIM4#,5# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-74020 |
KGJ10,NGJ10,NUJ10..RHD |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-74020B0 |
KGJ10..RHD..R LT.GRAY,TRIM15,16,7# |
1 | ||
| 55312-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM10,12,13,4#,5# |
1 | ||
| 55312-74020B0 |
KGJ10..RHD..R LT.GRAY,TRIM15,7# |
1 | ||
| 55312-74020B0 |
KGJ10,NGJ10..RHD..N LT.GRAY,TRIM14,15,16,7# |
1 | ||
| 55312-74020B0 |
KGJ10,NGJ10..RHD..N LT.GRAY,TRIM14,15,7# |
1 | ||
| 55312-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-10201 |
KGJ10,NGJ10,NUJ10 |
7 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-10201 |
KGJ10,NGJ10,NUJ10 |
7 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-74020C0 |
KGJ10..RHD;NGJ10..RHD..N BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-74020C0 |
KGJ10..RHD;NGJ10..RHD..N BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-74020 |
NGJ10..RHD..R;KGJ10,NUJ10..RHD;NGJ10..RHD..CVFC |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-12090 |
KGJ10,NGJ10,NUJ10..RHD |
1 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-74010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-74010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-74020C0 |
KGJ10,NGJ10..RHD BLACK,TRIM10,12,13,43,44,53,54,57,58,9# |
1 | ||
| 73900-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 73900-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06951 | ||||
| 90159-60383 | ||||
| 90159-60613 | ||||
| 90183-05103 | ||||
| 90467-10161 | ||||
| 90467-10203 | ||||
| 90901-19031 | ||||
| 91671-80616 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

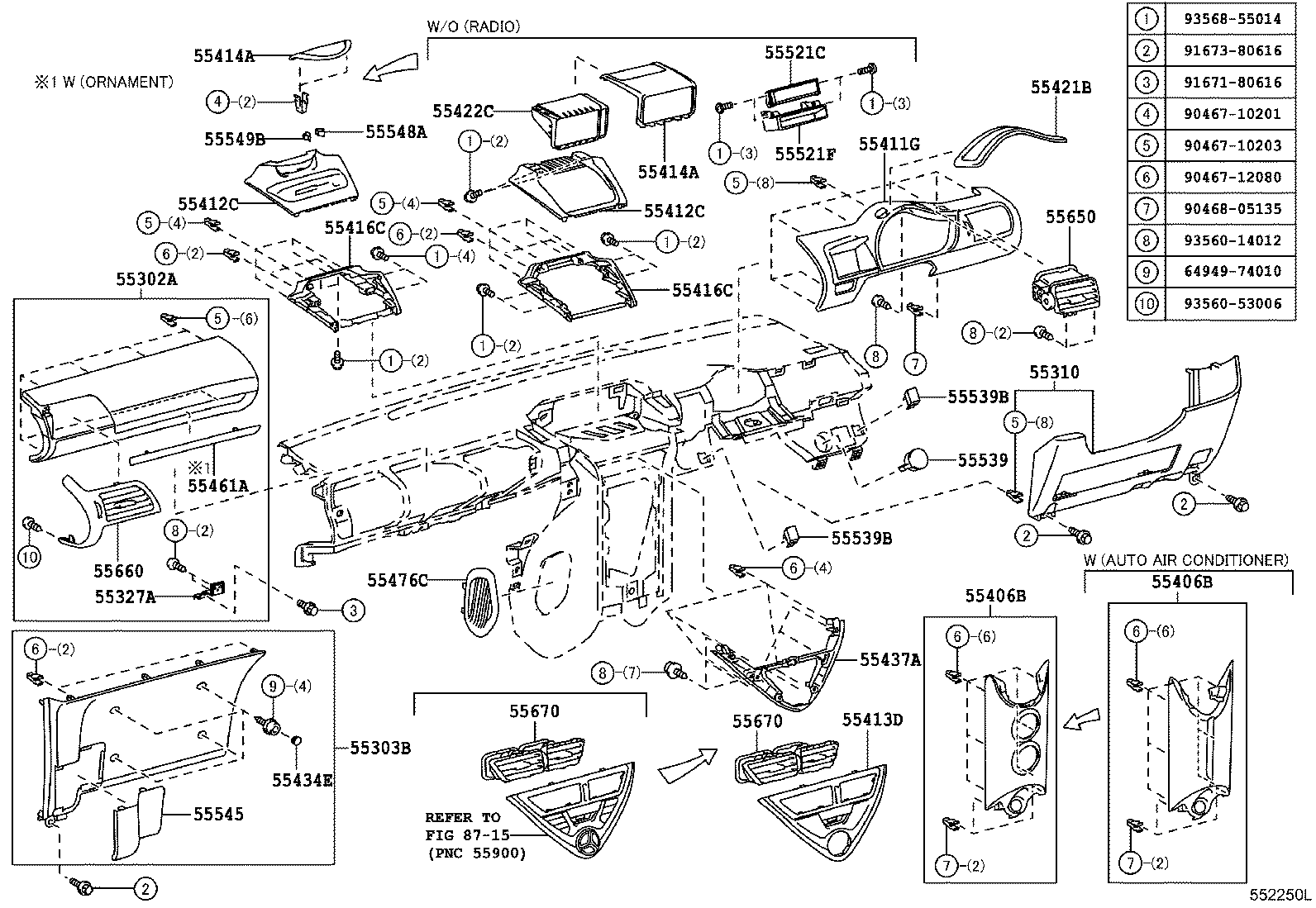

ILLUST NO. 2 OF 2(0811- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-74040C0 |
KGJ10..RHD..R INSTRUMENT PANEL-IQ COLLECTION & METER VISOR(BLACK),BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55302-74020C0 |
KGJ10..RHD;NGJ10..RHD..N BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55302-74040C0 |
KGJ10,NGJ10,NUJ10..RHD..N INSTRUMENT PANEL-IQ COLLECTION & METER VISOR(BLACK),BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 55302-74060C0 |
KGJ10,NGJ10..RHD INSTRUMENT PANEL-IQ COLLECTION & METER VISOR(BLACK),BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55320-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 55320-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 55320-74020C0 |
KGJ10,NGJ10..RHD BLACK,TRIM10,12,13,43,44,53,54,57,58,9# |
1 | ||
| 55310 - PANEL ASSY, INSTRUMENT, LOWER | ||||
| 55310-74020C0 |
KGJ10,NGJ10..RHD BLACK,TRIM10,12,13,43,44,53,54,57,58,9# |
1 | ||
| 55310-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 55310-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-74010C0 |
NUJ10..LHD;KGJ10,NGJ10..N INSTRUMENT PANEL-IQ COLLECTION & METER VISOR(BLACK),BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 55327-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-74020C0 |
NUJ10..LHD;KGJ10,NGJ10 FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55406-74020C0 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55406-74010C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-74020C0 |
NUJ10..LHD;KGJ10,NGJ10 FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55406-74020C0 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55406-74010C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-74020C0 |
KGJ10..RHD;NGJ10..RHD..N BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-74010C0 |
KGJ10 IQ COLLECTION,BLACK,TRIM15,16,7# |
1 | ||
| 55412-74020A1 |
KGJ10 IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAMWHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74010A1 |
KGJ10 IQ COLLECTION,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74010E0 |
KGJ10 IQ COLLECTION,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412-74020B0 |
NUJ10..LHD;KGJ10,NGJ10 AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),PLUM,TRIM1#,4#,9# |
1 | ||
| 55412-74020E0 |
KGJ10 IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412-74020C0 |
KGJ10 IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM15,16,7# |
1 | ||
| 55412-74010C0 |
NGJ10..6F;KGJ10,NUJ10 SPORT PACKAGE,BLACK,TRIM15,16,7# |
1 | ||
| 55412-74010B0 |
NUJ10..LHD;KGJ10,NGJ10 PLUM,TRIM1#,4#,9# |
1 | ||
| 55412-74010E0 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412-74010E0 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412-74010A1 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74010A1 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74010C0 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BLACK,TRIM15,16,7# |
1 | ||
| 55412-74020E0 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412-74020C0 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM15,16,7# |
1 | ||
| 55412-74020A1 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74020C0 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM15,16,7# |
1 | ||
| 55412-74020A1 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAMWHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74020E0 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-74010C0 |
KGJ10 IQ COLLECTION,BLACK,TRIM15,16,7# |
1 | ||
| 55412-74020A1 |
KGJ10 IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAMWHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74010A1 |
KGJ10 IQ COLLECTION,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74010E0 |
KGJ10 IQ COLLECTION,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412-74020B0 |
NUJ10..LHD;KGJ10,NGJ10 AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),PLUM,TRIM1#,4#,9# |
1 | ||
| 55412-74020E0 |
KGJ10 IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412-74020C0 |
KGJ10 IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM15,16,7# |
1 | ||
| 55412-74010C0 |
NGJ10..6F;KGJ10,NUJ10 SPORT PACKAGE,BLACK,TRIM15,16,7# |
1 | ||
| 55412-74010B0 |
NUJ10..LHD;KGJ10,NGJ10 PLUM,TRIM1#,4#,9# |
1 | ||
| 55412-74010E0 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412-74010E0 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412-74010A1 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74010A1 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74010C0 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BLACK,TRIM15,16,7# |
1 | ||
| 55412-74020E0 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55412-74020C0 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM15,16,7# |
1 | ||
| 55412-74020A1 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74020C0 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM15,16,7# |
1 | ||
| 55412-74020A1 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAMWHITE,TRIM13,55,57,58 |
1 | ||
| 55412-74020E0 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-74010B0 |
KGJ10,NGJ10,NUJ10..N FRONT AIR CONDITIONER-AUTO,PLUM,TRIM1#,4# |
1 | ||
| 55413-74010B0 |
KGJ10..R INSTRUMENT PANEL CENTER CLUSTER-WITH(CD) & IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,PLUM,TRIM1#,4#,9# |
1 | ||
| 55413-74010B0 |
KGJ10..R INSTRUMENT PANEL CENTER CLUSTER-WITHOUT(CD) & IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,PLUM,TRIM1#,4#,9# |
1 | ||
| 55413-74010B0 |
KGJ10..R PLUM,TRIM1#,4#,9# |
1 | ||
| 55413-74010B0 |
KGJ10..R HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,PLUM,TRIM1#,4#,9# |
1 | ||
| 55413-74010B0 |
KGJ10,NGJ10,NUJ10..N INSTRUMENT PANEL CENTER CLUSTER-WITH(CD) & IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,PLUM,TRIM1#,4# |
1 | ||
| 55413-74010B0 |
KGJ10..R FRONT AIR CONDITIONER-AUTO,PLUM,TRIM1#,4#,9# |
1 | ||
| 55413-74010B0 |
KGJ10..R INSTRUMENT PANEL CENTER CLUSTER-WITHOUT(CD) & WITH(TWO TONE PAINT)&HEATER CONTROLPANEL-AUTO(DIAL)GRAY METALLIC,PLUM,TRIM1#,4#,9# |
1 | ||
| 55413-74010B0 |
KGJ10,NGJ10,NUJ10..N HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,PLUM,TRIM1#,4# |
1 | ||
| 55413-74010B0 |
KGJ10,NGJ10,NUJ10..N PLUM,TRIM1#,4# |
1 | ||
| 55413-74010B0 |
KGJ10..R INSTRUMENT PANEL CENTER CLUSTER-WITH(CD & TWO TONE PAINT)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,PLUM,TRIM1#,4#,9# |
1 | ||
| 55413-74010B0 |
KGJ10,NGJ10,NUJ10..N INSTRUMENT PANEL CENTER CLUSTER-WITHOUT(CD) & WITH(TWO TONE PAINT)&HEATER CONTROLPANEL-AUTO(DIAL)GRAY METALLIC,PLUM,TRIM1#,4# |
1 | ||
| 55413-74010B0 |
KGJ10,NGJ10,NUJ10..N INSTRUMENT PANEL CENTER CLUSTER-WITHOUT(CD) & IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,PLUM,TRIM1#,4# |
1 | ||
| 55413-74010B0 |
KGJ10,NGJ10,NUJ10..N INSTRUMENT PANEL CENTER CLUSTER-WITH(CD & TWO TONE PAINT)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,PLUM,TRIM1#,4# |
1 | ||
| 55413-74010C0 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE,BLACK,TRIM1#,7# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-74020C0 |
KGJ10..N IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,16,7# |
1 | ||
| 55414-74030D0 |
KGJ10..R IQ COLLECTION,RED,TRIM15,72,73 |
1 | ||
| 55414-74020E0 |
KGJ10 IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55414-74030C1 |
KGJ10..5F..N IQ COLLECTION,BLACK,TRIM12,13,15,16,5#,72,73,74,75 |
1 | ||
| 55414-74020A1 |
KGJ10 IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAMWHITE,TRIM13,55,57,58 |
1 | ||
| 55414-74030C1 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION,BLACK,TRIM12,13,15,16,5#,72,73,74,75,76 |
1 | ||
| 55414-74020C0 |
KGJ10..R IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,7# |
1 | ||
| 55414-74020B1 |
NUJ10..LHD;KGJ10,NGJ10 AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),PLUM,TRIM1#,4#,9# |
1 | ||
| 55414-74020C0 |
KGJ10..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,16,7# |
1 | ||
| 55414-74020A1 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55414-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 BLACK,TRIM1#,4#,9# |
1 | ||
| 55414-74030D0 |
KGJ10..N IQ COLLECTION,RED,TRIM15,16,72,73 |
1 | ||
| 55414-74020C0 |
KGJ10,NGJ10,NUJ10..N SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,16,7# |
1 | ||
| 55414-74020C0 |
KGJ10..R HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,7# |
1 | ||
| 55414-74020E0 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55414-74020E0 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55414-74020C0 |
KGJ10..R SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,7# |
1 | ||
| 55414-74030C1 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BLACK,TRIM12,13,15,16,5#,72,73,74,75 |
1 | ||
| 55414-74020A1 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAMWHITE,TRIM13,55,57,58 |
1 | ||
| 55414-74030D0 |
KGJ10..R HEADLAMP-WITH(SMOKE)&IQ COLLECTION,RED,TRIM15,72,73 |
1 | ||
| 55414-74030C1 |
KGJ10,NGJ10,NUJ10..MTM..N SPORT PACKAGE,BLACK,TRIM12,13,15,16,5#,72,73,74,75 |
1 | ||
| 55414-74030C1 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BLACK,TRIM12,13,15,16,5#,72,73,74,75,76 |
1 | ||
| 55414-74030D0 |
KGJ10..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION,RED,TRIM15,16,72,73 |
1 | ||
| 55414-74030D0 |
KGJ10,NGJ10,NUJ10..N SPORT PACKAGE,RED,TRIM15,16,72,73 |
1 | ||
| 55414-74030D0 |
KGJ10..R SPORT PACKAGE,RED,TRIM15,72,73 |
1 | ||
| 55414-74030C1 |
KGJ10..R;KGJ10..CVFC SPORT PACKAGE,BLACK,TRIM12,13,15,16,5#,72,73,74,75,76 |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-74020C0 |
KGJ10..N IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,16,7# |
1 | ||
| 55414-74030D0 |
KGJ10..R IQ COLLECTION,RED,TRIM15,72,73 |
1 | ||
| 55414-74020E0 |
KGJ10 IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55414-74030C1 |
KGJ10..5F..N IQ COLLECTION,BLACK,TRIM12,13,15,16,5#,72,73,74,75 |
1 | ||
| 55414-74020A1 |
KGJ10 IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAMWHITE,TRIM13,55,57,58 |
1 | ||
| 55414-74030C1 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION,BLACK,TRIM12,13,15,16,5#,72,73,74,75,76 |
1 | ||
| 55414-74020C0 |
KGJ10..R IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,7# |
1 | ||
| 55414-74020B1 |
NUJ10..LHD;KGJ10,NGJ10 AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),PLUM,TRIM1#,4#,9# |
1 | ||
| 55414-74020C0 |
KGJ10..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,16,7# |
1 | ||
| 55414-74020A1 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55414-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 BLACK,TRIM1#,4#,9# |
1 | ||
| 55414-74030D0 |
KGJ10..N IQ COLLECTION,RED,TRIM15,16,72,73 |
1 | ||
| 55414-74020C0 |
KGJ10,NGJ10,NUJ10..N SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,16,7# |
1 | ||
| 55414-74020C0 |
KGJ10..R HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,7# |
1 | ||
| 55414-74020E0 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55414-74020E0 |
KGJ10 HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55414-74020C0 |
KGJ10..R SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK/RED,TRIM15,7# |
1 | ||
| 55414-74030C1 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BLACK,TRIM12,13,15,16,5#,72,73,74,75 |
1 | ||
| 55414-74020A1 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),CREAMWHITE,TRIM13,55,57,58 |
1 | ||
| 55414-74030D0 |
KGJ10..R HEADLAMP-WITH(SMOKE)&IQ COLLECTION,RED,TRIM15,72,73 |
1 | ||
| 55414-74030C1 |
KGJ10,NGJ10,NUJ10..MTM..N SPORT PACKAGE,BLACK,TRIM12,13,15,16,5#,72,73,74,75 |
1 | ||
| 55414-74030C1 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BLACK,TRIM12,13,15,16,5#,72,73,74,75,76 |
1 | ||
| 55414-74030D0 |
KGJ10..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION,RED,TRIM15,16,72,73 |
1 | ||
| 55414-74030D0 |
KGJ10,NGJ10,NUJ10..N SPORT PACKAGE,RED,TRIM15,16,72,73 |
1 | ||
| 55414-74030D0 |
KGJ10..R SPORT PACKAGE,RED,TRIM15,72,73 |
1 | ||
| 55414-74030C1 |
KGJ10..R;KGJ10..CVFC SPORT PACKAGE,BLACK,TRIM12,13,15,16,5#,72,73,74,75,76 |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-74030D0 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION,RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416-74030C1 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION,BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74040D0 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416-74040C1 |
KGJ10..5F..N IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,5# |
1 | ||
| 55416-74040D0 |
KGJ10..5F..N IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,7# |
1 | ||
| 55416-74030C1 |
KGJ10..5F..N IQ COLLECTION,BLACK,TRIM12,13,5# |
1 | ||
| 55416-74030D0 |
KGJ10..5F..N IQ COLLECTION,RED,TRIM15,16,7# |
1 | ||
| 55416-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 BLACK,TRIM1#,4#,9# |
1 | ||
| 55416-74040C1 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74020C0 |
NUJ10..LHD;KGJ10,NGJ10 AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM1#,4#,9# |
1 | ||
| 55416-74030C1 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BLACK,TRIM12,13,5# |
1 | ||
| 55416-74030D0 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION,RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416-74030C1 |
KGJ10,NUJ10..MTM..N SPORT PACKAGE,BLACK,TRIM12,13,5# |
1 | ||
| 55416-74030C1 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74040C1 |
KGJ10..R;KGJ10..CVFC;NGJ10..LHD..CVFC SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74030D0 |
NGJ10..RHD;NGJ10..LHD..6F;KGJ10,NUJ10..MTM..N SPORT PACKAGE,RED,TRIM15,16,7# |
1 | ||
| 55416-74030C1 |
KGJ10..R;KGJ10..CVFC SPORT PACKAGE,BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74040C1 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,5# |
1 | ||
| 55416-74030D0 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION,RED,TRIM15,16,7# |
1 | ||
| 55416-74040D0 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416-74040C1 |
KGJ10,NUJ10..MTM..N SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,5# |
1 | ||
| 55416-74030D0 |
KGJ10..R;KGJ10..CVFC;NGJ10..LHD..CVFC SPORT PACKAGE,RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416-74040D0 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,7# |
1 | ||
| 55416-74040C1 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74040D0 |
NGJ10..RHD;NGJ10..LHD..6F;KGJ10,NUJ10..MTM..N SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,7# |
1 | ||
| 55416-74040D0 |
KGJ10..R;KGJ10..CVFC;NGJ10..LHD..CVFC SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-74030D0 |
KGJ10..5F..N IQ COLLECTION,RED,TRIM15,16,7# |
1 | ||
| 55416-74030C1 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION,BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74040D0 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416-74040C1 |
KGJ10..5F..N IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,5# |
1 | ||
| 55416-74040D0 |
KGJ10..5F..N IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,7# |
1 | ||
| 55416-74030C1 |
KGJ10..5F..N IQ COLLECTION,BLACK,TRIM12,13,5# |
1 | ||
| 55416-74030D0 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION,RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 BLACK,TRIM1#,4#,9# |
1 | ||
| 55416-74040C1 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74020C0 |
NUJ10..LHD;KGJ10,NGJ10 AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM1#,4#,9# |
1 | ||
| 55416-74030C1 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BLACK,TRIM12,13,5# |
1 | ||
| 55416-74030D0 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION,RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416-74030C1 |
KGJ10,NUJ10..MTM..N SPORT PACKAGE,BLACK,TRIM12,13,5# |
1 | ||
| 55416-74030C1 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION,BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74040C1 |
KGJ10..R;KGJ10..CVFC;NGJ10..LHD..CVFC SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74030D0 |
NGJ10..RHD;NGJ10..LHD..6F;KGJ10,NUJ10..MTM..N SPORT PACKAGE,RED,TRIM15,16,7# |
1 | ||
| 55416-74030C1 |
KGJ10..R;KGJ10..CVFC SPORT PACKAGE,BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74040C1 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,5# |
1 | ||
| 55416-74030D0 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION,RED,TRIM15,16,7# |
1 | ||
| 55416-74040D0 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416-74040C1 |
KGJ10,NUJ10..MTM..N SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,5# |
1 | ||
| 55416-74030D0 |
KGJ10..R;KGJ10..CVFC;NGJ10..LHD..CVFC SPORT PACKAGE,RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55416-74040D0 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,7# |
1 | ||
| 55416-74040C1 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,5#,72,76 |
1 | ||
| 55416-74040D0 |
NGJ10..RHD;NGJ10..LHD..6F;KGJ10,NUJ10..MTM..N SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,7# |
1 | ||
| 55416-74040D0 |
KGJ10..R;KGJ10..CVFC;NGJ10..LHD..CVFC SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,72,73,74,75 |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-74020C1 |
KGJ10,NGJ10..RHD..MTM..N BLACK/PLUM,TRIM1#,4#,9# |
1 | ||
| 55421-74020C1 |
KGJ10..RHD..R;KGJ10,NGJ10..RHD..CVFC BLACK/PLUM,TRIM1#,4#,7#,9# |
1 | ||
| 55421-74020C2 |
KGJ10,NGJ10..RHD..MTM..N BLACK/BLACK,TRIM12,13,14,15,16,5#,7# |
1 | ||
| 55421-74020C1 |
KGJ10..RHD..5F..N BLACK/PLUM,TRIM10,4#,9# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM1#,4#,9# |
1 | ||
| 55422-74020D0 |
KGJ10..N IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,72,73 |
1 | ||
| 55422-74020C1 |
KGJ10..R;KGJ10..CVFC IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,16,5#,72,73,74,75,76 |
1 | ||
| 55422-74020D0 |
KGJ10..R HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,72,73 |
1 | ||
| 55422-74020D0 |
KGJ10,NGJ10,NUJ10..N SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,72,73 |
1 | ||
| 55422-74020D0 |
KGJ10..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,16,72,73 |
1 | ||
| 55422-74020D0 |
KGJ10..R SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,72,73 |
1 | ||
| 55422-74020C1 |
NGJ10..RHD;NGJ10..LHD..6F;KGJ10,NUJ10..MTM..N SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,16,5#,72,73,74,75 |
1 | ||
| 55422-74020D0 |
KGJ10..R IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),RED,TRIM15,72,73 |
1 | ||
| 55422-74020C1 |
KGJ10..R;KGJ10..CVFC HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,16,5#,72,73,74,75,76 |
1 | ||
| 55422-74020C1 |
KGJ10..5F..N IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,16,5#,72,73,74,75 |
1 | ||
| 55422-74020C1 |
KGJ10..5F..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,16,5#,72,73,74,75 |
1 | ||
| 55422-74020C1 |
KGJ10..R;KGJ10..CVFC;NGJ10..LHD..CVFC SPORT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),BLACK,TRIM12,13,15,16,5#,72,73,74,75,76 |
1 | ||
| 55434E - CAP | ||||
| 64937-74020 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 64937-74010 |
KGJ10,NUJ10 |
4 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITH(CD) & IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,9# |
1 | ||
| 55437-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITH(CD & TWO TONE PAINT)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,9# |
1 | ||
| 55437-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITHOUT(CD) & IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,9# |
1 | ||
| 55437-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITHOUT(CD) & WITH(TWO TONE PAINT)&HEATER CONTROLPANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,9# |
1 | ||
| 55437-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,9# |
1 | ||
| 55437-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 BLACK,TRIM1#,4#,9# |
1 | ||
| 55437-74020D0 |
KGJ10,NGJ10,NUJ10 SPORT PACKAGE,RED,TRIM1#,7# |
1 | ||
| 55437-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,9# |
1 | ||
| 55461A - ORNAMENT, INSTRUMENT PANEL | ||||
| 55461-74020 |
KGJ10,NGJ10..RHD INSTRUMENT PANEL-IQ COLLECTION & METER VISOR(BLACK) |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 55476-74020B0 |
KGJ10,NGJ10..RHD..N LT.GRAY,TRIM14,15,16,7# |
1 | ||
| 55476-74020B0 |
KGJ10..RHD..R LT.GRAY,TRIM15,16,7# |
1 | ||
| 55476-74020B0 |
KGJ10,NGJ10..RHD..N LT.GRAY,TRIM14,15,7# |
1 | ||
| 55476-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM10,12,13,4#,5# |
1 | ||
| 55476-74020B0 |
KGJ10..RHD..R LT.GRAY,TRIM15,7# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-20150 |
KGJ10,NGJ10,NUJ10 AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER) |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-12190 |
KGJ10,NGJ10,NUJ10 AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52040E1 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO,PLUM,TRIM1#,4# |
1 | ||
| 55539-52040B1 |
KGJ10,NGJ10,NUJ10 LT.GRAY,TRIM15 |
1 | ||
| 55539-52040E1 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO,PLUM,TRIM10,4# |
1 | ||
| 55539-52040E1 |
KGJ10,NGJ10,NUJ10 PLUM,TRIM1#,4# |
1 | ||
| 55539-52040B1 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO,LT.GRAY,TRIM15 |
1 | ||
| 55539-52040E1 |
KGJ10,NGJ10,NUJ10 PLUM,TRIM10,4# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060E9 |
KGJ10,NGJ10,NUJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060E9 |
KGJ10,NGJ10,NUJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM1#,4#,5# |
1 | ||
| 55545-74020E0 |
KGJ10,NGJ10..RHD PLUM,TRIM10,12,13,4#,5# |
1 | ||
| 55545-74020C0 |
KGJ10,NGJ10..RHD BLACK,TRIM9# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-74010 |
KGJ10,NUJ10 |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-74010 |
KGJ10,NUJ10 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-74020C0 |
KGJ10..RHD;NGJ10..RHD..N BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-74020C0 |
KGJ10..RHD;NGJ10..RHD..N BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55660-74020C0 |
KGJ10,NGJ10..RHD..N INSTRUMENT PANEL-IQ COLLECTION & METER VISOR(BLACK),BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITH(CD) & IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10;NGJ10..LHD HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITHOUT(CD) & WITH(TWO TONE PAINT)&HEATER CONTROLPANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10..5F..N BLACK,TRIM1#,4#,9# |
1 | ||
| 55670-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITHOUT(CD) & IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10,NUJ10..N HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 55670-74010C0 |
KGJ10,NUJ10 IQ COLLECTION&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 55670-74010C0 |
KGJ10..5F..N FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,9# |
1 | ||
| 55670-74010C0 |
NGJ10..RHD;KGJ10,NUJ10..N SPORT PACKAGE&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10..N HEADLAMP-WITH(SMOKE)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
NGJ10..RHD;KGJ10,NUJ10..N SPORT PACKAGE,BLACK,TRIM1#,4#,7# |
1 | ||
| 55670-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITH(CD & TWO TONE PAINT)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10..R;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10..R;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITH(CD) & IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10;NGJ10..LHD HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITHOUT(CD) & WITH(TWO TONE PAINT)&HEATER CONTROLPANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10..5F..N BLACK,TRIM1#,4#,9# |
1 | ||
| 55670-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITHOUT(CD) & IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10,NUJ10..N HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 55670-74010C0 |
KGJ10,NUJ10 IQ COLLECTION&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 55670-74010C0 |
KGJ10..5F..N FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,9# |
1 | ||
| 55670-74010C0 |
NGJ10..RHD;KGJ10,NUJ10..N SPORT PACKAGE&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10..N HEADLAMP-WITH(SMOKE)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
NGJ10..RHD;KGJ10,NUJ10..N SPORT PACKAGE,BLACK,TRIM1#,4#,7# |
1 | ||
| 55670-74010C0 |
NUJ10..LHD;KGJ10,NGJ10 INSTRUMENT PANEL CENTER CLUSTER-WITH(CD & TWO TONE PAINT)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10..N HEADLAMP-WITH(SMOKE)&IQ COLLECTION&HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10..R;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55670-74010C0 |
KGJ10..R;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| Common parts | ||||
| 64949-74010 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 93560-14012 | ||||
| 93560-53006 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
