KGJ10R-BGMNGW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )KGJ10..RHD

Click highlighted areas on diagram

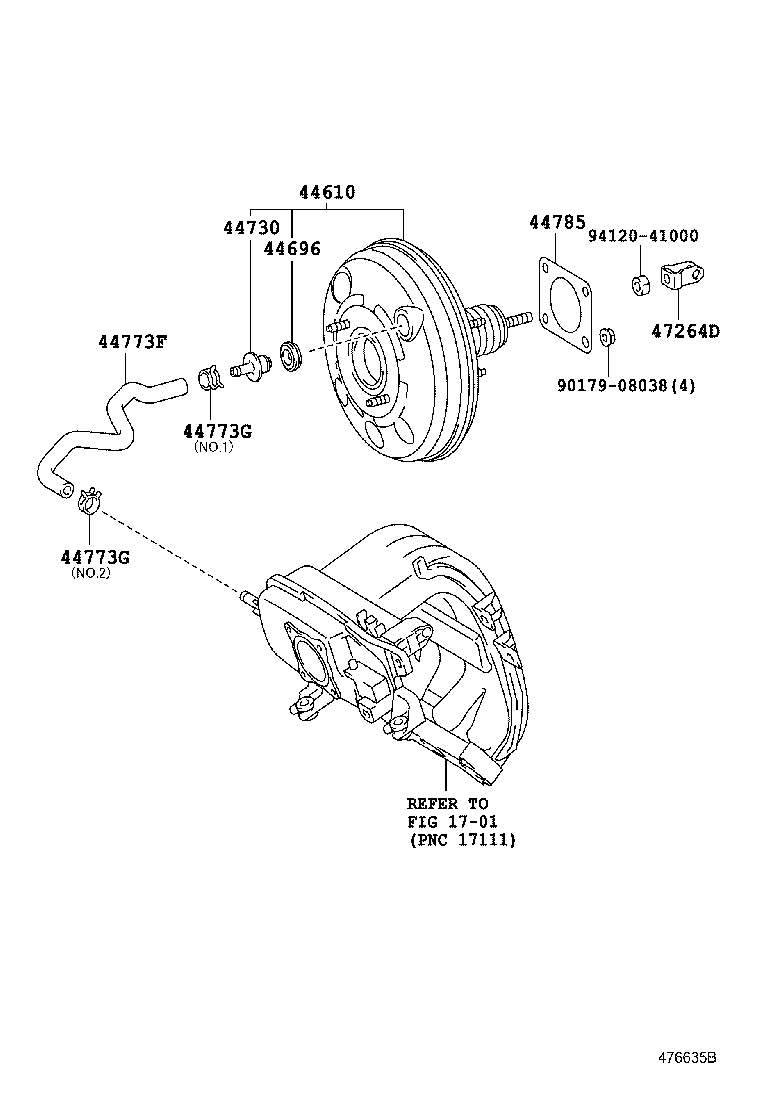

diagram 1701 44610 44696 44730 44773F 44773G 44773G 44785 47264D 9017908038 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-74010

NGJ10..RHD..R;KGJ10,NGJ10..RHD..(5F,CVFC)

 1
44696 - GROMMET, CHECK VALVE
90480-24439

KGJ10,NGJ10,NUJ10

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

KGJ10,NGJ10,NUJ10..RHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-74010

KGJ10..RHD

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

KGJ10..RHD

NO.1 & NO.2

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

KGJ10..RHD

NO.1 & NO.2

 2
44785 - GASKET, BRAKE BOOSTER
44785-16020

KGJ10,NGJ10,NUJ10

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63020

KGJ10,NGJ10,NUJ10

 1
Common parts
90179-08038
94120-41000
Linked diagrams
1701
