KGJ10R-BGMNGW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

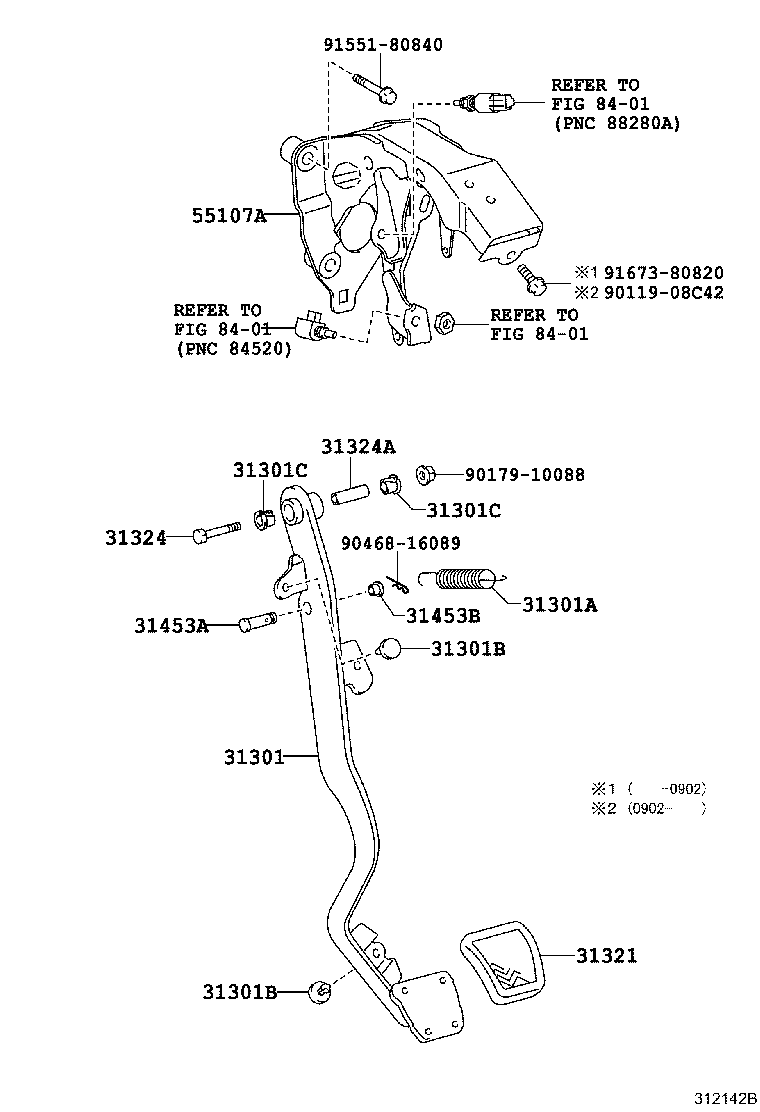

ILLUST NO. 1 OF 2(0811- )RHD..5F ; (0811- )NGJ10..RHD..6F..N

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31321 31324 31324A 31453A 31453B 55107A 8401 8401 8401 9011908C42 9017910088 9046816089 9155180840 9167380820
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-74030

KGJ10..RHD..5F;NGJ10..RHD..6F..N

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14051

KGJ10..5F;NGJ10..6F..N

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KGJ10,NGJ10,NUJ10..MTM

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KGJ10,NGJ10,NUJ10..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KGJ10,NGJ10,NUJ10..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KGJ10,NGJ10,NUJ10..MTM

 2
31321 - PAD, CLUTCH PEDAL
31321-52010

KGJ10,NGJ10,NUJ10..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

KGJ10,NGJ10,NUJ10..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

KGJ10,NGJ10,NUJ10..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08256

KGJ10,NGJ10,NUJ10..MTM

L=36.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

KGJ10,NGJ10,NUJ10..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-74030

KGJ10..RHD..5F;NGJ10..RHD..6F..N

 1
Common parts
90119-08C42
90179-10088
90468-16089
91551-80840
91673-80820
Linked diagrams
8401

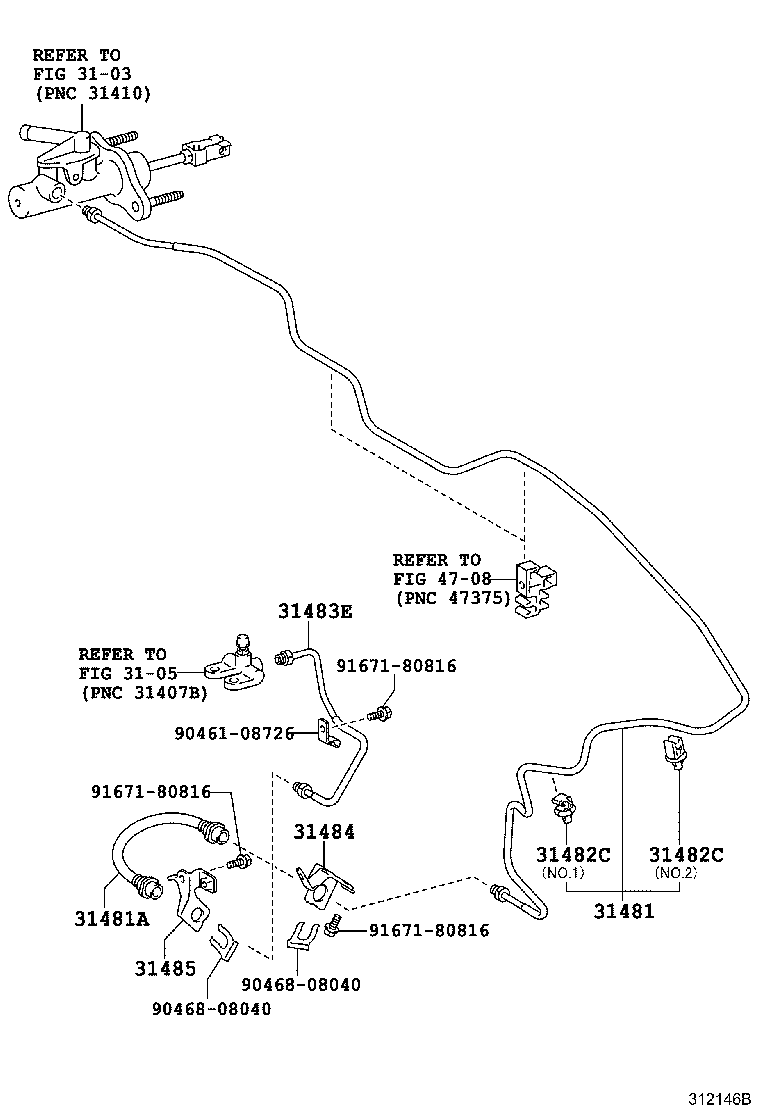

ILLUST NO. 2 OF 2(0811- )KGJ10,NGJ10..RHD..MTM

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482C 31482C 31483E 31484 31485 4708 9046108726 9046808040 9046808040 9167180816 9167180816 9167180816
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-74020

KGJ10,NGJ10,NUJ10..RHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90947-02G26

KGJ10,NGJ10..MTM

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KGJ10,NGJ10,NUJ10..MTM

NO.1

 1
90949-01D29

KGJ10,NGJ10,NUJ10..MTM

NO.2

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KGJ10,NGJ10,NUJ10..MTM

NO.1

 1
90949-01D29

KGJ10,NGJ10,NUJ10..MTM

NO.2

 1
31483E - TUBE, BLEEDER CLUTCH RELEASE
31482-74010

KGJ10,NGJ10..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-74010

KGJ10,NGJ10,NUJ10..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-74020

KGJ10,NGJ10,NUJ10..MTM

 1
Common parts
90461-08726
90468-08040
91671-80816
Linked diagrams
3103
3105
4708
