KGJ10R-BGMNGW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811-1304)1KRFE ; (1309- )1KRFE

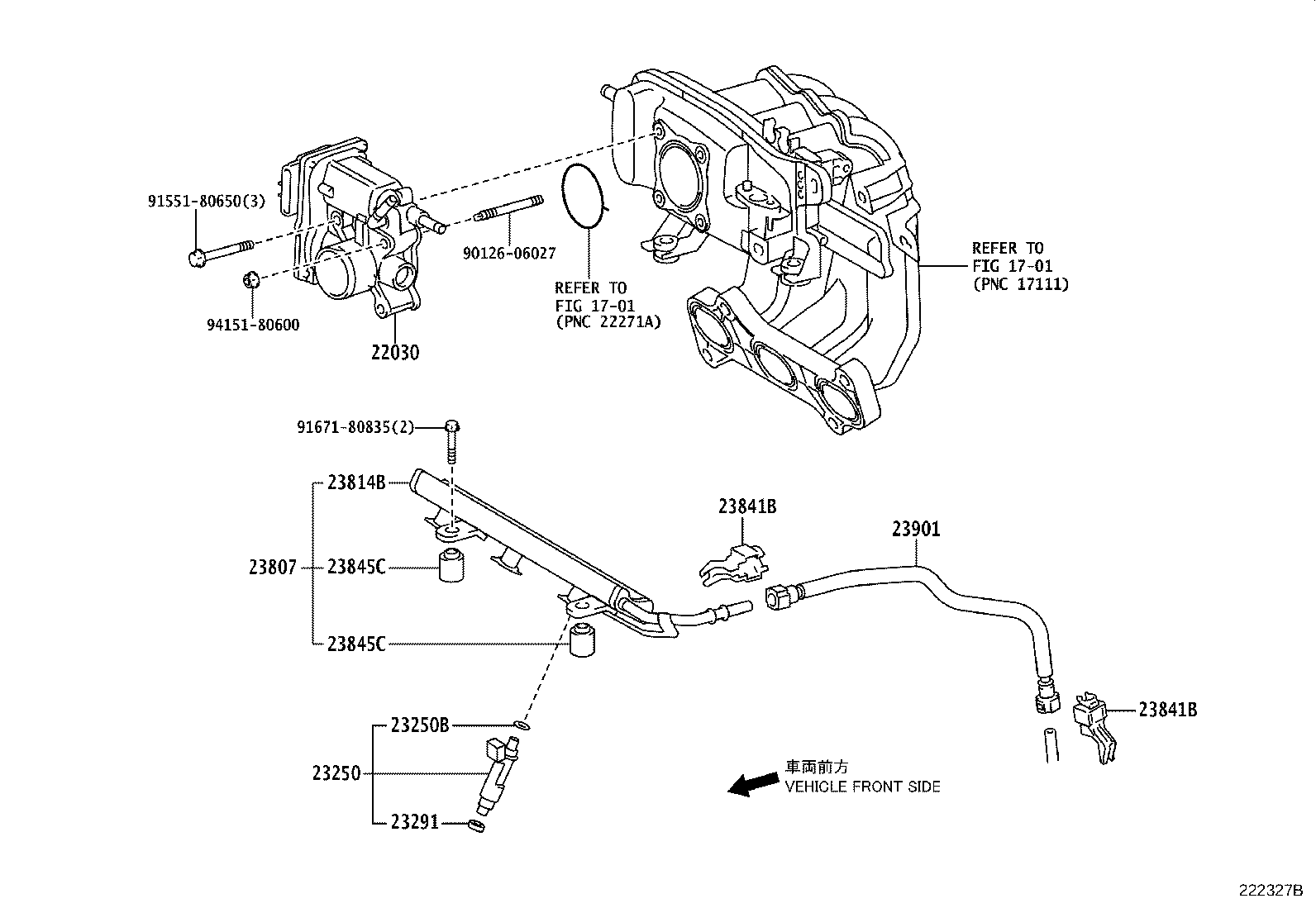

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-40010 |
1KRFE..KGJ10 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-49085 |
1KRFE..KGJ10 |
3 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07033 |
1KRFE..KGJ10 |
3 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-87701 |
1KRFE..KGJ10 |
3 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-40020 |
1KRFE..KGJ10 |
1 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-40020 |
1KRFE..KGJ10 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-21050 |
1KRFE..KGJ10 |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-21050 |
1KRFE..KGJ10 |
2 | ||
| 23845C - INSULATOR, FUEL PIPE | ||||
| 23845-40010 |
1KRFE..KGJ10 |
2 | ||
| 23845C - INSULATOR, FUEL PIPE | ||||
| 23845-40010 |
1KRFE..KGJ10 |
2 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-40030 |
1KRFE..KGJ10 |
1 | ||
| Common parts | ||||
| 90126-06027 | ||||
| 91551-80650 | ||||
| 91671-80835 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
