KGJ10R-BGMNGW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1KRFE

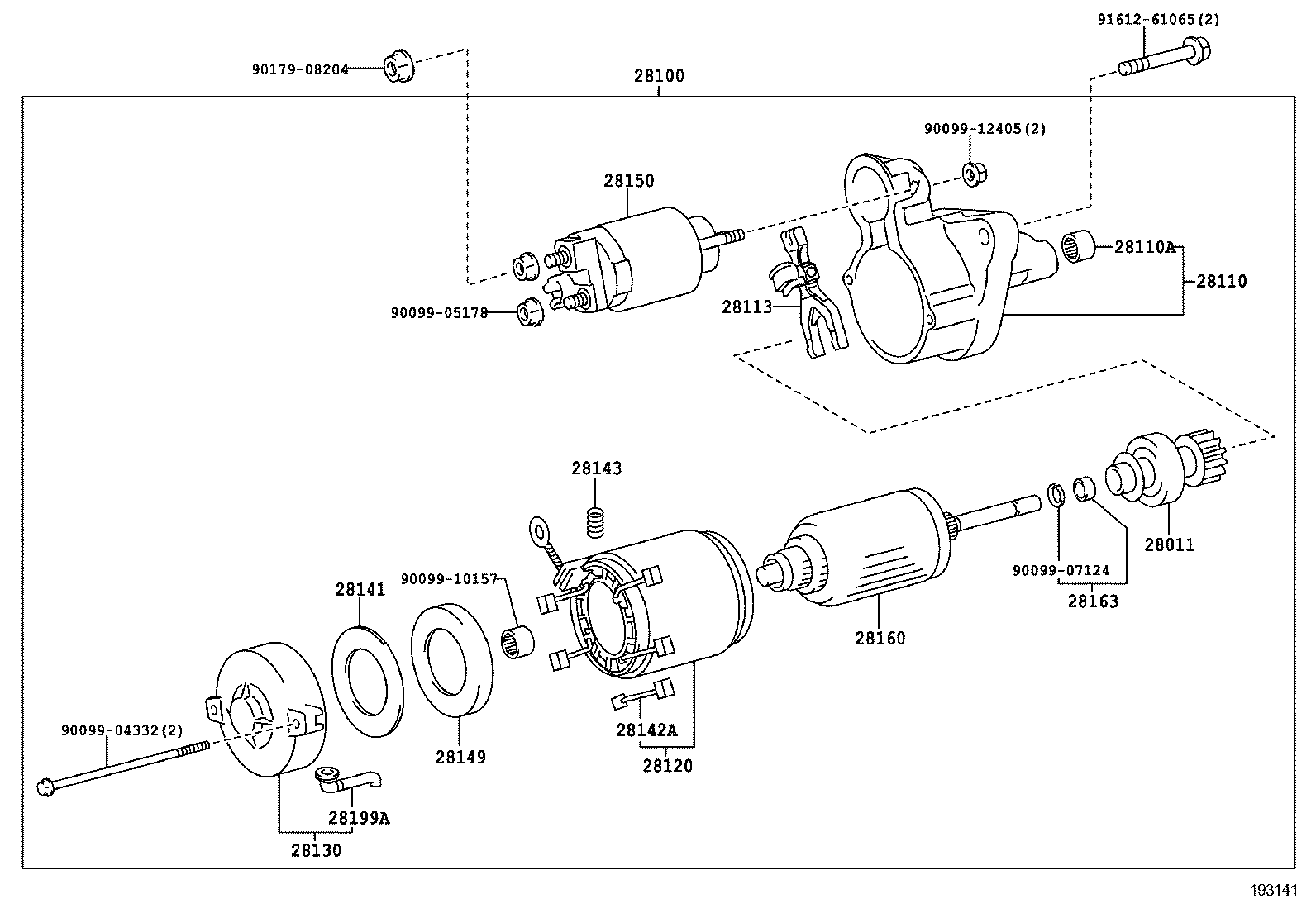

Click highlighted areas on diagram
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-40070 |
1KRFE..KGJ10 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-40120 |
1KRFE..KGJ10 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40120 |
1KRFE..KGJ10 |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10171 |
1KRFE..KGJ10 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-10020 |
1KRFE..KGJ10 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-40120 |
1KRFE..KGJ10 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-40120 |
1KRFE..KGJ10 |
1 | ||
| 28141 - INSULATOR, BRUSH HOLDER | ||||
| 28141-10020 |
1KRFE..KGJ10 |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-10020 |
1KRFE..KGJ10 |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-10020 |
1KRFE..KGJ10 |
4 | ||
| 28149 - PLATE, STARTER | ||||
| 28149-10020 |
1KRFE..KGJ10 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-40090 |
1KRFE..KGJ10 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40070 |
1KRFE..KGJ10 |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-10021 |
1KRFE..KGJ10 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-40070 |
1KRFE..KGJ10 |
1 | ||
| Common parts | ||||
| 90099-04332 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-10157 | ||||
| 90099-12405 | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
(0811- )1KRFE

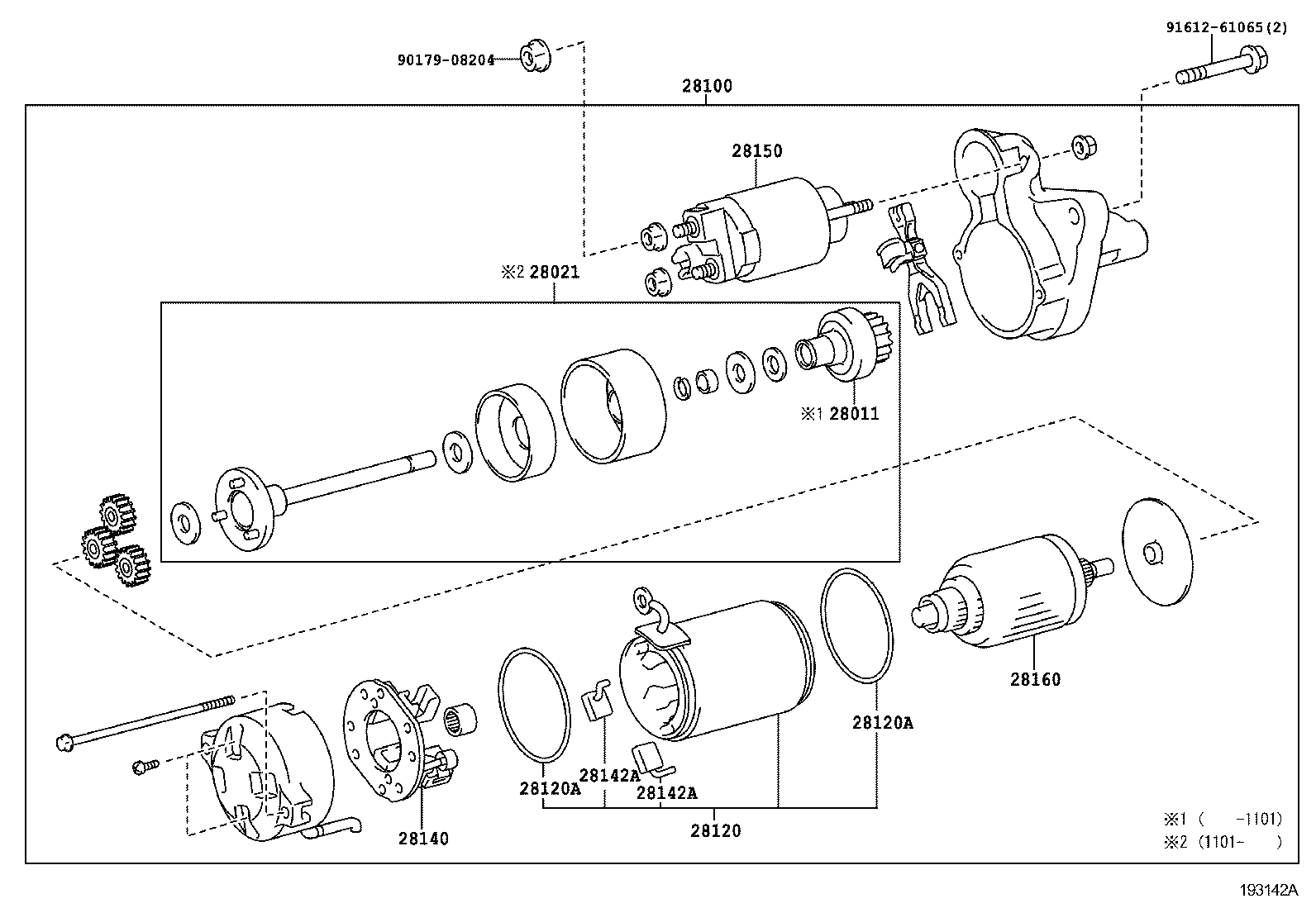

Click highlighted areas on diagram
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-40070 |
1KRFE..KGJ10 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-40120 |
1KRFE..KGJ10 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-40120 |
1KRFE..KGJ10 |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-10020 |
1KRFE..KGJ10 |
4 | ||
| 28142A - STARTER KIT | ||||
| 28142-10020 |
1KRFE..KGJ10 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-40090 |
1KRFE..KGJ10 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40070 |
1KRFE..KGJ10 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
