KGJ10R-BGMNGW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1KRFE

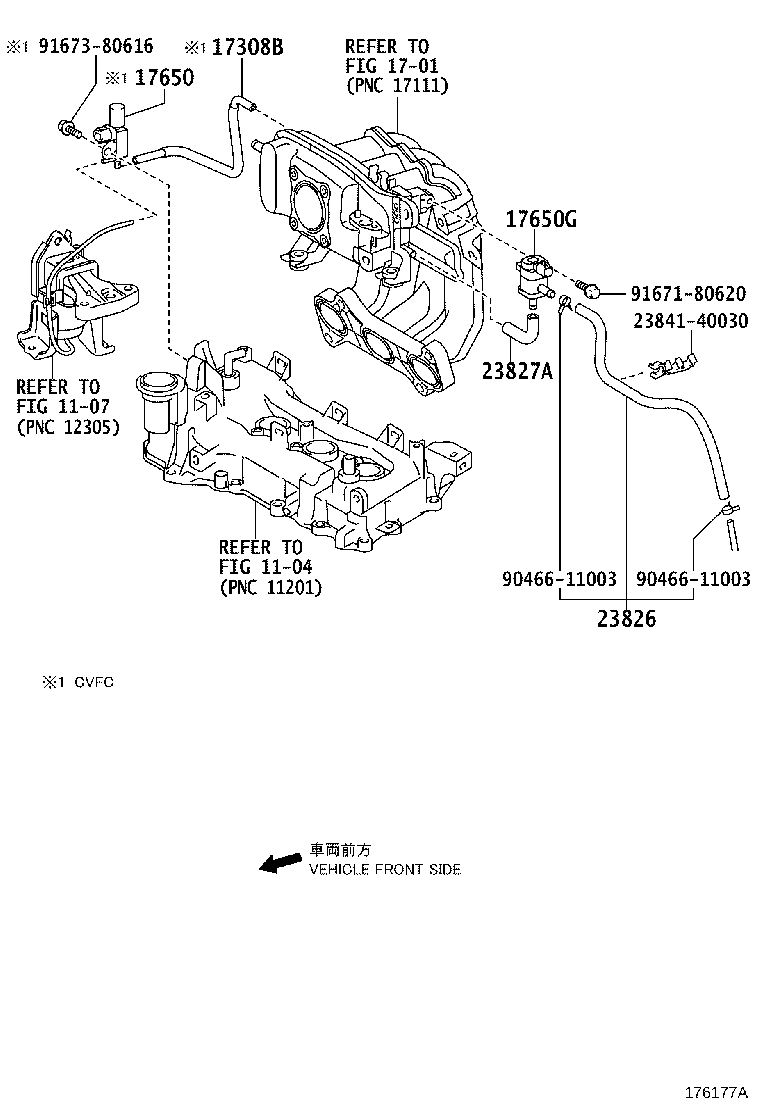

Click highlighted areas on diagram

diagram 1104 1107 1701 17308B 17650 17650G 23826 23827A 2384140030 9046611003 9046611003 9167180620 9167380616
Part # Description Qty Price
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12280

1KRFE..KGJ10

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-40020

1KRFE..KGJ10

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-40040

1KRFE..KGJ10

 1
Common parts
23841-40030
90466-11003
91671-80620
91673-80616
Linked diagrams
1104
1107
1701
