KGJ10R-BGMNGW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1KRFE

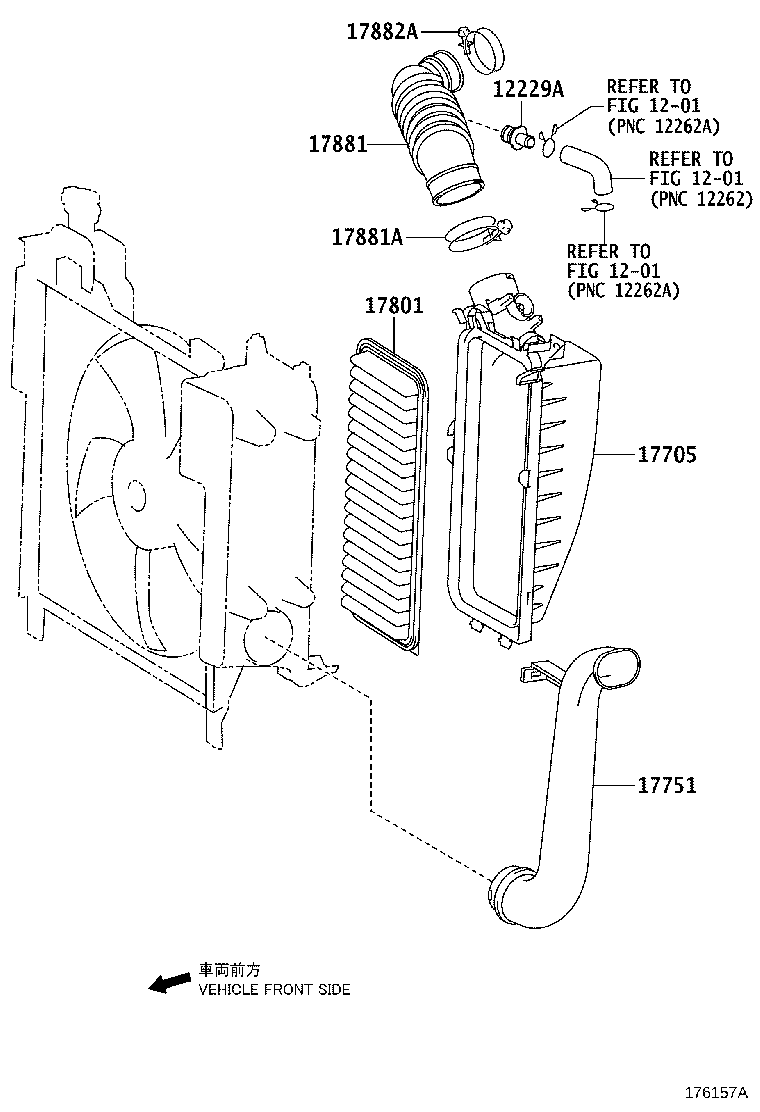

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229A - PIPE, VENTILATION | ||||
| 12229-21010 |
1KRFE..KGJ10 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-40120 |
1KRFE..KGJ10 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-40070 |
1KRFE..KGJ10 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-40040 |
1KRFE..KGJ10 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-40040 |
1KRFE..KGJ10 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1KRFE..KGJ10 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10560 |
1KRFE..KGJ10 |
1 | ||
| Linked diagrams | ||||
| 1201 | ||||
