KGJ10R-BGMNGW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1KRFE

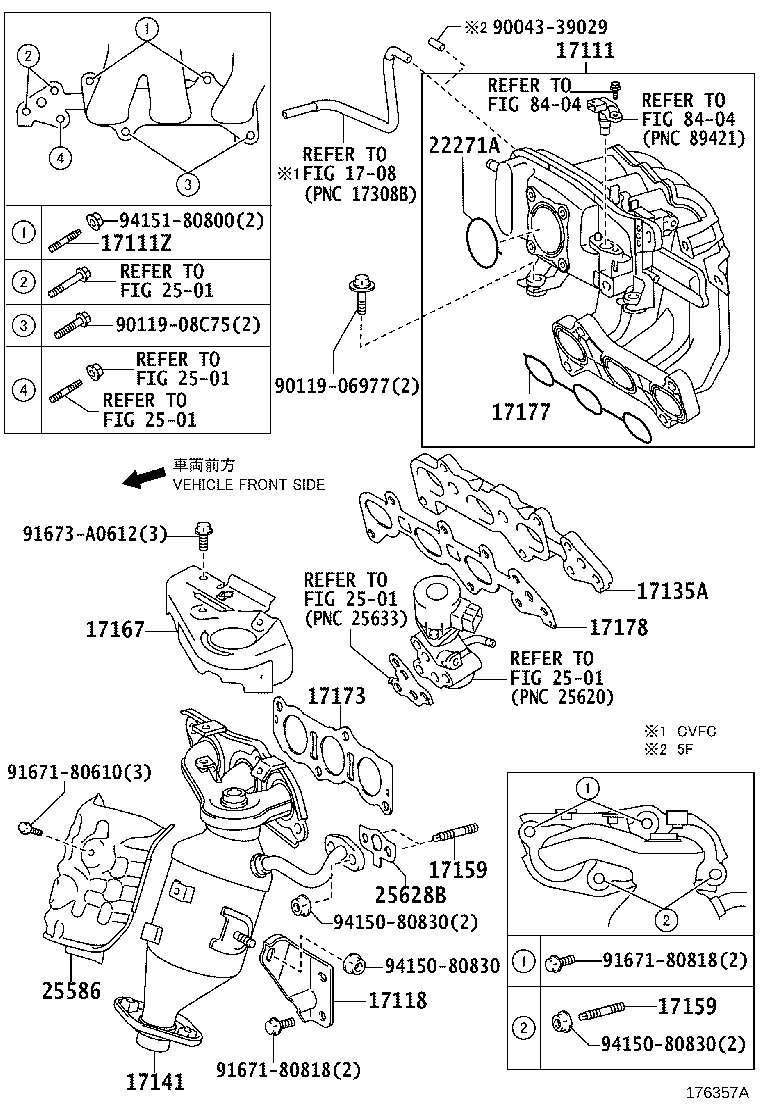

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-40030 |
1KRFE..KGJ10 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80845 |
1KRFE..KGJ10 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-40030 |
1KRFE..KGJ10 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-40020 |
1KRFE..KGJ10 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-40060 |
1KRFE..KGJ10 *114=TOYOTA/KR9/Y |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08055 |
1KRFE..KGJ10 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08055 |
1KRFE..KGJ10 |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-40010 |
1KRFE..KGJ10 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-40020 |
1KRFE..KGJ10 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-40020 |
1KRFE..KGJ10 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-40020 |
1KRFE..KGJ10 |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-40020 |
1KRFE..KGJ10 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-40010 |
1KRFE..KGJ10 |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-40020 |
1KRFE..KGJ10 |
1 | ||
| Common parts | ||||
| 90043-39029 | ||||
| 90119-06977 | ||||
| 90119-08C75 | ||||
| 91671-80610 | ||||
| 91671-80818 | ||||
| 91673-A0612 | ||||
| 94150-80830 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2501 | ||||
| 8404 | ||||
