KGJ10R-BGMNGW (2008)
Toyota Iq

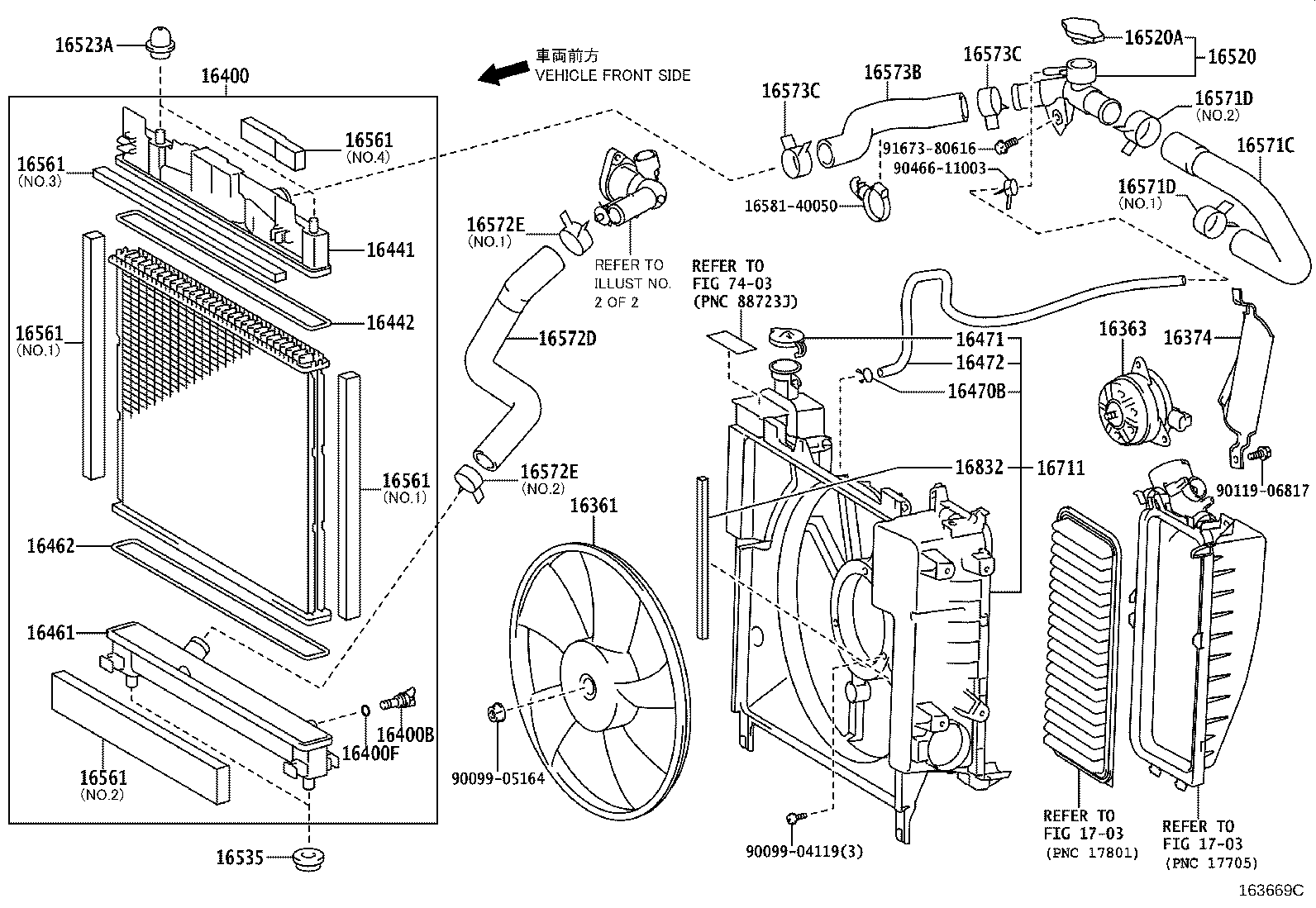

ILLUST NO. 1 OF 2(0811- )1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-40080 |
1KRFE..KGJ10 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-40010 |
1KRFE..KGJ10 |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16374-40010 |
1KRFE..KGJ10 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-40220 |
1KRFE..KGJ10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1KRFE..KGJ10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1KRFE..KGJ10 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-40220 |
1KRFE..KGJ10 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-11300 |
1KRFE..KGJ10 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-40220 |
1KRFE..KGJ10 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-11300 |
1KRFE..KGJ10 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KRFE..KGJ10 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23030 |
1KRFE..KGJ10 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-40020 |
1KRFE..KGJ10 |
1 | ||
| 16520 - FILLER ASSY, WATER | ||||
| 16520-40010 |
1KRFE..KGJ10 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-31480 |
1KRFE..KGJ10 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
1KRFE..KGJ10 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1KRFE..KGJ10 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40020 |
1KRFE..KGJ10 NO.1 |
2 | ||
| 16561-40030 |
1KRFE..KGJ10 NO.2 |
1 | ||
| 16561-40050 |
1KRFE..KGJ10 NO.4 |
1 | ||
| 16561-40040 |
1KRFE..KGJ10 NO.3 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40020 |
1KRFE..KGJ10 NO.1 |
2 | ||
| 16561-40030 |
1KRFE..KGJ10 NO.2 |
1 | ||
| 16561-40050 |
1KRFE..KGJ10 NO.4 |
1 | ||
| 16561-40040 |
1KRFE..KGJ10 NO.3 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40020 |
1KRFE..KGJ10 NO.1 |
2 | ||
| 16561-40030 |
1KRFE..KGJ10 NO.2 |
1 | ||
| 16561-40050 |
1KRFE..KGJ10 NO.4 |
1 | ||
| 16561-40040 |
1KRFE..KGJ10 NO.3 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40020 |
1KRFE..KGJ10 NO.1 |
2 | ||
| 16561-40030 |
1KRFE..KGJ10 NO.2 |
1 | ||
| 16561-40050 |
1KRFE..KGJ10 NO.4 |
1 | ||
| 16561-40040 |
1KRFE..KGJ10 NO.3 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40020 |
1KRFE..KGJ10 NO.1 |
2 | ||
| 16561-40030 |
1KRFE..KGJ10 NO.2 |
1 | ||
| 16561-40050 |
1KRFE..KGJ10 NO.4 |
1 | ||
| 16561-40040 |
1KRFE..KGJ10 NO.3 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-40050 |
1KRFE..KGJ10 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1KRFE..KGJ10 NO.2 |
1 | ||
| 96136-43601 |
1KRFE..KGJ10 NO.1 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1KRFE..KGJ10 NO.2 |
1 | ||
| 96136-43601 |
1KRFE..KGJ10 NO.1 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-40030 |
1KRFE..KGJ10 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43601 |
1KRFE..KGJ10 NO.1 |
1 | ||
| 96136-43901 |
1KRFE..KGJ10 NO.2 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43601 |
1KRFE..KGJ10 NO.1 |
1 | ||
| 96136-43901 |
1KRFE..KGJ10 NO.2 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-40010 |
1KRFE..KGJ10 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-43901 |
1KRFE..KGJ10 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-43901 |
1KRFE..KGJ10 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-40040 |
1KRFE..KGJ10 |
1 | ||
| 16832 - SEAL, FAN SHROUD | ||||
| 16832-40010 |
1KRFE..KGJ10 |
1 | ||
| Common parts | ||||
| 16581-40050 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06817 | ||||
| 90466-11003 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 7403 | ||||

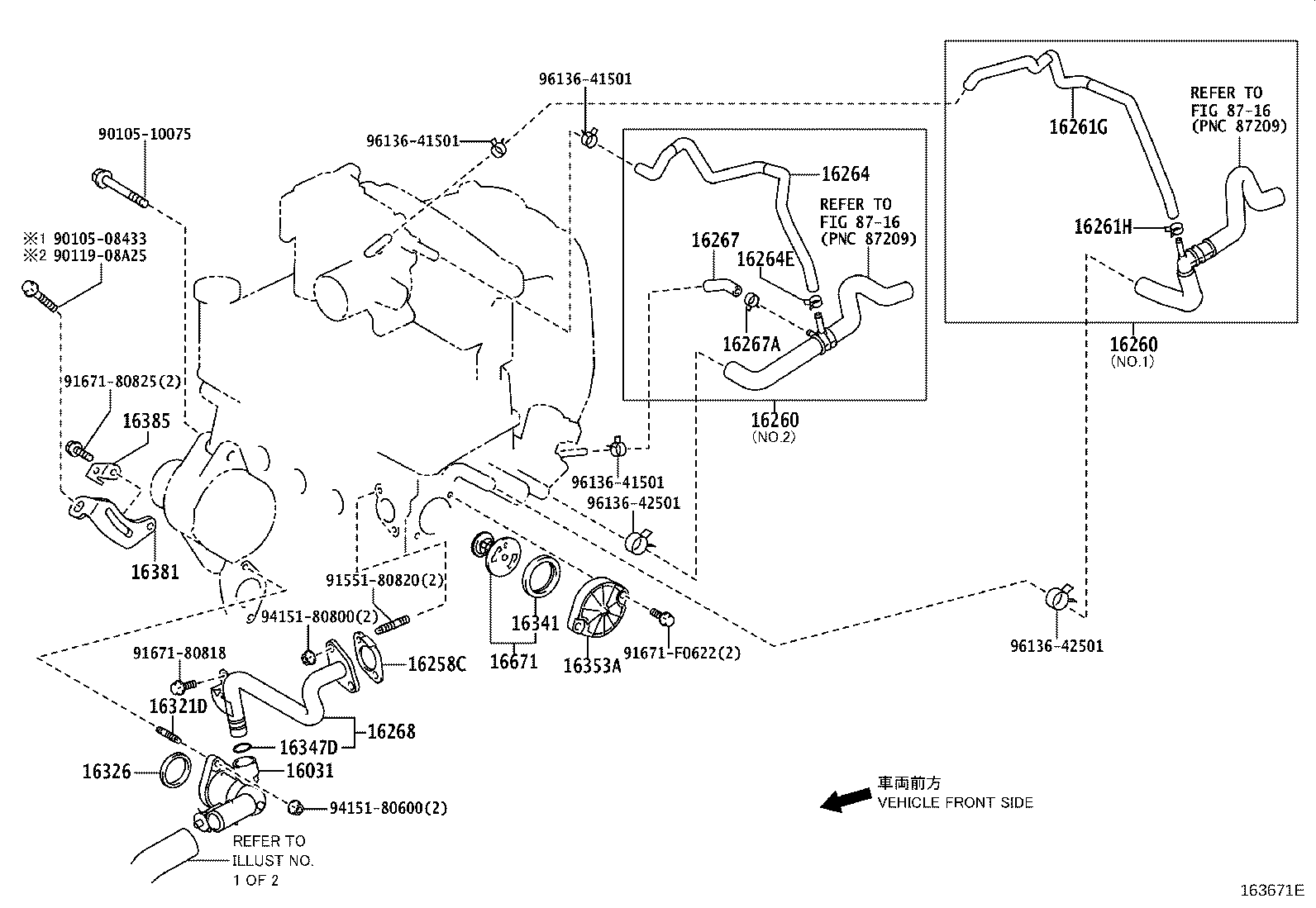

ILLUST NO. 2 OF 2(0811- )1KRFE..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16321-40020 |
1KRFE..KGJ10 |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-40020 |
1KRFE..KGJ10 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-40120 |
1KRFE..KGJ10..5F NO.1 |
1 | ||
| 16260-40130 |
1KRFE..KGJ10..5F NO.2 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-40120 |
1KRFE..KGJ10..5F NO.1 |
1 | ||
| 16260-40130 |
1KRFE..KGJ10..5F NO.2 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-40150 |
1KRFE..KGJ10 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
1KRFE..KGJ10 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-40060 |
1KRFE..KGJ10 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1KRFE..KGJ10 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-40040 |
1KRFE..KGJ10 L=60 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1KRFE..KGJ10 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-40060 |
1KRFE..KGJ10 |
1 | ||
| 16321D - BOLT, STUD(FOR WATER INLET) | ||||
| 90126-06029 |
1KRFE..KGJ10 |
2 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-40010 |
1KRFE..KGJ10 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1KRFE..KGJ10 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-40020 |
1KRFE..KGJ10 |
1 | ||
| 16353A - FLANGE, WATER BY-PASS | ||||
| 16353-40010 |
1KRFE..KGJ10 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-40060 |
1KRFE..KGJ10 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-40011 |
1KRFE..KGJ10 |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-40010 |
1KRFE..KGJ10 |
1 | ||
| Common parts | ||||
| 90105-08433 | ||||
| 90105-10075 | ||||
| 90119-08A25 | ||||
| 91551-80820 | ||||
| 91671-80818 | ||||
| 91671-80825 | ||||
| 91671-F0622 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96136-41501 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 8716 | ||||
