KGJ10R-BGMNGW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1KRFE

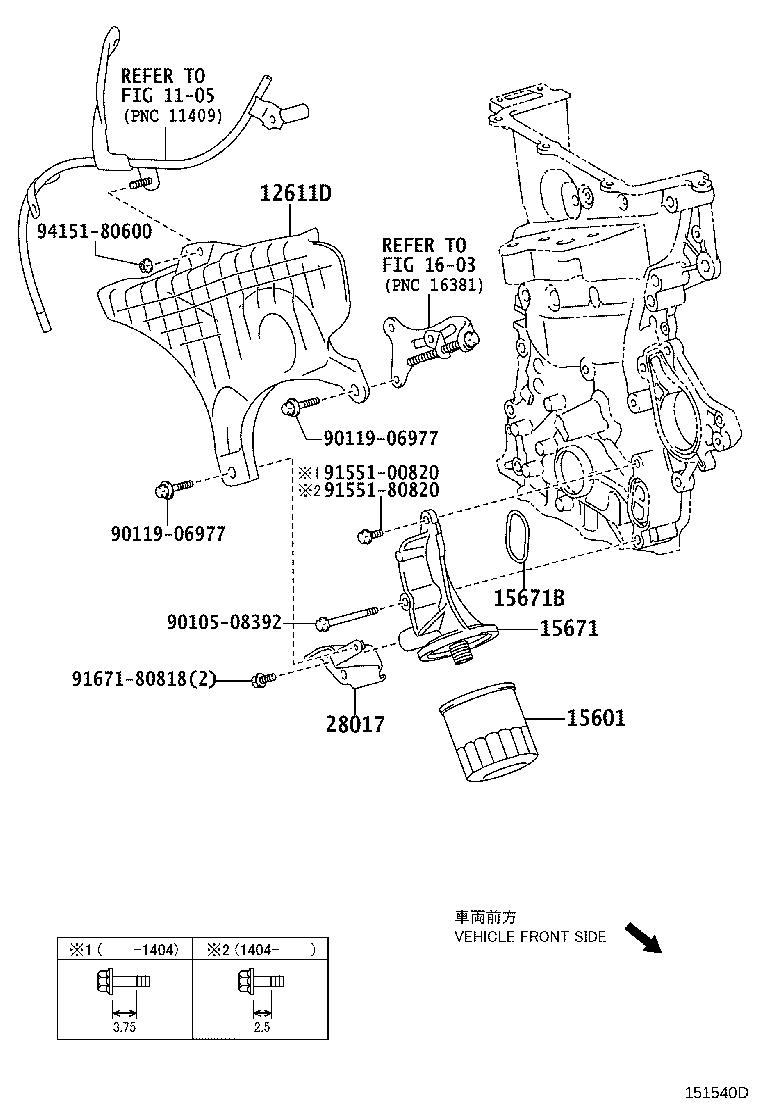

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-10003 |
1KRFE..KGJ10 |
1 | ||
| 15671 - BRACKET, OIL FILTER | ||||
| 15671-40030 |
1KRFE..KGJ10 |
1 | ||
| 15671B - GASKET, OIL FILTER BRACKET | ||||
| 15691-40020 |
1KRFE..KGJ10 |
1 | ||
| 28017 - STAY(FOR OIL FILTER BRACKET) | ||||
| 28017-40070 |
1KRFE..KGJ10 |
1 | ||
| Common parts | ||||
| 90105-08392 | ||||
| 90119-06977 | ||||
| 91551-00820 | ||||
| 91551-80820 | ||||
| 91671-80818 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1603 | ||||
