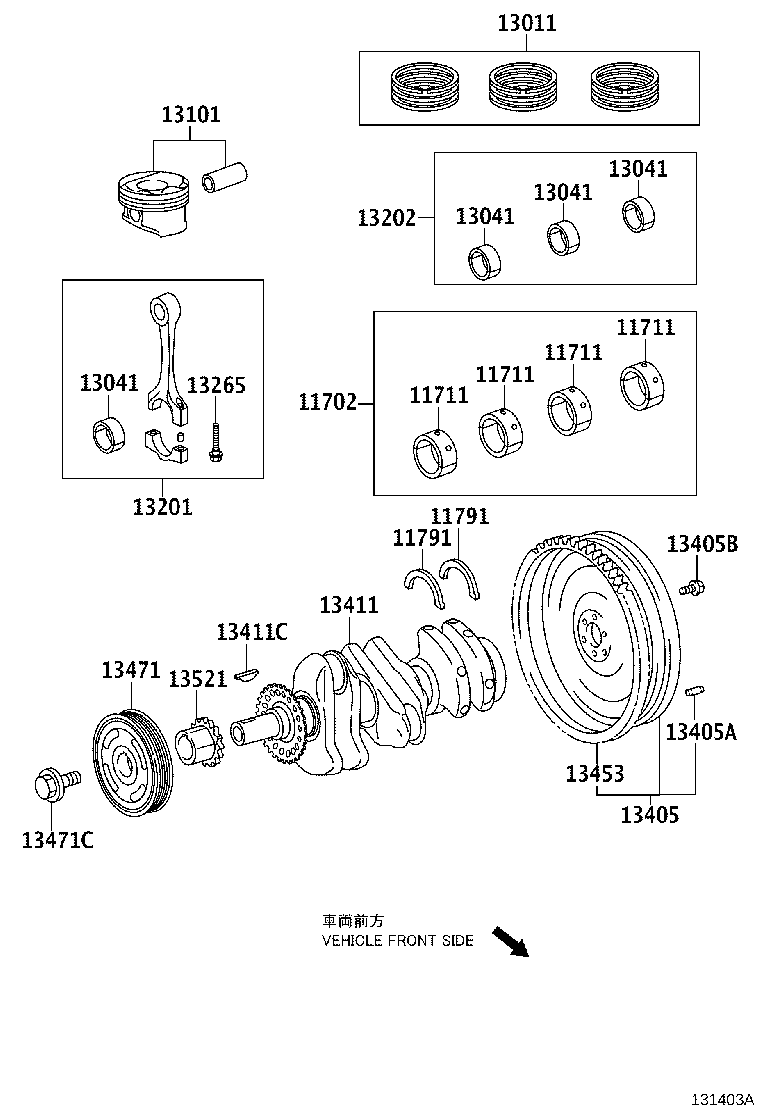

KGJ10R-BGMNGW (2008)
Toyota Iq
(0811- )1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-40040 |
1KRFE..KGJ10 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004002 |
1KRFE..KGJ10 MARK2 |
4 | ||
| 11701-4004005 |
1KRFE..KGJ10 MARK5 |
4 | ||
| 11701-4004003 |
1KRFE..KGJ10 MARK3 |
4 | ||
| 11701-4004004 |
1KRFE..KGJ10 MARK4 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004002 |
1KRFE..KGJ10 MARK2 |
4 | ||
| 11701-4004005 |
1KRFE..KGJ10 MARK5 |
4 | ||
| 11701-4004003 |
1KRFE..KGJ10 MARK3 |
4 | ||
| 11701-4004004 |
1KRFE..KGJ10 MARK4 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004002 |
1KRFE..KGJ10 MARK2 |
4 | ||
| 11701-4004005 |
1KRFE..KGJ10 MARK5 |
4 | ||
| 11701-4004003 |
1KRFE..KGJ10 MARK3 |
4 | ||
| 11701-4004004 |
1KRFE..KGJ10 MARK4 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004002 |
1KRFE..KGJ10 MARK2 |
4 | ||
| 11701-4004005 |
1KRFE..KGJ10 MARK5 |
4 | ||
| 11701-4004003 |
1KRFE..KGJ10 MARK3 |
4 | ||
| 11701-4004004 |
1KRFE..KGJ10 MARK4 |
4 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11792-40020 |
1KRFE..KGJ10 O/S 0.125 |
2 | ||
| 11791-40020 |
1KRFE..KGJ10 STD |
2 | ||
| 11793-40020 |
1KRFE..KGJ10 O/S 0.25 |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11792-40020 |
1KRFE..KGJ10 O/S 0.125 |
2 | ||
| 11791-40020 |
1KRFE..KGJ10 STD |
2 | ||
| 11793-40020 |
1KRFE..KGJ10 O/S 0.25 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-40050 |
1KRFE..KGJ10 STD |
1 | ||
| 13011-40051 |
1KRFE..KGJ10 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003101 |
1KRFE..KGJ10 MARK1,REFER REPAIR MANUAL |
3 | ||
| 13041-4003102 |
1KRFE..KGJ10 MARK2,REFER REPAIR MANUAL |
3 | ||
| 13041-4003103 |
1KRFE..KGJ10 MARK3,REFER REPAIR MANUAL |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003101 |
1KRFE..KGJ10 MARK1,REFER REPAIR MANUAL |
3 | ||
| 13041-4003102 |
1KRFE..KGJ10 MARK2,REFER REPAIR MANUAL |
3 | ||
| 13041-4003103 |
1KRFE..KGJ10 MARK3,REFER REPAIR MANUAL |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003101 |
1KRFE..KGJ10 MARK1,REFER REPAIR MANUAL |
3 | ||
| 13041-4003102 |
1KRFE..KGJ10 MARK2,REFER REPAIR MANUAL |
3 | ||
| 13041-4003103 |
1KRFE..KGJ10 MARK3,REFER REPAIR MANUAL |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003101 |
1KRFE..KGJ10 MARK1,REFER REPAIR MANUAL |
3 | ||
| 13041-4003102 |
1KRFE..KGJ10 MARK2,REFER REPAIR MANUAL |
3 | ||
| 13041-4003103 |
1KRFE..KGJ10 MARK3,REFER REPAIR MANUAL |
3 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-40030 |
1KRFE..KGJ10 STD |
3 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-29805 |
1KRFE..KGJ10 |
3 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-40031 |
1KRFE..KGJ10 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-21020 |
1KRFE..KGJ10 |
6 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-40070 |
1KRFE..KGJ10..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
1KRFE..KGJ10..5F L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10463 |
1KRFE..KGJ10..5F |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-40020 |
1KRFE..KGJ10 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90280-04001 |
1KRFE..KGJ10 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-23020 |
1KRFE..KGJ10..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-40030 |
1KRFE..KGJ10 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
1KRFE..KGJ10 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-40020 |
1KRFE..KGJ10 |
1 | ||
