KGJ10R-BGMNGW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1KRFE

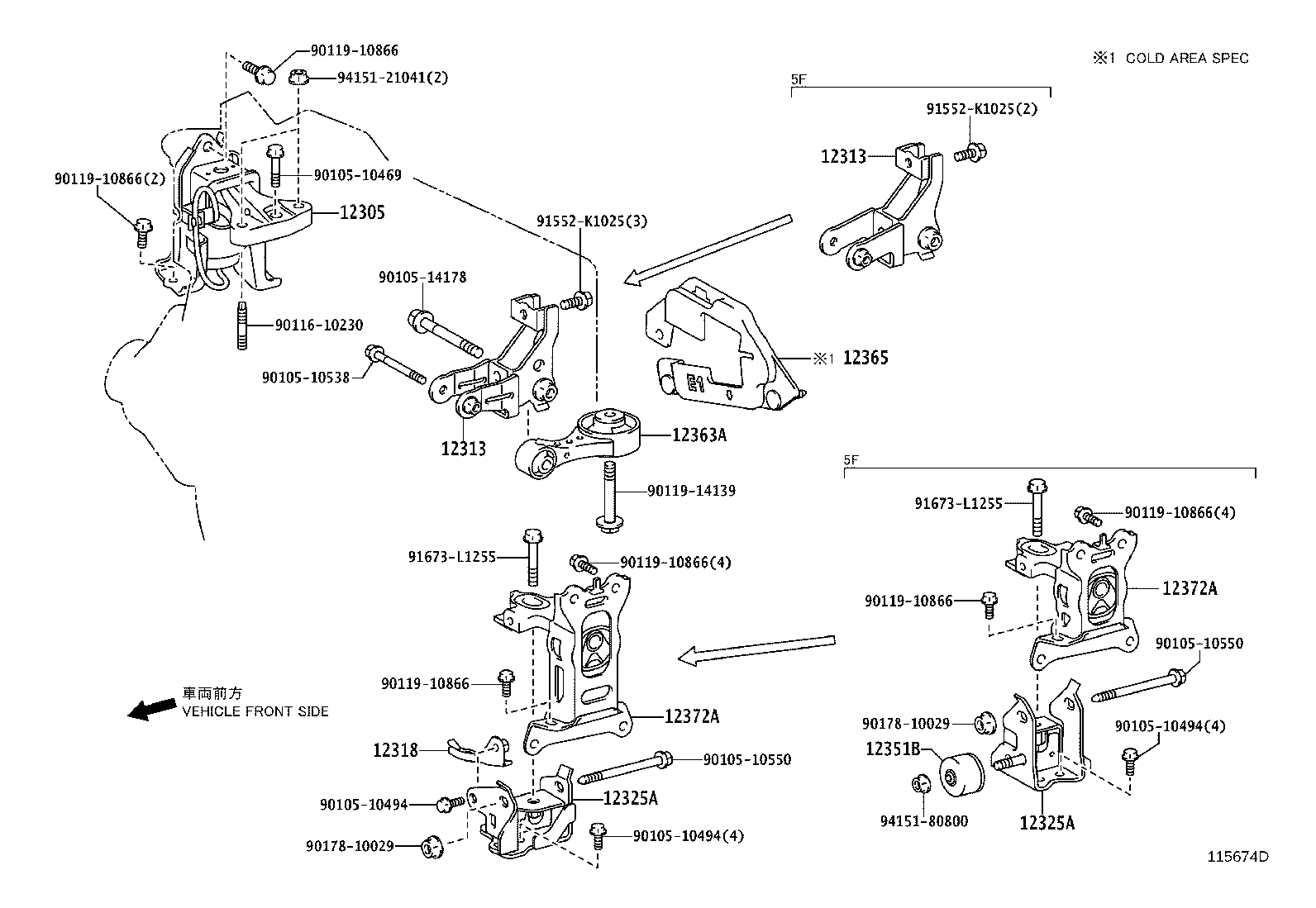

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-40080 |
1KRFE..KGJ10..5F |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-40030 |
1KRFE..KGJ10..5F |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-40030 |
1KRFE..KGJ10..5F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-40041 |
1KRFE..KGJ10..5F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-40041 |
1KRFE..KGJ10..5F |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-27010 |
1KRFE..KGJ10..5F |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-40050 |
1KRFE..KGJ10 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-40050 |
1KRFE..KGJ10..5F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-40050 |
1KRFE..KGJ10..5F |
1 | ||
| Common parts | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10538 | ||||
| 90105-10550 | ||||
| 90105-14178 | ||||
| 90116-10230 | ||||
| 90119-10866 | ||||
| 90119-14139 | ||||
| 90178-10029 | ||||
| 91552-K1025 | ||||
| 91673-L1255 | ||||
| 94151-21041 | ||||
| 94151-80800 | ||||
