KGJ10R-BGMNGW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1KRFE

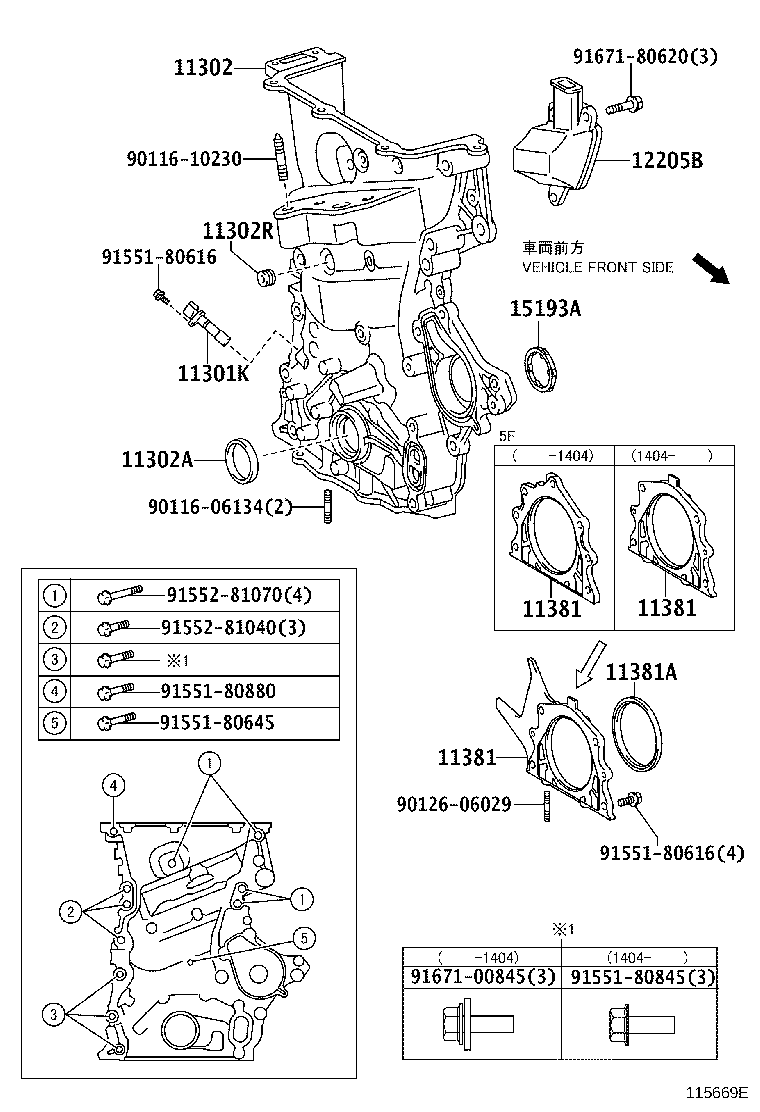

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05062 |
1KRFE..KGJ10 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-40050 |
1KRFE..KGJ10 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38091 |
1KRFE..KGJ10 |
1 | ||
| 11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER) | ||||
| 90344-53006 |
1KRFE..KGJ10 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-40010 |
1KRFE..KGJ10..5F |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-40010 |
1KRFE..KGJ10..5F |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-40010 |
1KRFE..KGJ10..5F |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-73002 |
1KRFE..KGJ10 |
1 | ||
| 12205B - CASE SUB-ASSY, VENTILATION | ||||
| 12205-40010 |
1KRFE..KGJ10 |
1 | ||
| 15193A - GASKET, OIL PUMP | ||||
| 15193-40010 |
1KRFE..KGJ10 |
1 | ||
| Common parts | ||||
| 90116-06134 | ||||
| 90116-10230 | ||||
| 90126-06029 | ||||
| 91551-80616 | ||||
| 91551-80645 | ||||
| 91551-80845 | ||||
| 91551-80880 | ||||
| 91552-81040 | ||||
| 91552-81070 | ||||
| 91671-00845 | ||||
| 91671-80620 | ||||
