KGJ10R-BGMNGW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

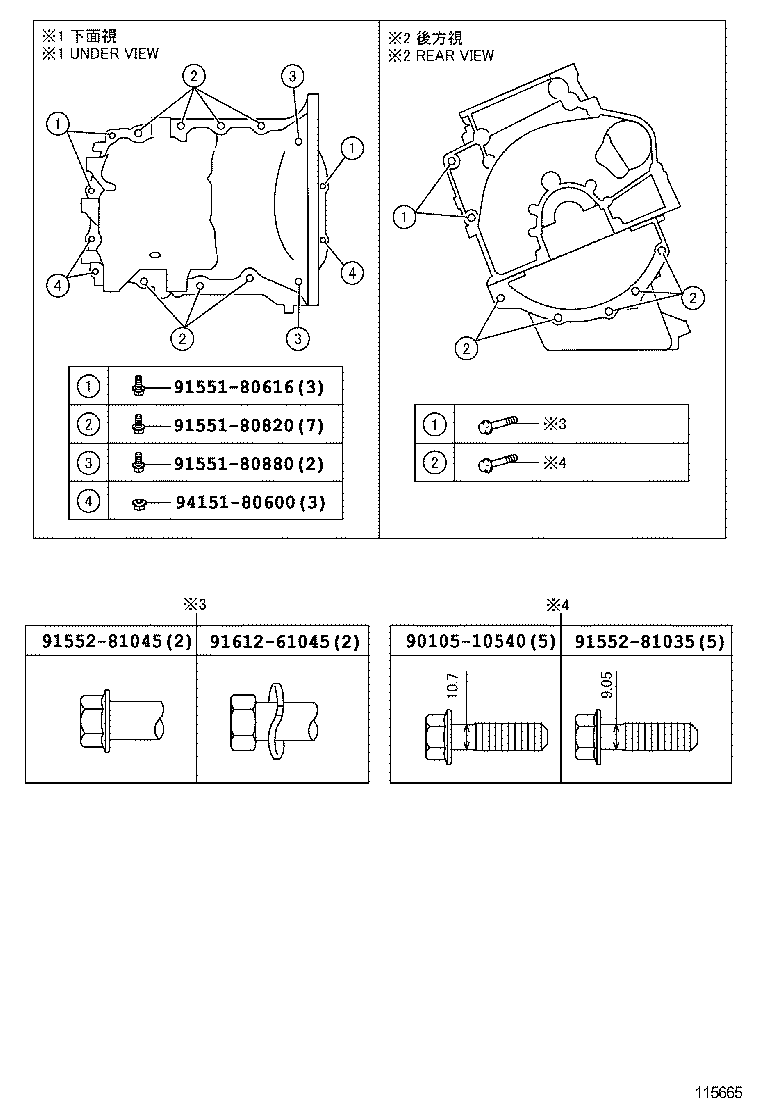

ILLUST NO. 2 OF 2(0811- )1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10540 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91551-80880 | ||||
| 91552-81035 | ||||
| 91552-81045 | ||||
| 91612-61045 | ||||
| 94151-80600 | ||||

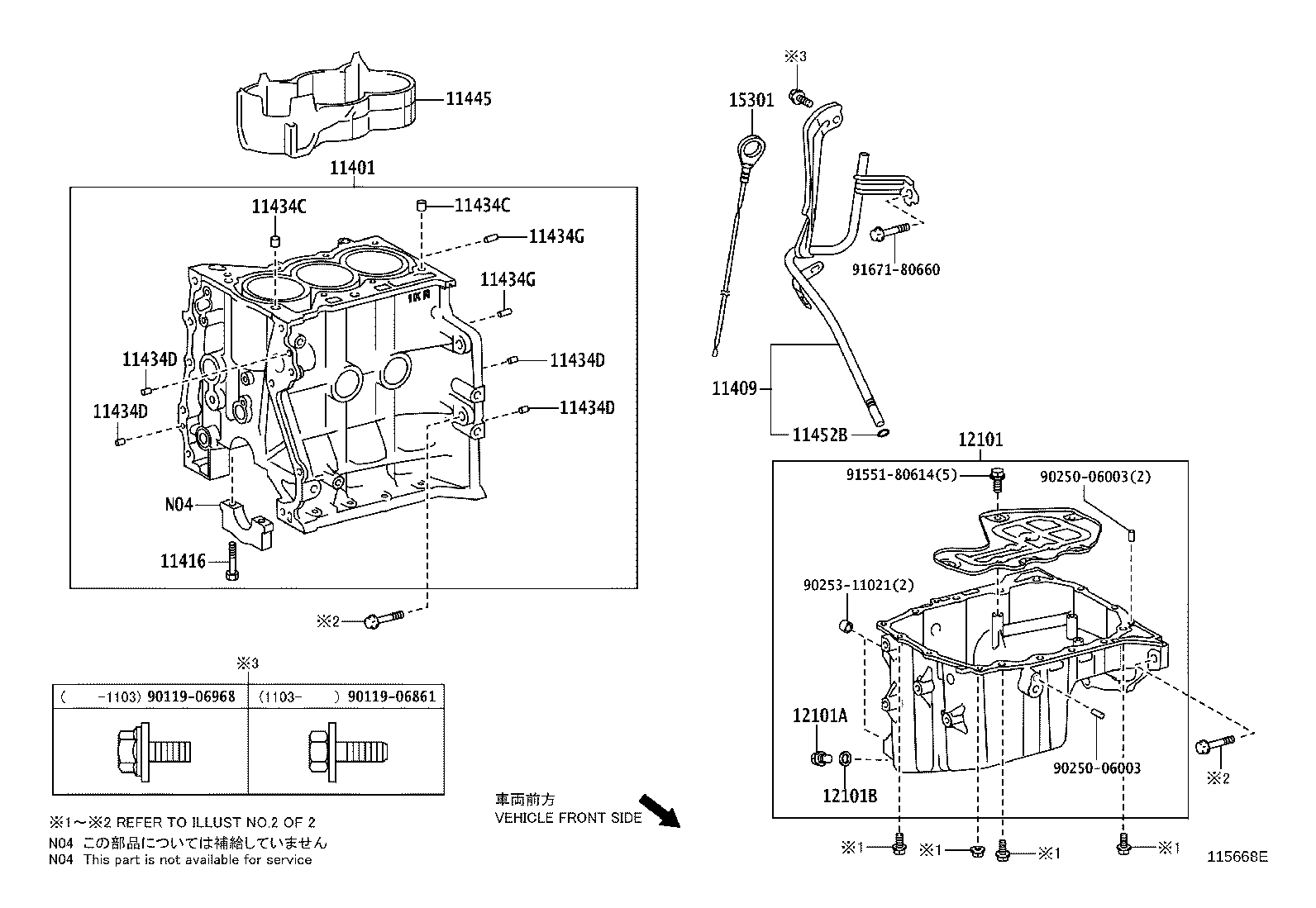

ILLUST NO. 1 OF 2(0811- )1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-40050 |
1KRFE..KGJ10 |
1 | ||
| 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE | ||||
| 11409-40040 |
1KRFE..KGJ10 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10531 |
1KRFE..KGJ10 |
8 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-12002 |
1KRFE..KGJ10 L=12,OD=12 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-12002 |
1KRFE..KGJ10 L=12,OD=12 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KGJ10 L=14,OD=6 |
5 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KGJ10 L=14,OD=6 |
5 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KGJ10 L=14,OD=6 |
5 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KGJ10 L=14,OD=6 |
5 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10232 |
1KRFE..KGJ10 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10232 |
1KRFE..KGJ10 |
2 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-40010 |
1KRFE..KGJ10 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96741-19010 |
1KRFE..KGJ10 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-40110 |
1KRFE..KGJ10 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12032 |
1KRFE..KGJ10 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1KRFE..KGJ10 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-40090 |
1KRFE..KGJ10 |
1 | ||
| Common parts | ||||
| 90119-06861 | ||||
| 90119-06968 | ||||
| 90250-06003 | ||||
| 90253-11021 | ||||
| 91551-80614 | ||||
| 91671-80660 | ||||
