KGJ10L-BGXNGW (2008)
Toyota Iq
ILLUST NO. 1 OF 9(0811- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-74100 |
KGJ10..LHD..CVFC |
1 | ||
| 82111-74110 |
KGJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74120 |
KGJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74120 |
KGJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-74400 |
KGJ10..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-74400 |
KGJ10..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74121 |
KGJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74111 |
KGJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74111 |
KGJ10..LHD..CVFC FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74121 |
KGJ10..LHD..CVFC COLD AREA SPEC(S RANK)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74101 |
KGJ10..LHD..CVFC |
1 | ||
| 82111-74121 |
KGJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-74111 |
KGJ10..LHD HEADLAMP-HALOGEN(SMOKE)&FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74121 |
KGJ10..LHD COLD AREA SPEC(S RANK)&HEADLAMP-HALOGEN(SMOKE)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74121 |
KGJ10..LHD COLD AREA SPEC(S RANK)&HEADLAMP-HALOGEN(SMOKE)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74111 |
KGJ10..LHD HEADLAMP-HALOGEN(SMOKE)&FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82111-74110 |
KGJ10..LHD PART NUMBER LABEL=82111-74110 |
1 | ||
| 82111-74100 |
KGJ10..LHD..CVFC PART NUMBER LABEL=82111-74100 |
1 | ||
| 82111-74400 |
KGJ10..LHD PART NUMBER LABEL=82111-74400 |
1 | ||
| 82111-74120 |
KGJ10..LHD PART NUMBER LABEL=82111-74120 |
1 | ||
| 82111-74121 |
KGJ10..LHD PART NUMBER LABEL=82111-74121 |
1 | ||
| 82111-74111 |
KGJ10..LHD PART NUMBER LABEL=82111-74111 |
1 | ||
| 82111-74111 |
KGJ10..LHD..CVFC PART NUMBER LABEL=82111-74111 |
1 | ||
| 82111-74121 |
KGJ10..LHD..CVFC PART NUMBER LABEL=82111-74121 |
1 | ||
| 82111-74121 |
KGJ10..LHD PART NUMBER LABEL=82111-74121 |
1 | ||
| 82111-74101 |
KGJ10..LHD..CVFC PART NUMBER LABEL=82111-74101 |
1 | ||
| 82111-74111 |
KGJ10..LHD PART NUMBER LABEL=82111-74111 |
1 | ||
| 82111-74121 |
KGJ10..LHD PART NUMBER LABEL=82111-74121 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-74130 |
NGJ10..LHD..R;KGJ10,NUJ10..LHD;NGJ10..LHD..CVFC |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-74110 |
NGJ10..R;KGJ10,NUJ10;NGJ10..CVFC |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-33240 |
NGJ10..R;NGJ10..LHD..6F..N;KGJ10,NGJ10..5F,CVFC |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-12570 |
NGJ10..R;NGJ10..LHD..6F..N;KGJ10,NGJ10..5F,CVFC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

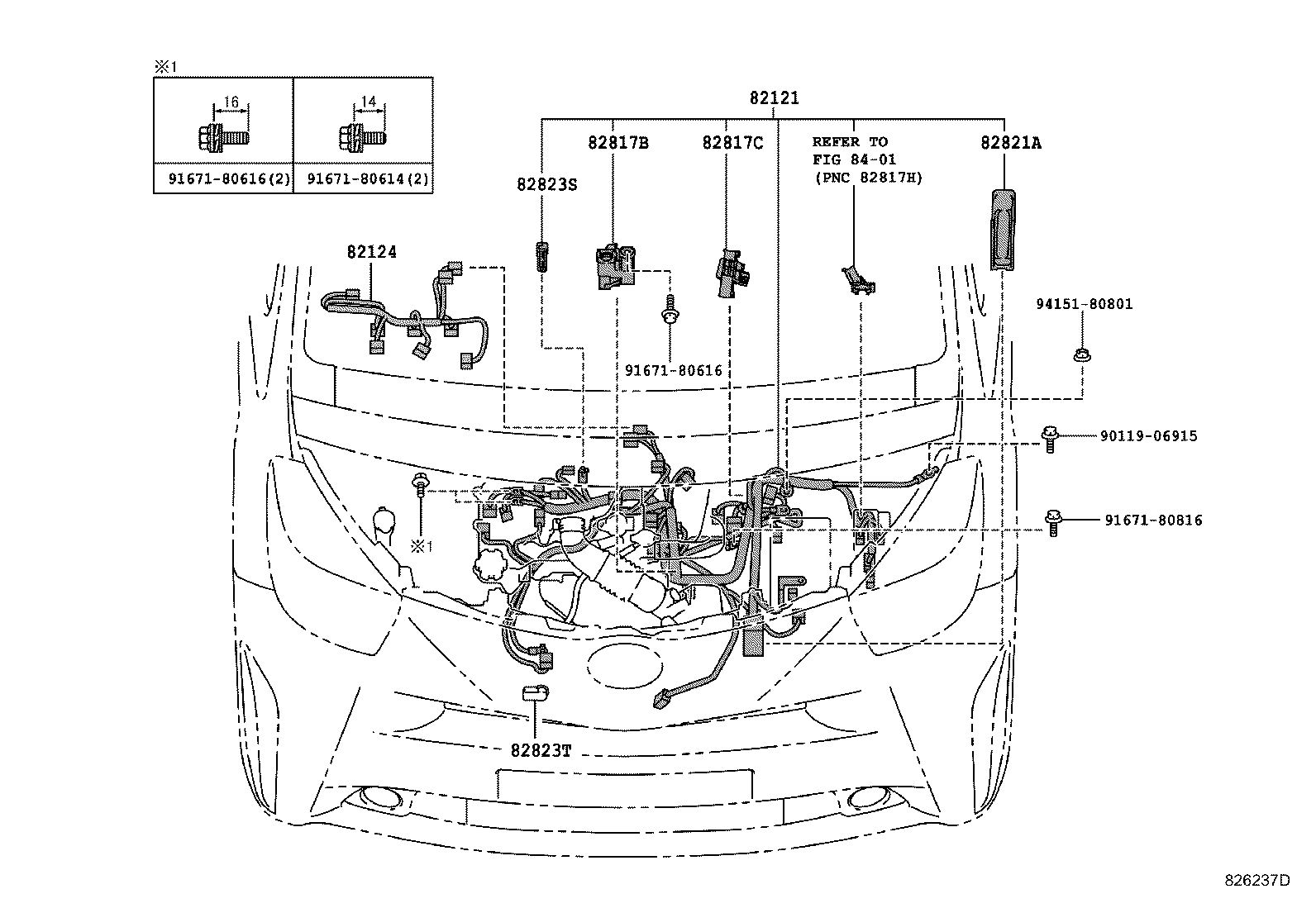

ILLUST NO. 2 OF 9(0811- )KGJ10
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-74012 |
KGJ10..CVFC |
1 | ||
| 82121-74011 |
KGJ10..CVFC |
1 | ||
| 82121-74013 |
KGJ10..CVFC |
1 | ||
| 82121-74010 |
KGJ10..CVFC |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-74010 |
KGJ10 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-74020 |
KGJ10..CVFC |
2 | ||
| 82817-74020 |
KGJ10..CVFC |
1 | ||
| 82817-74020 |
KGJ10 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-74030 |
KGJ10..CVFC |
1 | ||
| 82817-74030 |
KGJ10 |
1 | ||
| 82817-74030 |
KGJ10..CVFC |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
KGJ10..CVFC |
1 | ||
| 82821-12560 |
KGJ10..CVFC |
1 | ||
| 82821-12560 |
KGJ10..CVFC |
2 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30120 |
KGJ10..CVFC |
1 | ||
| 82823-30120 |
KGJ10..CVFC |
1 | ||
| 82823-30120 |
KGJ10..CVFC |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 9(0811- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-74200 |
KGJ10..LHD..CVFC |
1 | ||
| 82141-74210 |
KGJ10..LHD..CVFC DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82141-74230 |
KGJ10..LHD..CVFC DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74190 |
KGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74201 |
KGJ10,NGJ10..LHD..CVFC |
1 | ||
| 82141-74231 |
KGJ10,NGJ10..LHD..CVFC DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74211 |
KGJ10,NGJ10..LHD..CVFC DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82141-74191 |
KGJ10,NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74241 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82141-74241 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74241 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82141-74241 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82141-74241 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74241 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74162 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| 82141-74162 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82141-74162 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82141-74162 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82141-74162 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82141-74162 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 82141-74212 |
KGJ10,NGJ10..LHD..CVFC COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82141-74191 |
KGJ10,NGJ10..LHD..CVFC FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74202 |
KGJ10,NGJ10..LHD..CVFC |
1 | ||
| 82141-74231 |
KGJ10,NGJ10..LHD..CVFC COLD AREA SPEC(S RANK)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74192 |
KGJ10,NGJ10..LHD..CVFC FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74213 |
KGJ10,NGJ10..LHD..CVFC COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82141-74203 |
KGJ10,NGJ10..LHD..CVFC |
1 | ||
| 82141-74143 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82141-74143 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74143 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74193 |
KGJ10..LHD..N FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74243 |
KGJ10..LHD..R COLD AREA SPEC(S RANK)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82141-74233 |
KGJ10..LHD..N COLD AREA SPEC(S RANK)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74243 |
KGJ10..LHD..R COLD AREA SPEC(S RANK)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74243 |
KGJ10..LHD..R COLD AREA SPEC(S RANK)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74233 |
KGJ10..LHD..N COLD AREA SPEC(S RANK)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74143 |
KGJ10..LHD..R FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82141-74193 |
KGJ10..LHD..N FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82141-74210 |
KGJ10..LHD..CVFC PART NUMBER LABEL=82141-74210 |
1 | ||
| 82141-74200 |
KGJ10..LHD..CVFC PART NUMBER LABEL=82141-74200 |
1 | ||
| 82141-74230 |
KGJ10..LHD..CVFC PART NUMBER LABEL=82141-74230 |
1 | ||
| 82141-74243 |
KGJ10..LHD..R COLD AREA SPEC(S RANK)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82141-74231 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74231 |
1 | ||
| 82141-74201 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74201 |
1 | ||
| 82141-74191 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74191 |
1 | ||
| 82141-74211 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74211 |
1 | ||
| 82141-74190 |
KGJ10..LHD..CVFC PART NUMBER LABEL=82141-74190 |
1 | ||
| 82141-74241 |
KGJ10..LHD..R PART NUMBER LABEL=82141-74241 |
1 | ||
| 82141-74162 |
KGJ10..LHD..R PART NUMBER LABEL=82141-74162 |
1 | ||
| 82141-74231 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74231 |
1 | ||
| 82141-74212 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74212 |
1 | ||
| 82141-74191 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74191 |
1 | ||
| 82141-74202 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74202 |
1 | ||
| 82141-74192 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74192 |
1 | ||
| 82141-74243 |
KGJ10..LHD..R PART NUMBER LABEL=82141-74243 |
1 | ||
| 82141-74233 |
KGJ10..LHD..N PART NUMBER LABEL=82141-74233 |
1 | ||
| 82141-74193 |
KGJ10..LHD..N PART NUMBER LABEL=82141-74193 |
1 | ||
| 82141-74143 |
KGJ10..LHD..R PART NUMBER LABEL=82141-74143 |
1 | ||
| 82141-74213 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74213 |
1 | ||
| 82141-74203 |
KGJ10,NGJ10..LHD..CVFC PART NUMBER LABEL=82141-74203 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-74010 |
KGJ10,NGJ10..LHD..R;KGJ10,NGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-22140 |
NGJ10..R;KGJ10..5F;NUJ10..RHD;KGJ10,NGJ10..LHD..CVFC |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-74010 |
NGJ10..R;KGJ10..5F;NUJ10..RHD;KGJ10,NGJ10..LHD..CVFC |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-74010 |
NGJ10..R;KGJ10..5F;NUJ10..RHD;KGJ10,NGJ10..LHD..CVFC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 9(0811- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-74070 |
KGJ10,NGJ10,NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74070 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74090 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&REAR SEAT-WITHOUT |
1 | ||
| 82151-74080 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 82151-74060 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 82151-74090 |
KGJ10..LHD REAR SEAT-WITHOUT |
1 | ||
| 82151-74080 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| 82151-74090 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&REAR SEAT-WITHOUT |
1 | ||
| 82151-74070 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74110 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82151-74110 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82151-74110 |
KGJ10..LHD FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82151-74071 |
KGJ10,NGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74111 |
KGJ10..LHD FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82151-74111 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82151-74111 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82151-74071 |
KGJ10,NGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74071 |
KGJ10,NGJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74111 |
KGJ10..LHD WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82151-74111 |
KGJ10..LHD WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82151-74071 |
KGJ10..LHD..R;KGJ10..LHD..CVFC WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74071 |
KGJ10..LHD..R;KGJ10..LHD..CVFC WIRELESS DOOR LOCK-SMART KEY&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74071 |
KGJ10..LHD..R;KGJ10..LHD..CVFC WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74091 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&REAR SEAT-WITHOUT |
1 | ||
| 82151-74081 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| 82151-74061 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 82151-74091 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&REAR SEAT-WITHOUT |
1 | ||
| 82151-74091 |
KGJ10..LHD REAR SEAT-WITHOUT |
1 | ||
| 82151-74081 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 82151-74071 |
KGJ10,NGJ10..LHD WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74081 |
KGJ10,NGJ10..LHD..R OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER) |
1 | ||
| 82151-74091 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&REAR SEAT-WITHOUT |
1 | ||
| 82151-74091 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)&REAR SEAT-WITHOUT |
1 | ||
| 82151-74081 |
KGJ10,NGJ10,NUJ10..LHD..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER) |
1 | ||
| 82151-74071 |
KGJ10,NUJ10..LHD;NGJ10..LHD..CVFC WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82151-74081 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-74060 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 82152-74070 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74070 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74090 |
KGJ10..LHD REAR SEAT-WITHOUT |
1 | ||
| 82152-74090 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&REAR SEAT-WITHOUT |
1 | ||
| 82152-74080 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| 82152-74090 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&REAR SEAT-WITHOUT |
1 | ||
| 82152-74110 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82152-74110 |
KGJ10..LHD FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82152-74080 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 82152-74110 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82152-74070 |
KGJ10,NGJ10,NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74061 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 82152-74071 |
KGJ10,NGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74091 |
KGJ10..LHD REAR SEAT-WITHOUT |
1 | ||
| 82152-74071 |
KGJ10,NGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74091 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&REAR SEAT-WITHOUT |
1 | ||
| 82152-74111 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82152-74111 |
KGJ10..LHD FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82152-74071 |
KGJ10,NGJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74111 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82152-74091 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&REAR SEAT-WITHOUT |
1 | ||
| 82152-74081 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 82152-74081 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| 82152-74111 |
KGJ10..LHD..CVFC OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82152-74111 |
KGJ10..LHD WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82152-74111 |
KGJ10..LHD..CVFC OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82152-74071 |
NGJ10..LHD..6F;KGJ10,NUJ10..LHD..(6F,CVFC) OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74111 |
KGJ10..LHD WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82152-74071 |
NGJ10..LHD..6F;KGJ10,NUJ10..LHD..(6F,CVFC) OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74071 |
KGJ10..LHD..R;KGJ10..LHD..CVFC WIRELESS DOOR LOCK-SMART KEY&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74071 |
KGJ10..LHD..R;KGJ10..LHD..CVFC WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74071 |
KGJ10..LHD..R;KGJ10..LHD..CVFC WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74062 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 82152-74082 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 82152-74082 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| 82152-74071 |
KGJ10,NGJ10..LHD WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74092 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&REAR SEAT-WITHOUT |
1 | ||
| 82152-74082 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER) |
1 | ||
| 82152-74092 |
KGJ10..LHD REAR SEAT-WITHOUT |
1 | ||
| 82152-74092 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER&REAR SEAT-WITHOUT |
1 | ||
| 82152-74071 |
KGJ10,NGJ10,NUJ10..LHD WIRELESS DOOR LOCK-SMART KEY&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82152-74092 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)&REAR SEAT-WITHOUT |
1 | ||
| 82152-74082 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER) |
1 | ||
| 82152-74092 |
KGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)&REAR SEAT-WITHOUT |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 82184-74020 |
KGJ10,NGJ10,NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-74030 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82185-74010 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 6 OF 9(0811- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-74020 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-74020 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-74020 |
KGJ10..LHD REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-74020 |
KGJ10..LHD REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-74020 |
KGJ10,NUJ10..LHD;NGJ10..LHD..6F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-74020 |
KGJ10..LHD REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-74020 |
KGJ10,NUJ10..LHD;NGJ10..LHD..6F..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-74020 |
KGJ10..LHD SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 82191-74020 |
KGJ10..LHD REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-74020 |
KGJ10..LHD REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
ILLUST NO. 7 OF 9(0811- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12Q41 | ||||
| 82715-74130 | ||||
| 82715-74140 | ||||
| 82715-74170 | ||||
| 82715-74180 | ||||
| 82715-74190 | ||||
| 82715-74200 | ||||
| 82715-74210 | ||||
| 82715-74250 | ||||
| 82715-74260 | ||||
| 82715-74270 | ||||
| 82715-74320 | ||||
| 82715-74330 | ||||
| 82715-74340 | ||||
| 82715-74350 | ||||
| 82715-74360 | ||||
| 82715-74370 | ||||
| 82715-74380 | ||||
| 82715-74390 | ||||
| 82715-74400 | ||||
| 82715-74460 | ||||
| 82715-74470 | ||||
| 82715-74480 | ||||
| 82715-74540 | ||||
| 82715-74550 | ||||
| 82715-74560 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
ILLUST NO. 8 OF 9(0811- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10908 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
ILLUST NO. 9 OF 9(0811- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52330 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12460 | ||||
| 90980-12490 | ||||
| 90980-12551 | ||||
| 90980-12699 | ||||
ILLUST NO. 5 OF 9(0811- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-74100 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 82161-74160 |
KGJ10..LHD REAR SEAT-WITHOUT |
1 | ||
| 82161-74130 |
KGJ10,NGJ10,NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82161-74150 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82161-74130 |
KGJ10,NGJ10,NUJ10..LHD FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82161-74131 |
KGJ10,NGJ10,NUJ10..LHD FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82161-74140 |
KGJ10..LHD FRONT AIR CONDITIONER-AUTO&REAR SEAT-WITHOUT |
1 | ||
| 82161-74151 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82161-74131 |
KGJ10,NGJ10,NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82161-74161 |
KGJ10..LHD REAR SEAT-WITHOUT |
1 | ||
| 82161-74100 |
KGJ10,NGJ10,NUJ10..LHD PART NUMBER LABEL=82161-74100 |
1 | ||
| 82161-74150 |
KGJ10,NGJ10,NUJ10..LHD PART NUMBER LABEL=82161-74150 |
1 | ||
| 82161-74101 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 82161-74140 |
KGJ10..LHD PART NUMBER LABEL=82161-74140 |
1 | ||
| 82161-74130 |
KGJ10,NGJ10,NUJ10..LHD PART NUMBER LABEL=82161-74130 |
1 | ||
| 82161-74101 |
KGJ10,NGJ10,NUJ10..LHD PART NUMBER LABEL=82161-74101 |
1 | ||
| 82161-74161 |
KGJ10..LHD PART NUMBER LABEL=82161-74161 |
1 | ||
| 82161-74131 |
KGJ10,NGJ10,NUJ10..LHD PART NUMBER LABEL=82161-74131 |
1 | ||
| 82161-74151 |
KGJ10,NGJ10,NUJ10..LHD PART NUMBER LABEL=82161-74151 |
1 | ||
| 82161-74160 |
KGJ10..LHD PART NUMBER LABEL=82161-74160 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-74031 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82171-74011 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 82171-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 82171-74030 |
KGJ10,NGJ10,NUJ10 PART NUMBER LABEL=82171-74030 |
1 | ||
| 82171-74011 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC PART NUMBER LABEL=82171-74011 |
1 | ||
| 82171-74030 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82171-74010 |
KGJ10,NGJ10,NUJ10 PART NUMBER LABEL=82171-74010 |
1 | ||
| 82171-74031 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC PART NUMBER LABEL=82171-74031 |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-74010 |
KGJ10,NGJ10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
