KGJ10L-BGXNGW (2008)

Toyota Iq

Production Nov 2008 - May 2014
Engine 1KRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )CVFC

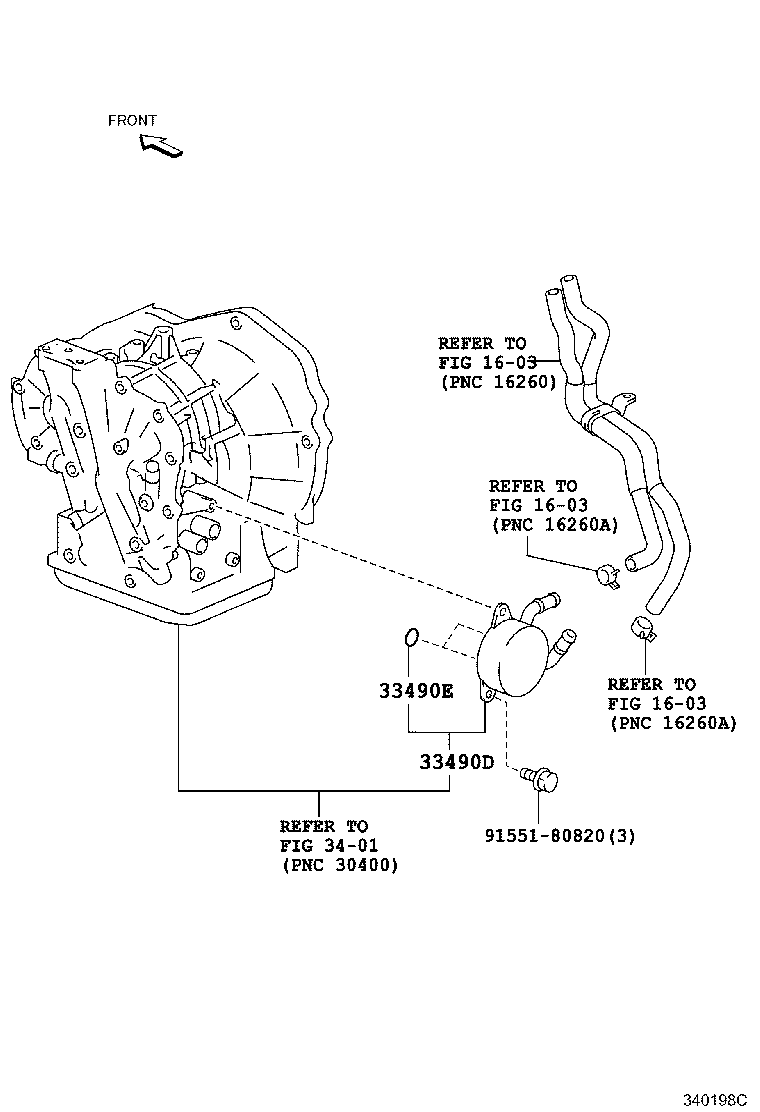

Click highlighted areas on diagram

K41A,K41B

diagram 1603 1603 1603 33490D 33490E 3401 9155180820
Part # Description Qty Price
33490D - COOLER ASSY, TRANSMISSION OIL
33490-74010

KGJ10,NGJ10..CVFC

 1
33490E - RING, O (FOR TRANSMISSION OIL COOLER)
90301-19020

KGJ10,NGJ10..CVFC

 2
Common parts
91551-80820
Linked diagrams
1603
3401
