LN85L-TRMRSWA (1989)
Toyota Hilux (Vwp)

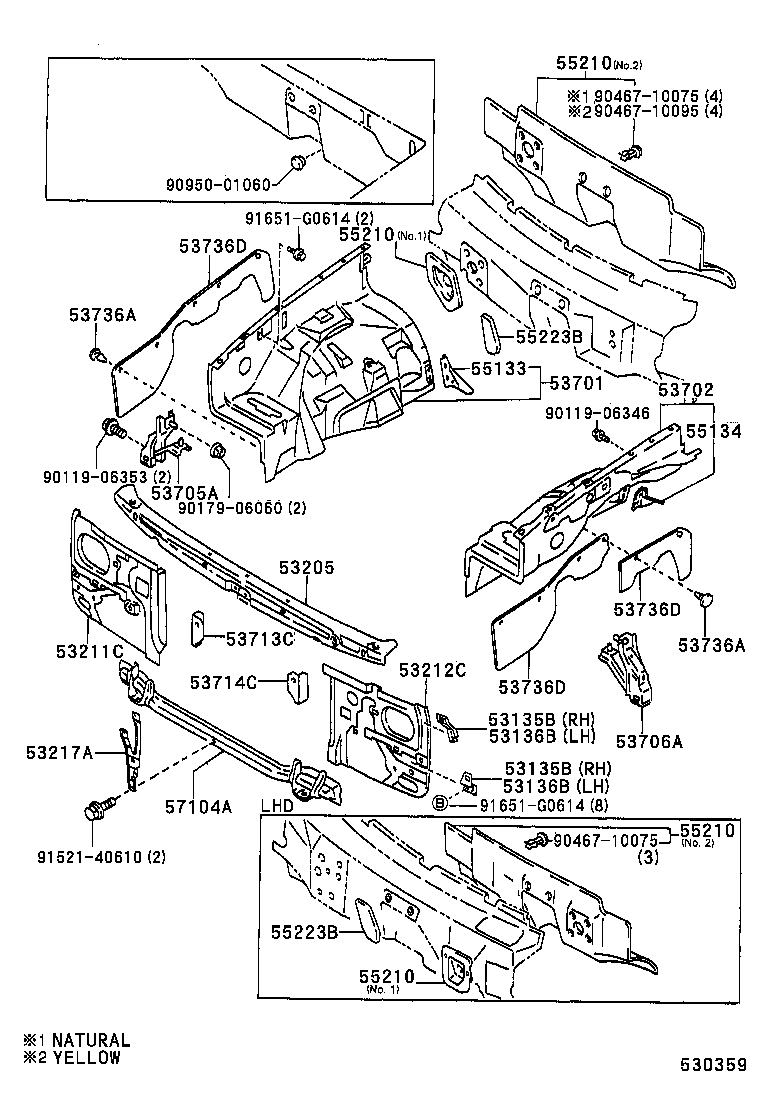

ILLUST NO. 1 OF 3(8901- )VWP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53135B - BRACKET, HEAD LAMP DOOR, RH | ||||
| 53135-89101 |
LN85,YN85..VWP UPPER |
1 | ||
| 53135-89102 |
LN85,YN85..VWP LOWER |
1 | ||
| 53135-89101 |
LN85,YN85..VWP..LHD *FRG,UPPER |
1 | ||
| 53135-89102 |
LN85,YN85..VWP..LHD *FRG,LOWER |
1 | ||
| 53135B - BRACKET, HEAD LAMP DOOR, RH | ||||
| 53135-89101 |
LN85,YN85..VWP UPPER |
1 | ||
| 53135-89102 |
LN85,YN85..VWP LOWER |
1 | ||
| 53135-89101 |
LN85,YN85..VWP..LHD *FRG,UPPER |
1 | ||
| 53135-89102 |
LN85,YN85..VWP..LHD *FRG,LOWER |
1 | ||
| 53136B - BRACKET, HEAD LAMP DOOR, LH | ||||
| 53136-89106 |
LN85,YN85..VWP LOWER |
1 | ||
| 53136-89105 |
LN85,YN85..VWP..LHD *FRG,UPPER |
1 | ||
| 53136-89105 |
LN85,YN85..VWP UPPER |
1 | ||
| 53136-89106 |
LN85,YN85..VWP..LHD *FRG,LOWER |
1 | ||
| 53136B - BRACKET, HEAD LAMP DOOR, LH | ||||
| 53136-89106 |
LN85,YN85..VWP LOWER |
1 | ||
| 53136-89105 |
LN85,YN85..VWP..LHD *FRG,UPPER |
1 | ||
| 53136-89105 |
LN85,YN85..VWP UPPER |
1 | ||
| 53136-89106 |
LN85,YN85..VWP..LHD *FRG,LOWER |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-04010 |
LN85,YN85..VWP |
1 | ||
| 53216-89110 |
LN85,YN85..VWP |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53211-04020 |
LN85,YN85..VWP..LHD *FRG |
1 | ||
| 53211-04020 |
LN85,YN85..VWP..LHD..CBU *FRG |
1 | ||
| 53211-89123 |
LN85,YN85..VWP |
1 | ||
| 53211-04020 |
LN85,YN85..VWP |
1 | ||
| 53211-04010 |
LN85,YN85..VWP |
1 | ||
| 53211-04010 |
LN85,YN85..VWP..CBU |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53212-04010 |
LN85,YN85..VWP..CBU |
1 | ||
| 53212-04020 |
LN85,YN85..VWP..LHD..CBU *FRG |
1 | ||
| 53212-04020 |
LN85,YN85..VWP..LHD *FRG |
1 | ||
| 53212-04010 |
LN85,YN85..VWP |
1 | ||
| 53212-04020 |
LN85,YN85..VWP |
1 | ||
| 53212-89120 |
LN85,YN85..VWP |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-35010 |
LN85,YN85..VWP |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-89214 |
LN85..VWP (J) |
1 | ||
| 53701-04070 |
LN85..VWP..LHD (L) |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-89242 |
LN85..VWP COLD SPEC |
1 | ||
| 53702-35140 |
LN85..VWP COLD SPEC |
1 | ||
| 53702-04111 |
LN85..VWP..LHD |
1 | ||
| 53702-04110 |
LN85..VWP..LHD |
1 | ||
| 53702-35130 |
LN85..VWP (J) |
1 | ||
| 53702-04120 |
LN85..VWP..LHD COLD SPEC |
1 | ||
| 53702-04121 |
LN85..VWP..LHD COLD SPEC |
1 | ||
| 53705A - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-89102 |
LN85,YN85..VWP |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-89102 |
LN85,YN85..VWP |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-89104 |
LN85,YN85..VWP |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-89104 |
LN85,YN85..VWP |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10107 |
LN85..VWP |
11 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10107 |
LN85..VWP |
11 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89120 |
LN85..VWP MARK=EE |
1 | ||
| 53736-89118 |
LN85..VWP MARK=AA |
1 | ||
| 53736-89119 |
LN85..VWP MARK=BB |
1 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89120 |
LN85..VWP MARK=EE |
1 | ||
| 53736-89118 |
LN85..VWP MARK=AA |
1 | ||
| 53736-89119 |
LN85..VWP MARK=BB |
1 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89120 |
LN85..VWP MARK=EE |
1 | ||
| 53736-89118 |
LN85..VWP MARK=AA |
1 | ||
| 53736-89119 |
LN85..VWP MARK=BB |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-89103 |
LN85,YN85..VWP |
1 | ||
| 55133-89103 |
LN85,YN85..VWP |
1 | ||
| 55133-89103 |
LN85..VWP |
1 | ||
| 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH | ||||
| 55134-89103 |
LN85..VWP |
1 | ||
| 55134-89103 |
LN85,YN85..VWP |
1 | ||
| 55134-89103 |
LN85,YN85..VWP |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89158 |
LN85..VWP |
1 | ||
| 55210-35130 |
LN85..VWP..LHD NO.2 |
1 | ||
| 55210-89151 |
LN85,YN85..VWP..LHD NO.1 |
1 | ||
| 55210-35131 |
LN85..VWP..LHD |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89158 |
LN85..VWP |
1 | ||
| 55210-35130 |
LN85..VWP..LHD NO.2 |
1 | ||
| 55210-89151 |
LN85,YN85..VWP..LHD NO.1 |
1 | ||
| 55210-35131 |
LN85..VWP..LHD |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89158 |
LN85..VWP |
1 | ||
| 55210-35130 |
LN85..VWP..LHD NO.2 |
1 | ||
| 55210-89151 |
LN85,YN85..VWP..LHD NO.1 |
1 | ||
| 55210-35131 |
LN85..VWP..LHD |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89158 |
LN85..VWP |
1 | ||
| 55210-35130 |
LN85..VWP..LHD NO.2 |
1 | ||
| 55210-89151 |
LN85,YN85..VWP..LHD NO.1 |
1 | ||
| 55210-35131 |
LN85..VWP..LHD |
1 | ||
| 55223B - INSULATOR, DASH PANEL HEAT, NO.1 | ||||
| 55225-89103 |
LN85..VWP..LHD |
1 | ||
| 55223B - INSULATOR, DASH PANEL HEAT, NO.1 | ||||
| 55225-89103 |
LN85..VWP..LHD |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-04010 |
LN85,YN85..VWP |
1 | ||
| 57104-89109 |
LN85,YN85..VWP |
1 | ||
| Common parts | ||||
| 90119-06346 | ||||
| 90119-06353 | ||||
| 90179-06060 | ||||
| 90467-10075 | ||||
| 90467-10095 | ||||
| 90950-01060 | ||||
| 91521-40610 | ||||
| 91651-G0614 | ||||
ILLUST NO. 2 OF 3(8901- )VWP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

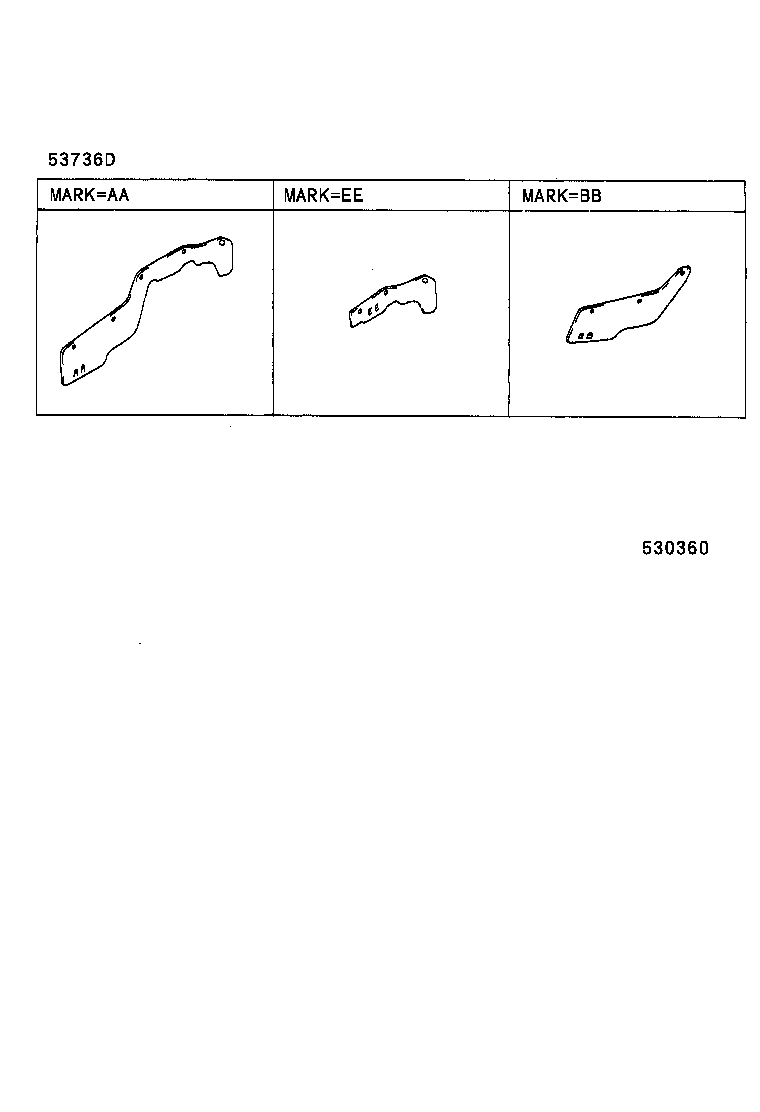

| 53736D - SEAL, FENDER APRON | ||||
| 53736-89120 |
LN85..VWP MARK=EE |
1 | ||
| 53736-89118 |
LN85..VWP MARK=AA |
1 | ||
| 53736-89119 |
LN85..VWP MARK=BB |
1 | ||

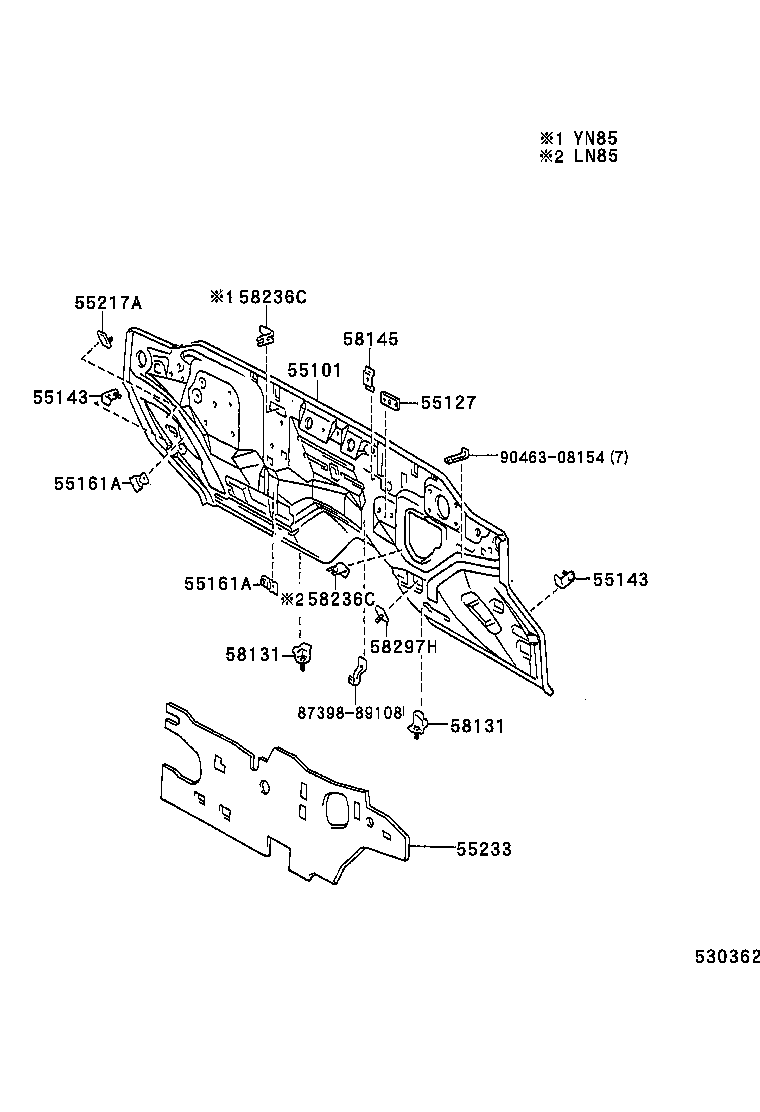

ILLUST NO. 3 OF 3(8901- )VWP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55111-89236 |
LN85,YN85..VWP..LHD |
1 | ||
| 55127 - REINFORCEMENT, PARKING BRAKE | ||||
| 55127-89102 |
LN85,YN85..VWP..LHD |
1 | ||
| 55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1 | ||||
| 55143-89102 |
LN85,YN85..VWP LH |
1 | ||
| 55143-89103 |
LN85,YN85..VWP RH |
1 | ||
| 55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1 | ||||
| 55143-89102 |
LN85,YN85..VWP LH |
1 | ||
| 55143-89103 |
LN85,YN85..VWP RH |
1 | ||
| 55161A - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-89106 |
LN85,YN85..VWP..LHD RH |
1 | ||
| 55161-89107 |
LN85,YN85..VWP..LHD CTR |
1 | ||
| 55161A - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-89106 |
LN85,YN85..VWP..LHD RH |
1 | ||
| 55161-89107 |
LN85,YN85..VWP..LHD CTR |
1 | ||
| 55217A - RETAINER, DASH PANEL SILENCER | ||||
| 55217-89103 |
LN85,YN85..VWP..LHD |
3 | ||
| 55233 - SHEET, DASH PANEL INSULATOR | ||||
| 55233-89111 |
LN85..VWP |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-89117 |
LN85..VWP |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-89117 |
LN85..VWP |
1 | ||
| 58145 - RETAINER, FRONT FLOOR HEAT INSULATOR SUPPORT, NO.1 | ||||
| 58145-89101 |
LN85..VWP |
1 | ||
| 58236C - BRACKET, CLUTCH TUBE | ||||
| 58236-89104 |
LN85..VWP..LHD |
1 | ||
| 58236C - BRACKET, CLUTCH TUBE | ||||
| 58236-89104 |
LN85..VWP..LHD |
1 | ||
| 58297H - RETAINER, FLOOR CLAMP | ||||
| 58297-89107 |
LN85,YN85..VWP |
1 | ||
| Common parts | ||||
| 87398-89108 | ||||
| 90463-08154 | ||||
