LN85L-TRMRSWA (1989)

Toyota Hilux (Vwp)

Production Jan 1989 - Feb 1997
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8901-9702)2L..VWP..LHD

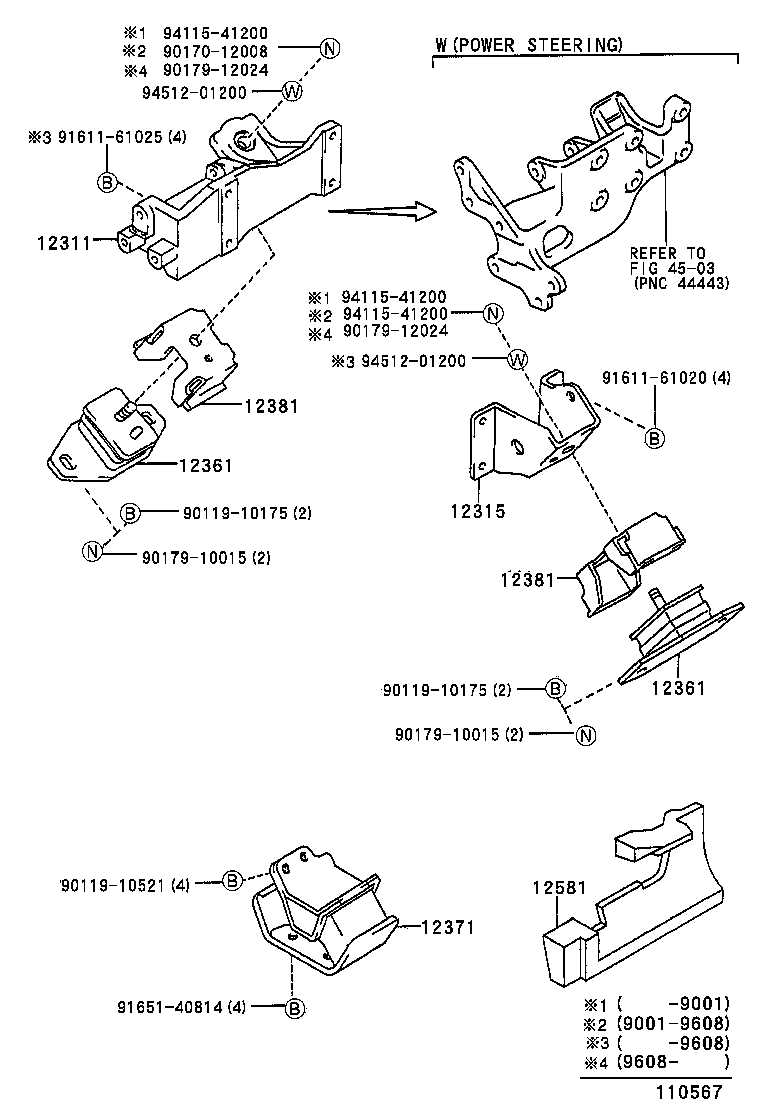

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12581 4503 9011910175 9011910175 9011910521 9017012008 9017910015 9017910015 9017912024 9017912024 9161161020 9161161025 9165140814 9411541200 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54090

2L..LN85..VWP

 1
12311-54091

2L..LN85..VWP

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54021

2L..LN85..VWP..LHD

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54111

2L..LN85..VWP

 2
12361-54110

2L..LN85..VWP

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54111

2L..LN85..VWP

 2
12361-54110

2L..LN85..VWP

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

2L..LN85..VWP

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

2L..LN85..VWP

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

2L..LN85..VWP

 2
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-54010

2L..LN85..VWP

 1
Common parts
90119-10175
90119-10521
90170-12008
90179-10015
90179-12024
91611-61020
91611-61025
91651-40814
94115-41200
94512-01200
Linked diagrams
4503
