YN90L-CRMDSW (1988)
Toyota Hilux (Jpp)

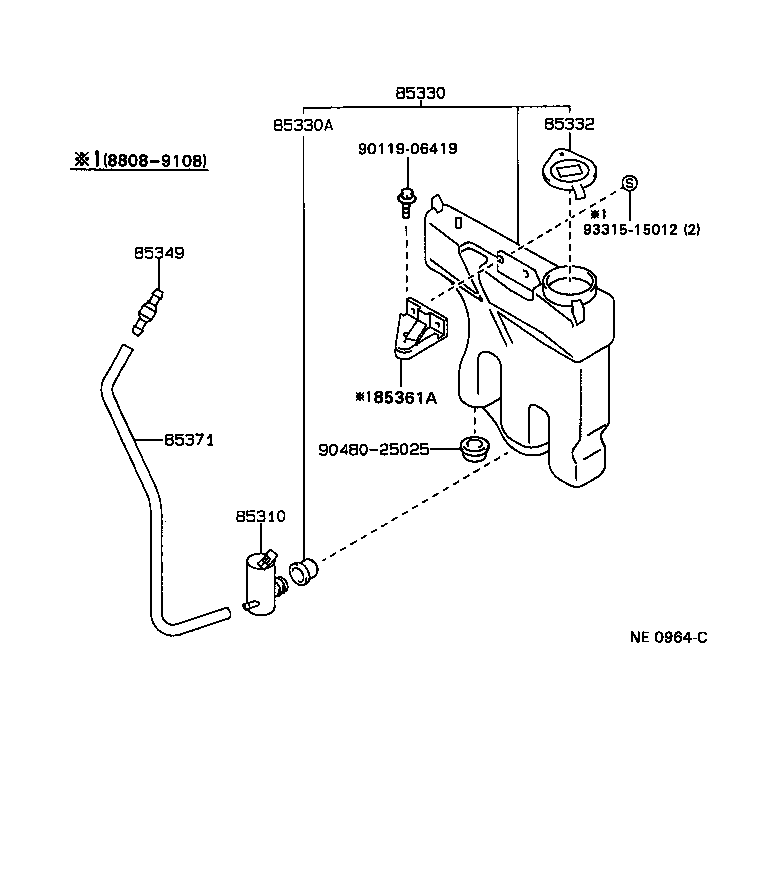

ILLUST NO. 1 OF 2(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85330-35060 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-89134 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 85315-35050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-89134 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85332-12650 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85332-22470 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-89135 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 85361-89137 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=500 |
1 | ||
| 90446-07001 |
LN105,110,85,90,RN110,YN110,85,90..JPP..LHD *H,L=600 |
1 | ||
| 90099-33656 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=540 |
1 | ||
| 90446-07001 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=1070 |
1 | ||
| Common parts | ||||
| 90119-06419 | ||||
| 90480-25025 | ||||
| 93315-15012 | ||||

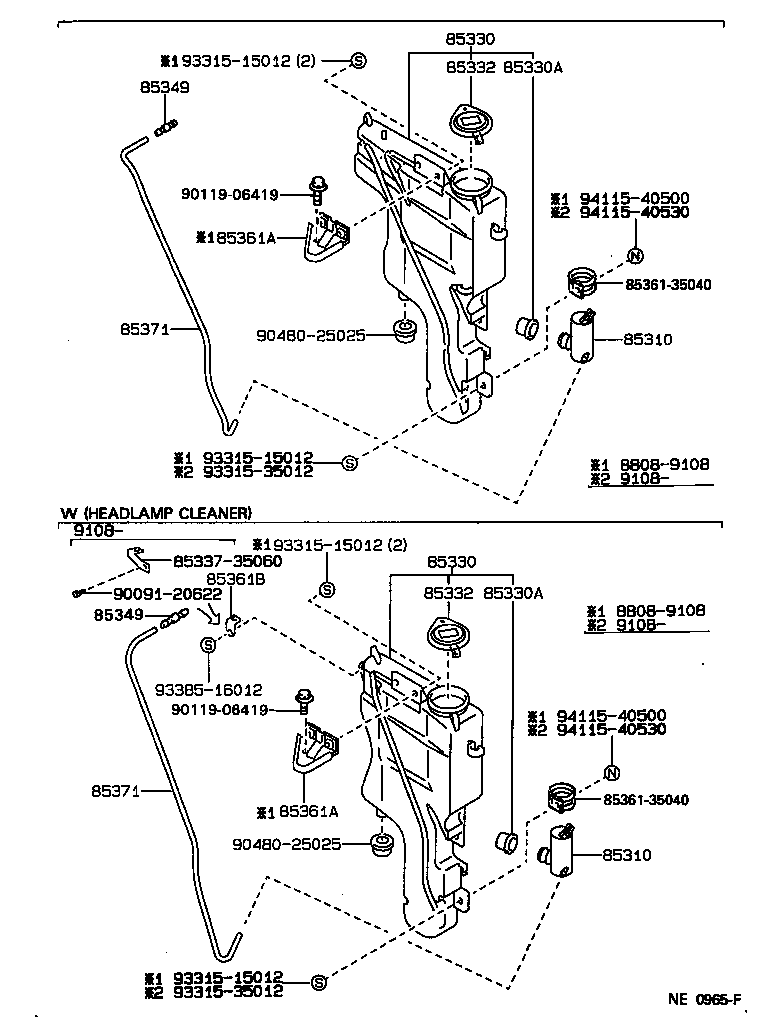

ILLUST NO. 1 OF 2(8808- )JPP
W(HEADLAMP CLEANER) OR W(RR WIPER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85330-35060 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85330-35060 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-89134 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 85315-35050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-89134 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 85315-35050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-89134 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85332-12650 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85332-22470 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-89134 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85332-12650 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85332-22470 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-89135 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 85361-89137 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-89135 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 85361-89137 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=500 |
1 | ||
| 90446-07001 |
LN105,110,85,90,RN110,YN110,85,90..JPP..LHD *H,L=600 |
1 | ||
| 90099-33656 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=540 |
1 | ||
| 90446-07001 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=1070 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=500 |
1 | ||
| 90446-07001 |
LN105,110,85,90,RN110,YN110,85,90..JPP..LHD *H,L=600 |
1 | ||
| 90099-33656 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=540 |
1 | ||
| 90446-07001 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=1070 |
1 | ||
| Common parts | ||||
| 85337-35060 | ||||
| 85361-35040 | ||||
| 90091-20622 | ||||
| 90119-06419 | ||||
| 90480-25025 | ||||
| 93315-15012 | ||||
| 93315-35012 | ||||
| 93385-16012 | ||||
| 94115-40500 | ||||
| 94115-40530 | ||||
ILLUST NO. 2 OF 2(8808- )JPP
NOZZLE & HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85031-12250 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 85031-12250 |
KZN130,LN10#,110,130,85,90,VZN130..JPP |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-89115 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
2 | ||
| 85035-89115 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN110,85,90..JPP..LHD |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-89115 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
2 | ||
| 85035-89115 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN110,85,90..JPP..LHD |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-89115 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
2 | ||
| 85035-89115 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN110,85,90..JPP..LHD |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-89115 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
2 | ||
| 85035-89115 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN110,85,90..JPP..LHD |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
YN106,110,85,90..JPP |
1 | ||
| 85349-89118 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP 2-WAY,NO.1 |
1 | ||
| 85375-89141 |
KZN130,LN10#,110,130,85,90,VZN130..JPP 3-WAY |
1 | ||
| 85348-89118 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP 3-WAY |
1 | ||
| 85375-89141 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD 3-WAY |
1 | ||
| 85376-89141 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD 2-WAY,NO.1 |
1 | ||
| 85349-89122 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP 2-WAY,NO.2 |
1 | ||
| 85348-12250 |
RN106,110,YN106,110,85,90..JPP |
1 | ||
| 85376-89141 |
KZN130,LN10#,110,130,85,90,VZN130..JPP 2-WAY,NO.1 |
1 | ||
| 85349-89122 |
YN85..JPP..LHD;KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,90..JPP 2-WAY,NO.2 |
1 | ||
| 85348-12250 |
RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
YN106,110,85,90..JPP |
1 | ||
| 85349-89118 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP 2-WAY,NO.1 |
1 | ||
| 85375-89141 |
KZN130,LN10#,110,130,85,90,VZN130..JPP 3-WAY |
1 | ||
| 85348-89118 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP 3-WAY |
1 | ||
| 85375-89141 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD 3-WAY |
1 | ||
| 85376-89141 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD 2-WAY,NO.1 |
1 | ||
| 85349-89122 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP 2-WAY,NO.2 |
1 | ||
| 85348-12250 |
RN106,110,YN106,110,85,90..JPP |
1 | ||
| 85376-89141 |
KZN130,LN10#,110,130,85,90,VZN130..JPP 2-WAY,NO.1 |
1 | ||
| 85349-89122 |
YN85..JPP..LHD;KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,90..JPP 2-WAY,NO.2 |
1 | ||
| 85348-12250 |
RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
YN106,110,85,90..JPP |
1 | ||
| 85349-89118 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP 2-WAY,NO.1 |
1 | ||
| 85375-89141 |
KZN130,LN10#,110,130,85,90,VZN130..JPP 3-WAY |
1 | ||
| 85348-89118 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP 3-WAY |
1 | ||
| 85375-89141 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD 3-WAY |
1 | ||
| 85376-89141 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD 2-WAY,NO.1 |
1 | ||
| 85349-89122 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP 2-WAY,NO.2 |
1 | ||
| 85348-12250 |
RN106,110,YN106,110,85,90..JPP |
1 | ||
| 85376-89141 |
KZN130,LN10#,110,130,85,90,VZN130..JPP 2-WAY,NO.1 |
1 | ||
| 85349-89122 |
YN85..JPP..LHD;KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,90..JPP 2-WAY,NO.2 |
1 | ||
| 85348-12250 |
RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
YN106,110,85,90..JPP |
1 | ||
| 85349-89118 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP 2-WAY,NO.1 |
1 | ||
| 85375-89141 |
KZN130,LN10#,110,130,85,90,VZN130..JPP 3-WAY |
1 | ||
| 85348-89118 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP 3-WAY |
1 | ||
| 85375-89141 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD 3-WAY |
1 | ||
| 85376-89141 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD 2-WAY,NO.1 |
1 | ||
| 85349-89122 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP 2-WAY,NO.2 |
1 | ||
| 85348-12250 |
RN106,110,YN106,110,85,90..JPP |
1 | ||
| 85376-89141 |
KZN130,LN10#,110,130,85,90,VZN130..JPP 2-WAY,NO.1 |
1 | ||
| 85349-89122 |
YN85..JPP..LHD;KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,90..JPP 2-WAY,NO.2 |
1 | ||
| 85348-12250 |
RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
YN106,110,85,90..JPP |
1 | ||
| 85349-89118 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP 2-WAY,NO.1 |
1 | ||
| 85375-89141 |
KZN130,LN10#,110,130,85,90,VZN130..JPP 3-WAY |
1 | ||
| 85348-89118 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP 3-WAY |
1 | ||
| 85375-89141 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD 3-WAY |
1 | ||
| 85376-89141 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD 2-WAY,NO.1 |
1 | ||
| 85349-89122 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP 2-WAY,NO.2 |
1 | ||
| 85348-12250 |
RN106,110,YN106,110,85,90..JPP |
1 | ||
| 85376-89141 |
KZN130,LN10#,110,130,85,90,VZN130..JPP 2-WAY,NO.1 |
1 | ||
| 85349-89122 |
YN85..JPP..LHD;KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,90..JPP 2-WAY,NO.2 |
1 | ||
| 85348-12250 |
RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
2 | ||
| 85355-14481 |
KZN130,LN10#,110,130,85,90,VZN130..JPP |
2 | ||
| 85355-14481 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP |
2 | ||
| 85355-14481 |
LN10#,110,130,85,90,RN106,110,VZN130..JPP |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
2 | ||
| 85355-14481 |
KZN130,LN10#,110,130,85,90,VZN130..JPP |
2 | ||
| 85355-14481 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP |
2 | ||
| 85355-14481 |
LN10#,110,130,85,90,RN106,110,VZN130..JPP |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06013 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP *H,L=615,NO.2 |
1 | ||
| 90099-33299 |
RN106,110,YN106,110,85,90..JPP *H,L=615,NO.1 |
1 | ||
| 90099-33080 |
RN106,110,YN110,85,90..JPP..LHD *H,L=615 |
1 | ||
| 90099-33299 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP *H,L=640,NO.1 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=615,NO.1 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,VZN130..JPP..LHD *H,L=630 |
1 | ||
| 90099-33299 |
KZN130,LN10#,110,130,85,90,VZN130..JPP *H,L=630,NO.1 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=1260 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=580,NO.1 |
1 | ||
| 90446-06013 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP *H,L=615,NO.2 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=25 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06013 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP *H,L=615,NO.2 |
1 | ||
| 90099-33299 |
RN106,110,YN106,110,85,90..JPP *H,L=615,NO.1 |
1 | ||
| 90099-33080 |
RN106,110,YN110,85,90..JPP..LHD *H,L=615 |
1 | ||
| 90099-33299 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP *H,L=640,NO.1 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=615,NO.1 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,VZN130..JPP..LHD *H,L=630 |
1 | ||
| 90099-33299 |
KZN130,LN10#,110,130,85,90,VZN130..JPP *H,L=630,NO.1 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=1260 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=580,NO.1 |
1 | ||
| 90446-06013 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP *H,L=615,NO.2 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=25 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06013 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP *H,L=615,NO.2 |
1 | ||
| 90099-33299 |
RN106,110,YN106,110,85,90..JPP *H,L=615,NO.1 |
1 | ||
| 90099-33080 |
RN106,110,YN110,85,90..JPP..LHD *H,L=615 |
1 | ||
| 90099-33299 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP *H,L=640,NO.1 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=615,NO.1 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,VZN130..JPP..LHD *H,L=630 |
1 | ||
| 90099-33299 |
KZN130,LN10#,110,130,85,90,VZN130..JPP *H,L=630,NO.1 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=1260 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=580,NO.1 |
1 | ||
| 90446-06013 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP *H,L=615,NO.2 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=25 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06013 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP *H,L=615,NO.2 |
1 | ||
| 90099-33299 |
RN106,110,YN106,110,85,90..JPP *H,L=615,NO.1 |
1 | ||
| 90099-33080 |
RN106,110,YN110,85,90..JPP..LHD *H,L=615 |
1 | ||
| 90099-33299 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP *H,L=640,NO.1 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=615,NO.1 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,VZN130..JPP..LHD *H,L=630 |
1 | ||
| 90099-33299 |
KZN130,LN10#,110,130,85,90,VZN130..JPP *H,L=630,NO.1 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=1260 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=580,NO.1 |
1 | ||
| 90446-06013 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP *H,L=615,NO.2 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=25 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06013 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP *H,L=615,NO.2 |
1 | ||
| 90099-33299 |
RN106,110,YN106,110,85,90..JPP *H,L=615,NO.1 |
1 | ||
| 90099-33080 |
RN106,110,YN110,85,90..JPP..LHD *H,L=615 |
1 | ||
| 90099-33299 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP *H,L=640,NO.1 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=615,NO.1 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,VZN130..JPP..LHD *H,L=630 |
1 | ||
| 90099-33299 |
KZN130,LN10#,110,130,85,90,VZN130..JPP *H,L=630,NO.1 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=1260 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=580,NO.1 |
1 | ||
| 90446-06013 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP *H,L=615,NO.2 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=25 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
LN10#,110,130,85,90,RN106,110,VZN130..JPP *H,L=540 |
1 | ||
| 90099-33354 |
RN106,110,YN106,110,85,90..JPP *H,L=80 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=540 |
1 | ||
| 90099-33354 |
YN106,110,85,90..JPP *H,L=80 |
1 | ||
| 90099-33299 |
KZN130,LN10#,110,130,85,90,VZN130..JPP *H,L=540 |
1 | ||
| 90099-33080 |
RN106,110,YN110,85,90..JPP..LHD *H,L=80 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=590 |
1 | ||
| 90099-33299 |
RN106,110,YN106,110,85,90..JPP *H,L=590 |
1 | ||
| 90099-33299 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP *H,L=540 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
LN10#,110,130,85,90,RN106,110,VZN130..JPP *H,L=540 |
1 | ||
| 90099-33354 |
RN106,110,YN106,110,85,90..JPP *H,L=80 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=540 |
1 | ||
| 90099-33354 |
YN106,110,85,90..JPP *H,L=80 |
1 | ||
| 90099-33299 |
KZN130,LN10#,110,130,85,90,VZN130..JPP *H,L=540 |
1 | ||
| 90099-33080 |
RN106,110,YN110,85,90..JPP..LHD *H,L=80 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=590 |
1 | ||
| 90099-33299 |
RN106,110,YN106,110,85,90..JPP *H,L=590 |
1 | ||
| 90099-33299 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP *H,L=540 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
LN10#,110,130,85,90,RN106,110,VZN130..JPP *H,L=540 |
1 | ||
| 90099-33354 |
RN106,110,YN106,110,85,90..JPP *H,L=80 |
1 | ||
| 90099-33080 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD *H,L=540 |
1 | ||
| 90099-33354 |
YN106,110,85,90..JPP *H,L=80 |
1 | ||
| 90099-33299 |
KZN130,LN10#,110,130,85,90,VZN130..JPP *H,L=540 |
1 | ||
| 90099-33080 |
RN106,110,YN110,85,90..JPP..LHD *H,L=80 |
1 | ||
| 90099-33299 |
YN106,110,85,90..JPP *H,L=590 |
1 | ||
| 90099-33299 |
RN106,110,YN106,110,85,90..JPP *H,L=590 |
1 | ||
| 90099-33299 |
RN106..JPP..CBU;LN105,110,130,85,90,RN110,VZN130..JPP *H,L=540 |
1 | ||
| Common parts | ||||
| 85371-35010 | ||||
| 90959-01136 | ||||
| 90959-01346 | ||||
| 90989-01041 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
