YN85R-TRMRSW (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1994
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9408)2Y,4Y..JPP

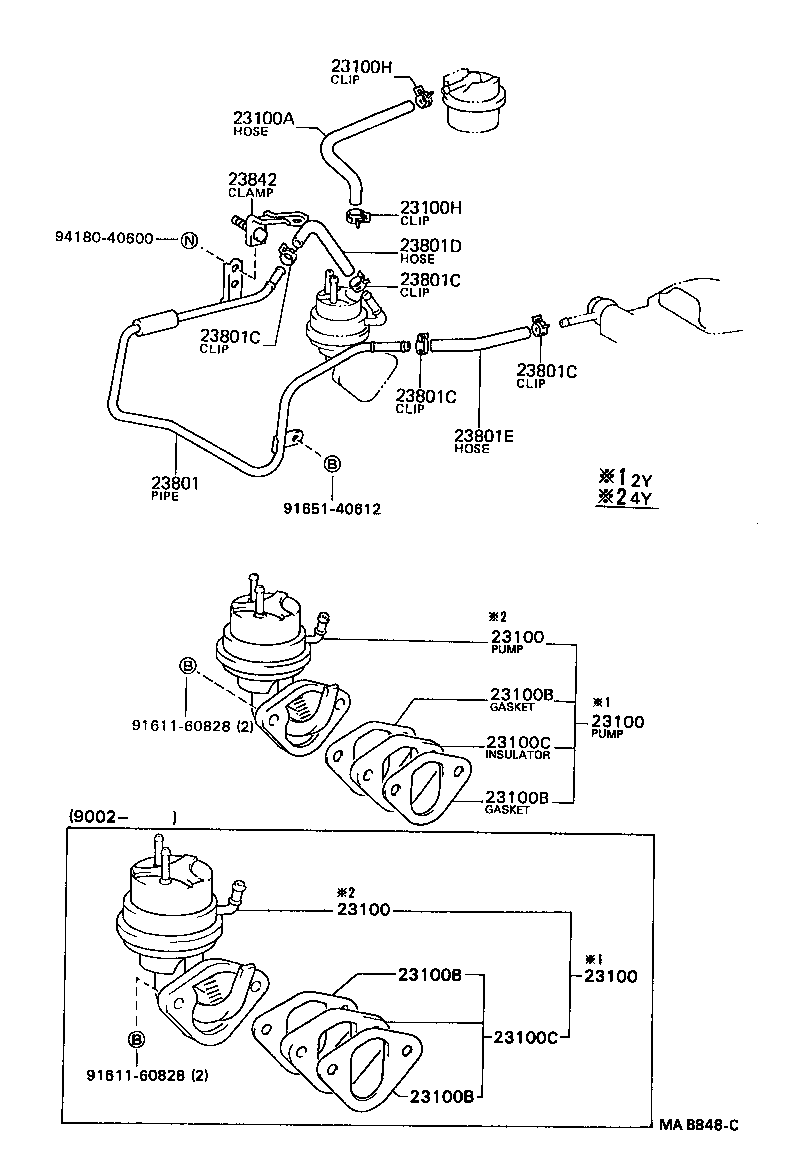

Click highlighted areas on diagram

diagram 23100 23100 23100 23100 23100A 23100B 23100B 23100B 23100B 23100C 23100C 23100H 23100H 23801 23801C 23801C 23801C 23801C 23801D 23801E 23842 9161160828 9161160828 9165140612 9418040600
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-79026

2Y..YN85,90..JPP

 1
23100-79085

2Y,4Y..YN106,110,85,90..JPP

 1
23100-79025

2Y..YN85,90..JPP

 1
23100-79027

2Y..YN85,90..JPP

 1
23100 - PUMP ASSY, FUEL
23100-79026

2Y..YN85,90..JPP

 1
23100-79085

2Y,4Y..YN106,110,85,90..JPP

 1
23100-79025

2Y..YN85,90..JPP

 1
23100-79027

2Y..YN85,90..JPP

 1
23100 - PUMP ASSY, FUEL
23100-79026

2Y..YN85,90..JPP

 1
23100-79085

2Y,4Y..YN106,110,85,90..JPP

 1
23100-79025

2Y..YN85,90..JPP

 1
23100-79027

2Y..YN85,90..JPP

 1
23100 - PUMP ASSY, FUEL
23100-79026

2Y..YN85,90..JPP

 1
23100-79085

2Y,4Y..YN106,110,85,90..JPP

 1
23100-79025

2Y..YN85,90..JPP

 1
23100-79027

2Y..YN85,90..JPP

 1
23100A - HOSE, FUEL
95333-06040

2Y,4Y..YN106,110,85,90..JPP

 1
23100B - GASKET, FUEL PUMP
90923-05022

2Y,4Y..YN106,110,85,90..JPP

 2
90923-05016

2Y,4Y..YN106,110,85,90..JPP

 2
23100B - GASKET, FUEL PUMP
90923-05022

2Y,4Y..YN106,110,85,90..JPP

 2
90923-05016

2Y,4Y..YN106,110,85,90..JPP

 2
23100B - GASKET, FUEL PUMP
90923-05022

2Y,4Y..YN106,110,85,90..JPP

 2
90923-05016

2Y,4Y..YN106,110,85,90..JPP

 2
23100B - GASKET, FUEL PUMP
90923-05022

2Y,4Y..YN106,110,85,90..JPP

 2
90923-05016

2Y,4Y..YN106,110,85,90..JPP

 2
23100C - INSULATOR, FUEL PUMP
90923-06014

2Y,4Y..YN106,110,85,90..JPP

 1
90923-06008

2Y,4Y..YN106,110,85,90..JPP

 1
23100C - INSULATOR, FUEL PUMP
90923-06014

2Y,4Y..YN106,110,85,90..JPP

 1
90923-06008

2Y,4Y..YN106,110,85,90..JPP

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2Y,4Y..YN106,110,85,90..JPP

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2Y,4Y..YN106,110,85,90..JPP

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-71011

2Y,4Y..YN106,110,85,90..JPP

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y,4Y..YN106,110,85,90..JPP

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y,4Y..YN106,110,85,90..JPP

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y,4Y..YN106,110,85,90..JPP

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y,4Y..YN106,110,85,90..JPP

 4
23801D - HOSE, FUEL PIPE, NO.1
95333-06010

2Y,4Y..YN106,110,85,90..JPP

*H,L=100

 1
23801E - HOSE, FUEL PIPE, NO.2
90445-12141

2Y,4Y..YN106,110,85,90..JPP

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-71012

2Y,4Y..YN106,110,85,90..JPP

 1
Common parts
91611-60828
91651-40612
94180-40600
