YN85L-TRMRSW (1988)
Toyota Hilux (Jpp)

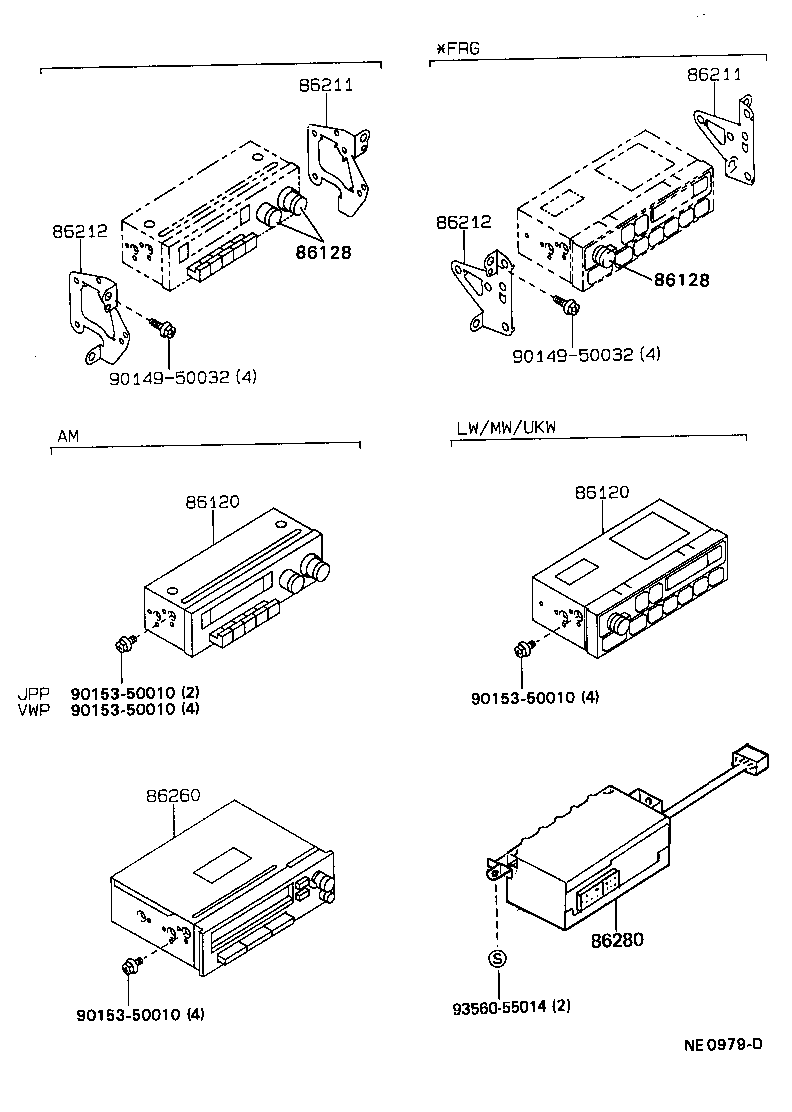

ILLUST NO. 1 OF 2(8808- )JPP
RECEIVER,KNOB,BRACKET,PLAYER & AMP.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32241 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP LW/MW/UKW MPX ETR CASSETTE & 4-SPEAKER |
1 | ||
| 86120-16530 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP AM & 1-SPEAKER |
1 | ||
| 86120-32111 |
LN105,85,YN106,85..JPP;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD LW/MW/UKW MPX ETR/ARI |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32241 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP LW/MW/UKW MPX ETR CASSETTE & 4-SPEAKER |
1 | ||
| 86120-16530 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP AM & 1-SPEAKER |
1 | ||
| 86120-32111 |
LN105,85,YN106,85..JPP;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD LW/MW/UKW MPX ETR/ARI |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-32080 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP TONE |
1 | ||
| 86128-32060 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP PWR/VOL |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-32080 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP TONE |
1 | ||
| 86128-32060 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP PWR/VOL |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-89113 |
LN105,110,130,85,VZN130,YN110,85..JPP..LHD..(4D,T1)..5F..CBU *FRG |
1 | ||
| 86211-89113 |
LN85..JPP..LHD..T1;LN105,YN85..JPP..LHD..T1..CBU;KZN130,LN110,130,VZN130,YN110..JPP..5F *FRG |
1 | ||
| 86211-89111 |
LN105,85,YN106,85..JPP;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-89113 |
LN105,110,130,85,VZN130,YN110,85..JPP..LHD..(4D,T1)..5F..CBU *FRG |
1 | ||
| 86211-89113 |
LN85..JPP..LHD..T1;LN105,YN85..JPP..LHD..T1..CBU;KZN130,LN110,130,VZN130,YN110..JPP..5F *FRG |
1 | ||
| 86211-89111 |
LN105,85,YN106,85..JPP;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-89113 |
LN85..JPP..LHD..T1;LN105,YN85..JPP..LHD..T1..CBU;KZN130,LN110,130,VZN130,YN110..JPP..5F *FRG |
1 | ||
| 86212-89113 |
LN105,110,130,85,VZN130,YN110,85..JPP..LHD..(4D,T1)..5F..CBU *FRG |
1 | ||
| 86212-89111 |
LN105,85,YN106,85..JPP;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-89113 |
LN85..JPP..LHD..T1;LN105,YN85..JPP..LHD..T1..CBU;KZN130,LN110,130,VZN130,YN110..JPP..5F *FRG |
1 | ||
| 86212-89113 |
LN105,110,130,85,VZN130,YN110,85..JPP..LHD..(4D,T1)..5F..CBU *FRG |
1 | ||
| 86212-89111 |
LN105,85,YN106,85..JPP;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 93560-55014 | ||||

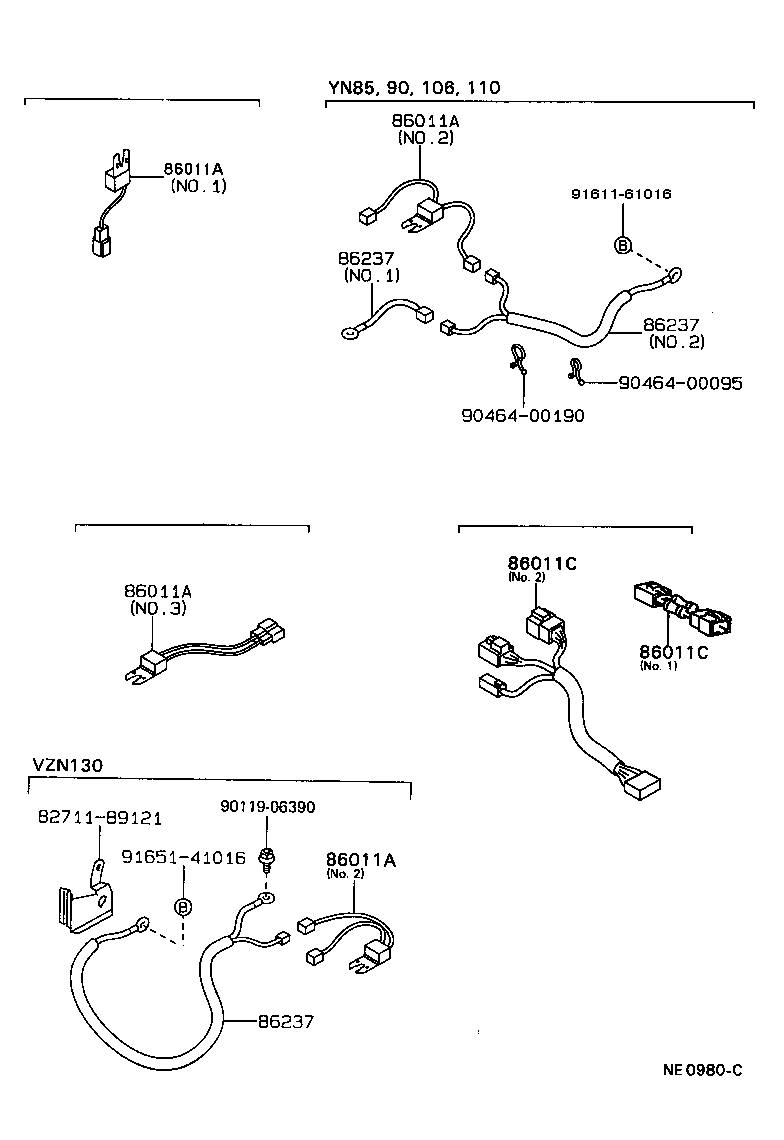

ILLUST NO. 2 OF 2(8808- )JPP
CONDENSER,WIRE & FILTER NOISE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04040 |
LN10#,110,85,90,YN106,110,85,90..JPP |
1 | ||
| 90980-04073 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 90980-04036 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 90980-04072 |
LN105,110,85,90,YN106,110,85,90..JPP NO.1 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04040 |
LN10#,110,85,90,YN106,110,85,90..JPP |
1 | ||
| 90980-04073 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 90980-04036 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 90980-04072 |
LN105,110,85,90,YN106,110,85,90..JPP NO.1 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04040 |
LN10#,110,85,90,YN106,110,85,90..JPP |
1 | ||
| 90980-04073 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 90980-04036 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 90980-04072 |
LN105,110,85,90,YN106,110,85,90..JPP NO.1 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04040 |
LN10#,110,85,90,YN106,110,85,90..JPP |
1 | ||
| 90980-04073 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 90980-04036 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 90980-04072 |
LN105,110,85,90,YN106,110,85,90..JPP NO.1 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05143 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05143 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 86237 - WIRE, CONDENSER | ||||
| 86237-89110 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 86237-89109 |
YN106,110,85,90..JPP NO.1 |
1 | ||
| 86237 - WIRE, CONDENSER | ||||
| 86237-89110 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 86237-89109 |
YN106,110,85,90..JPP NO.1 |
1 | ||
| 86237 - WIRE, CONDENSER | ||||
| 86237-89110 |
YN106,110,85,90..JPP NO.2 |
1 | ||
| 86237-89109 |
YN106,110,85,90..JPP NO.1 |
1 | ||
| Common parts | ||||
| 82711-89121 | ||||
| 90119-06390 | ||||
| 90464-00095 | ||||
| 90464-00190 | ||||
| 91611-61016 | ||||
| 91651-41016 | ||||
