YN110L-CRMDSW (1988)
Toyota Hilux (Jpp)
ILLUST NO. 1 OF 2(8808- )LN10#,110,RN106,110,YN106,110..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-35070 |
LN108,110,90,RN106,110,YN110,90..JPP |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35170 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14008 |
LN110,RN106,110,YN110..JPP..T1 L=155 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35170 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18012 |
LN108,110,90,RN106,110,YN110,90..JPP |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
RN106..JPP..T1;LN105,110,85,RN110,YN106,110,85..JPP |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-35110 |
LN10#,110,RN106,110,YN106,110..JPP |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-35020 |
LN10#,110,RN106,110,YN106,110..JPP |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-35120 |
LN108,110,90,RN106,110,YN110,90..JPP |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-35050 |
LN108,110,90,RN106,110,YN110,90..JPP |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-35070 |
LN108,110,RN106,110,YN110..JPP |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-35040 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-35010 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80062 |
LN110,RN106,110,YN110..JPP |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19002 |
LN10#,110,RN106,110,YN106,110..JPP |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19002 |
LN10#,110,RN106,110,YN106,110..JPP |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19002 |
LN10#,110,RN106,110,YN106,110..JPP |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19002 |
LN10#,110,RN106,110,YN106,110..JPP |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03020 |
LN10#,110,RN106,110,YN106,110..JPP |
2 | ||
| 90948-03015 |
LN105,110,RN110,YN106,110..JPP |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03020 |
LN10#,110,RN106,110,YN106,110..JPP |
2 | ||
| 90948-03015 |
LN105,110,RN110,YN106,110..JPP |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
LN10#,110,RN106,110,YN106,110..JPP |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
LN10#,110,RN106,110,YN106,110..JPP |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03011 |
LN10#,110,RN106,110,YN106,110..JPP |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03011 |
LN10#,110,RN106,110,YN106,110..JPP |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03015 |
LN105,110,RN110,YN106,110..JPP |
2 | ||
| 90948-03020 |
LN10#,110,RN106,110,YN106,110..JPP |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03015 |
LN105,110,RN110,YN106,110..JPP |
2 | ||
| 90948-03020 |
LN10#,110,RN106,110,YN106,110..JPP |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-39105 |
LN110,RN106,110,YN110..JPP |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 90119-08747 | ||||
| 90179-14019 | ||||
| 90179-14039 | ||||
| 90201-14005 | ||||
| 90201-15012 | ||||
| 91619-G1220 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||

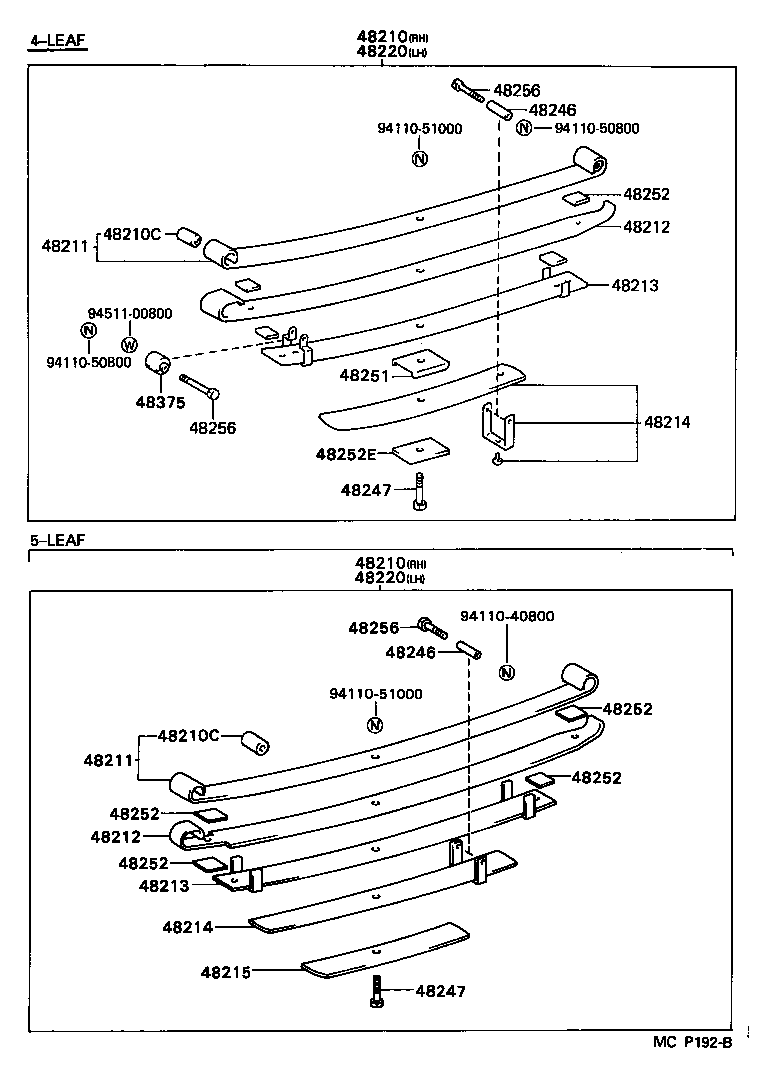

ILLUST NO. 2 OF 2(8808- )LN108,110,RN106,110,YN110..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35681 |
LN110,RN106,110,YN110..JPP..T1 4-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35681 |
LN110,RN106,110,YN110..JPP..T1 4-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
LN108,110,90,RN106,110,YN110,90..JPP |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
LN108,110,90,RN106,110,YN110,90..JPP |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-35680 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-35680 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35680 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35680 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35680 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35680 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-35680 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-35680 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35681 |
LN110,RN106,110,YN110..JPP..T1 4-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35681 |
LN110,RN106,110,YN110..JPP..T1 4-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26260 |
LN110,RN106,110,YN110..JPP |
2 | ||
| 48247-25160 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26260 |
LN110,RN106,110,YN110..JPP |
2 | ||
| 48247-25160 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-35350 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN10#,110,RN106,110,YN106,110..JPP |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN10#,110,RN106,110,YN106,110..JPP |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN10#,110,RN106,110,YN106,110..JPP |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN10#,110,RN106,110,YN106,110..JPP |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN10#,110,RN106,110,YN106,110..JPP |
8 | ||
| 48252E - WEDGE, REAR SPRING CASTER | ||||
| 48252-35470 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
LN110,RN106,110,YN110..JPP..T1 RR |
2 | ||
| 48256-35360 |
LN110,RN106,110,YN110..JPP..T1 FR |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
LN110,RN106,110,YN110..JPP..T1 RR |
2 | ||
| 48256-35360 |
LN110,RN106,110,YN110..JPP..T1 FR |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
LN110,RN106,110,YN110..JPP..T1 RR |
2 | ||
| 48256-35360 |
LN110,RN106,110,YN110..JPP..T1 FR |
2 | ||
| 48375 - DAMPER, LEAF SPRING DYNAMIC | ||||
| 48375-35011 |
LN110,RN106,110,YN110..JPP..T1 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 94110-51000 | ||||
| 94511-00800 | ||||
