VZN130R-GKMSEW (1993)

Toyota Hilux (Jpp)

Production Aug 1993 - Nov 1995
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

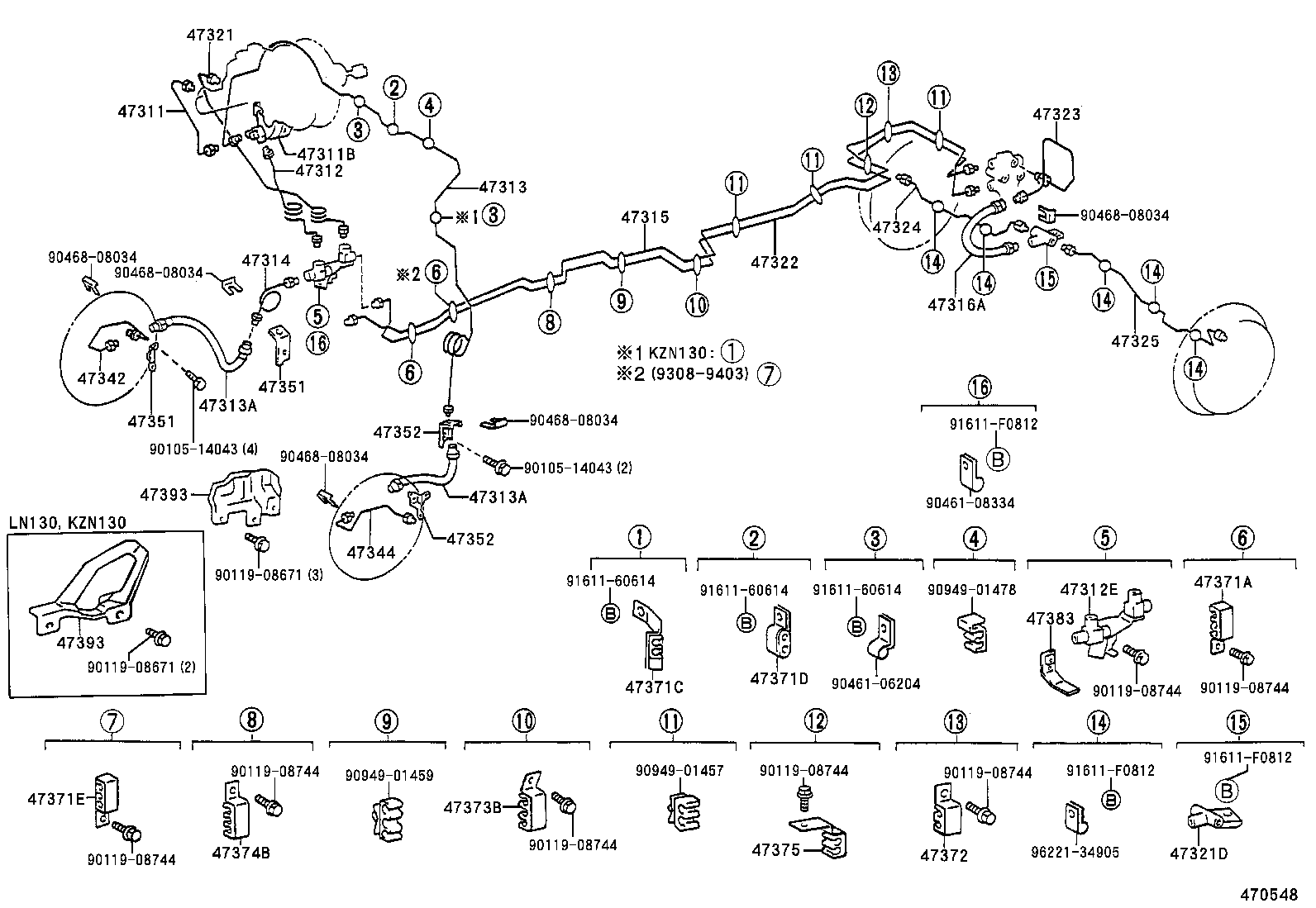

ILLUST NO. 1 OF 2(9308- )KZN130,VZN130..JPP..RHD

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47315 47316A 47321 47321D 47322 47323 47324 47325 47342 47344 47351 47351 47352 47352 47371A 47371C 47371D 47371E 47372 47373B 47374B 47375 47383 47393 47393 9010514043 9010514043 9011908671 9011908671 9011908744 9011908744 9011908744 9011908744 9011908744 9011908744 9011908744 9046106204 9046108334 9046808034 9046808034 9046808034 9046808034 9046808034 9094901457 9094901459 9094901478 9161160614 9161160614 9161160614 91611F0812 91611F0812 91611F0812 9622134905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35450

KZN130,LN105,85,VZN130..JPP..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10194

KZN130,LN105,VZN130..JPP..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D190

VZN130..JPP..RHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10233

KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35720

VZN130..JPP..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33656

KZN130,VZN130..JPP..RHD

 2
96950-33555

KZN130,LN108,110,130,RN106,110,VZN130..JPP

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33656

KZN130,VZN130..JPP..RHD

 2
96950-33555

KZN130,LN108,110,130,RN106,110,VZN130..JPP

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35240

LN110,130,RN106,110,VZN130,YN110..JPP

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35261

KZN130,LN130,VZN130..JPP

 1
47315-35260

KZN130,LN130,VZN130..JPP

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35660

VZN130..JPP..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35660

KZN130,LN130,VZN130..JPP

 1
47322-35661

KZN130,LN130,VZN130..JPP

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35100

KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35100

KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352-35170

KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352-35170

KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47354-35080

KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47354-35080

KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35080

KZN130,LN130,VZN130..JPP

 1
47371-35080

KZN130,LN108,130,RN106,VZN130..JPP

 2
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080

KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 1
47371E - CLAMP, BRAKE TUBE, NO.9
47371-35220

KZN130,LN130,VZN130..JPP

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35030

KZN130,LN108,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47373-35040

LN110,130,YN110..JPP

 1
47373-35050

RN106,110,VZN130..JPP

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35080

LN108,110,130..JPP

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35080

LN108,110,130..JPP

 1
Common parts
90105-14043
90119-08671
90119-08744
90461-06204
90461-08334
90468-08034
90949-01457
90949-01459
90949-01478
91611-60614
91611-F0812
96221-34905
