VZN130L-GKPSEW (1990)
Toyota Hilux (Jpp)
(9008-9511)JPP..4FC

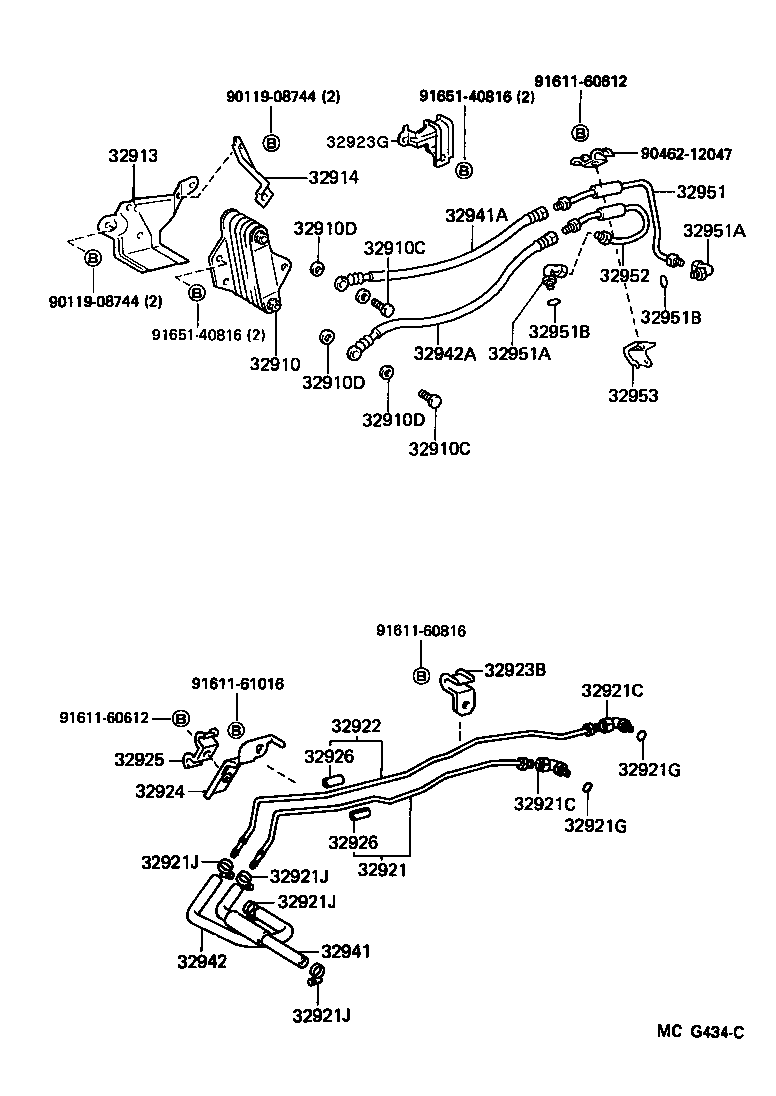

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32910 - COOLER ASSY, OIL | ||||
| 32910-35010 |
VZN130..JPP..4FC |
1 | ||
| 32910C - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-14003 |
VZN130..JPP..4FC |
2 | ||
| 32910C - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-14003 |
VZN130..JPP..4FC |
2 | ||
| 32910D - GASKET(FOR OIL COOLER) | ||||
| 90430-14235 |
VZN130..JPP..4FC |
4 | ||
| 32910D - GASKET(FOR OIL COOLER) | ||||
| 90430-14235 |
VZN130..JPP..4FC |
4 | ||
| 32910D - GASKET(FOR OIL COOLER) | ||||
| 90430-14235 |
VZN130..JPP..4FC |
4 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-35010 |
VZN130..JPP..4FC |
1 | ||
| 32914 - STAY, OIL COOLER | ||||
| 32914-35010 |
VZN130..JPP..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-35230 |
VZN130..JPP..4FC |
1 | ||
| 32921-35171 |
VZN130..JPP..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16008 |
VZN130..JPP..4FC OUTLET |
1 | ||
| 90407-16012 |
VZN130..JPP..4FC INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16008 |
VZN130..JPP..4FC OUTLET |
1 | ||
| 90407-16012 |
VZN130..JPP..4FC INLET |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
VZN130..JPP..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
VZN130..JPP..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
VZN130..JPP..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
VZN130..JPP..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
VZN130..JPP..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
VZN130..JPP..4FC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-35260 |
VZN130..JPP..4FC |
1 | ||
| 32922-35150 |
VZN130..JPP..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-30110 |
VZN130..JPP..4FC |
1 | ||
| 32923G - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8 | ||||
| 32908-35010 |
VZN130..JPP..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-35030 |
VZN130..JPP..4FC W(AIR CONDITIONER) |
1 | ||
| 32924-35040 |
VZN130..JPP..4FC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-12044 |
VZN130..JPP..4FC |
1 | ||
| 90462-12044 |
VZN130..JPP..4FC |
1 | ||
| 90462-12079 |
VZN130..JPP..4FC |
1 | ||
| 90462-12044 |
VZN130..JPP..4FC W(AIR CONDITIONER) |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
VZN130..JPP..4FC L=35,ID=10 |
2 | ||
| 32926-30020 |
VZN130..JPP..4FC L=35,ID=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
VZN130..JPP..4FC L=35,ID=10 |
2 | ||
| 32926-30020 |
VZN130..JPP..4FC L=35,ID=10 |
4 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-35041 |
VZN130..JPP..4FC |
1 | ||
| 32941-35240 |
VZN130..JPP..4FC |
1 | ||
| 32941A - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32941-35030 |
VZN130..JPP..4FC |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-35011 |
VZN130..JPP..4FC |
1 | ||
| 32941-28190 |
VZN130..JPP..4FC |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 32942-35030 |
VZN130..JPP..4FC |
1 | ||
| 32951 - TUBE, TRANSFER OIL COOLER INLET | ||||
| 32951-35010 |
VZN130..JPP..4FC |
1 | ||
| 32951A - ELBOW(FOR TRANSFER OIL COOLER TUBE) | ||||
| 90407-16010 |
VZN130..JPP..4FC |
2 | ||
| 32951A - ELBOW(FOR TRANSFER OIL COOLER TUBE) | ||||
| 90407-16010 |
VZN130..JPP..4FC |
2 | ||
| 32951B - RING, O(FOR TRANSFER OIL COOLER TUBE) | ||||
| 90301-10189 |
VZN130..JPP..4FC |
2 | ||
| 32951B - RING, O(FOR TRANSFER OIL COOLER TUBE) | ||||
| 90301-10189 |
VZN130..JPP..4FC |
2 | ||
| 32952 - TUBE, TRANSFER OIL COOLER OUTLET | ||||
| 32952-35010 |
VZN130..JPP..4FC |
1 | ||
| 32953 - CLAMP, TRANSFER OIL COOLER | ||||
| 32953-35010 |
VZN130..JPP..4FC |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90462-12047 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91611-61016 | ||||
| 91651-40816 | ||||
