VZN130L-GKPSEW (1990)

Toyota Hilux (Jpp)

Production Aug 1990 - Nov 1995
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008-9511)JPP..4FC

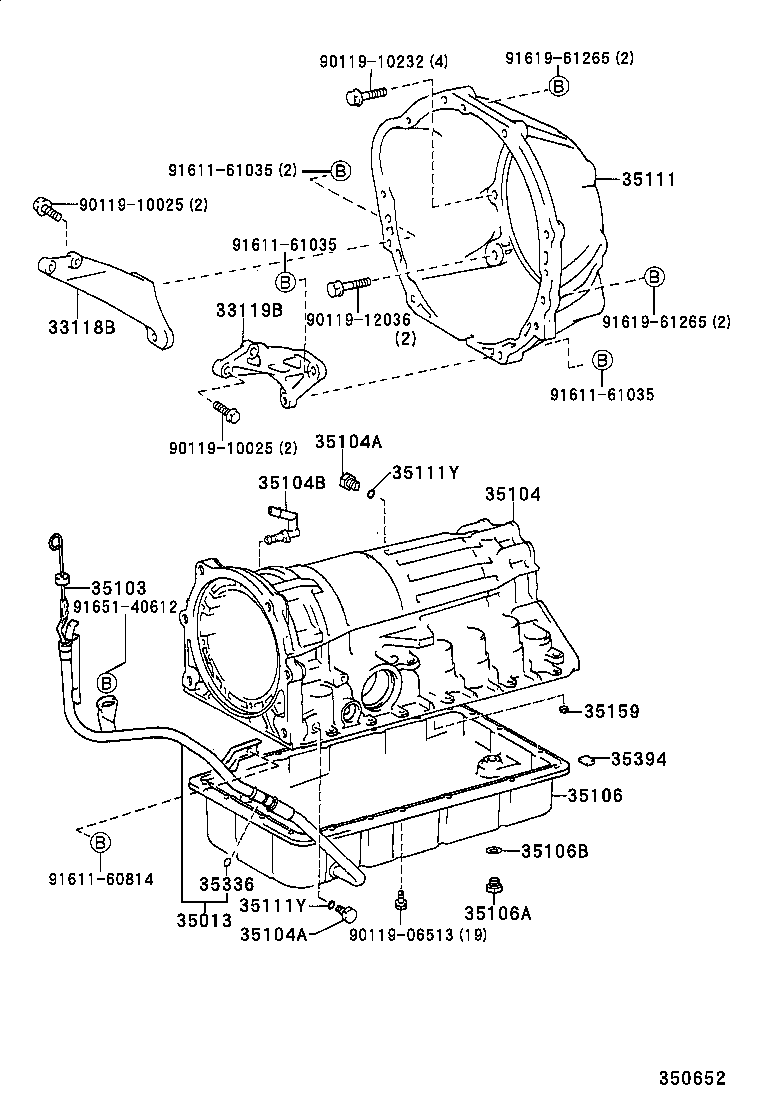

Click highlighted areas on diagram

diagram 33118B 33119B 35013 35103 35104 35104A 35104A 35104B 35106 35106A 35106B 35111 35111Y 35111Y 35159 35336 35394 9011906513 9011910025 9011910025 9011910232 9011912036 9161160814 9161161035 9161161035 9161161035 9161961265 9161961265 9165140612
Part # Description Qty Price
33118B - PLATE, STIFFENER, RH(ATM)
33118-35040

VZN130..JPP..4FC

 1
33119B - PLATE, STIFFENER, LH(ATM)
33119-35030

VZN130..JPP..4FC

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-35200

VZN130..JPP..4FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-35190

VZN130..JPP..4FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-35011

VZN130..JPP..4FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

VZN130..JPP..4FC

 2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

VZN130..JPP..4FC

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03116

VZN130..JPP..4FC

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-35022

VZN130..JPP..4FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

VZN130..JPP..4FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

VZN130..JPP..4FC

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-35051

VZN130..JPP..4FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

VZN130..JPP..4FC

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

VZN130..JPP..4FC

 2
35159 - GASKET, BRAKE DRUM
35159-30010

VZN130..JPP..4FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09011

VZN130..JPP..4FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

VZN130..JPP..4FC

 4
35394-30011

VZN130..JPP..4FC

 6
Common parts
90119-06513
90119-10025
90119-10232
90119-12036
91611-60814
91611-61035
91619-61265
91651-40612
