VZN130L-GKMSEW (1989)
Toyota Hilux (Jpp)

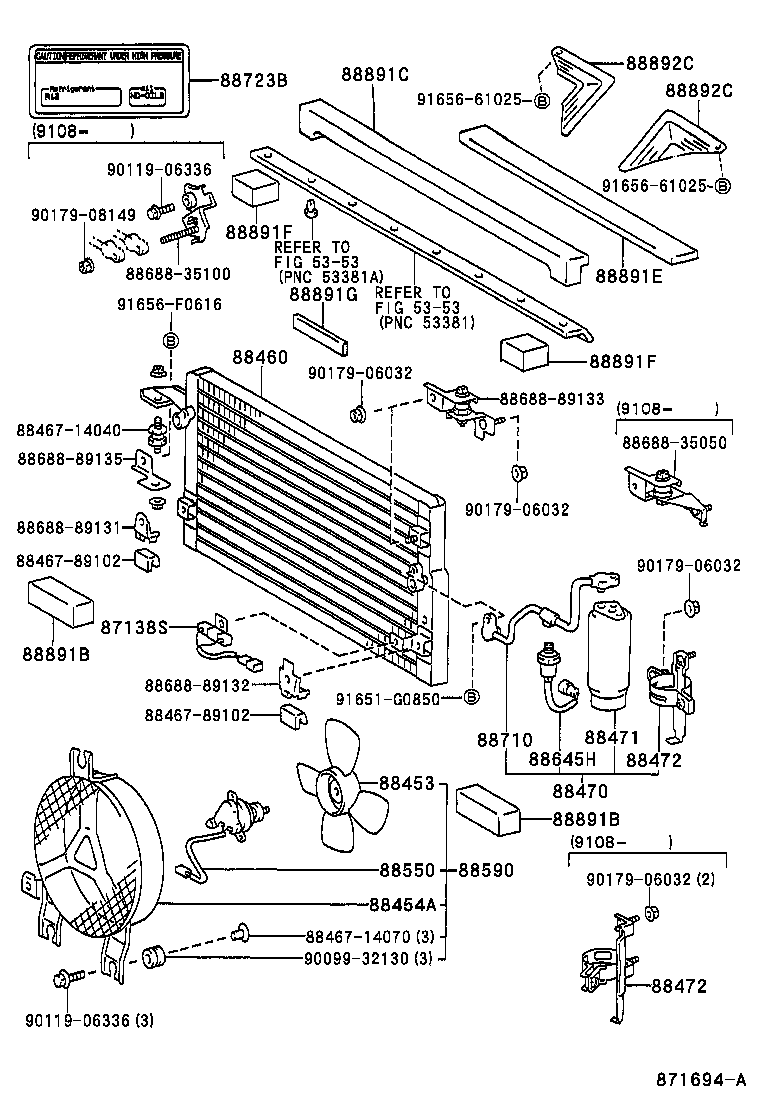

ILLUST NO. 1 OF 2(8908-9108)LN130,VZN130..JPP
CONDENSER & RECEIVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 88635-35010 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-28010 |
LN130,VZN130..JPP DEALER OPTION |
1 | ||
| 88453-12030 |
LN130,VZN130..JPP MAKER OPTION |
1 | ||
| 88453-28010 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88453-12030 |
LN130,VZN130..JPP |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-35030 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89117 |
LN130,VZN130..JPP |
1 | ||
| 88460-35060 |
LN130,VZN130..JPP DEALER OPTION |
1 | ||
| 88460-89117 |
LN130,VZN130..JPP MAKER OPTION |
1 | ||
| 88460-35080 |
KZN130,LN130,VZN130..JPP..LHD MAKER OPTION |
1 | ||
| 88460-35110 |
KZN130,LN130,VZN130..JPP..LHD DEALER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-89103 |
LN130,VZN130..JPP |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
LN10#,110,130,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 88471-16040 |
LN130,VZN130..JPP |
1 | ||
| 88471-16040 |
LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 88471-16040 |
LN105,110,130,85,90,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 88471-16040 |
LN10#,110,130,85,90,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 88471-34010 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
LN105,110,130,85,90,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 88472-35010 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88472-89110 |
LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
LN105,110,130,85,90,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 88472-35010 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88472-89110 |
LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-89101 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-89102 |
KZN130,LN130,VZN130..JPP..LHD MAKER OPTION |
1 | ||
| 88590-89101 |
KZN130,LN130,VZN130..JPP..LHD DEALER OPTION |
1 | ||
| 88590-89101 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12030 |
LN130,VZN130..JPP |
1 | ||
| 88645-20010 |
LN130,VZN130..JPP DEALER OPTION AIR CONDITIONER |
1 | ||
| 88645-12030 |
LN130,VZN130..JPP MAKER OPTION AIR CONDITIONER,NO.1 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-89121 |
LN130,VZN130..JPP |
1 | ||
| 88710-35010 |
VZN130..JPP |
1 | ||
| 88710-35120 |
VZN130..JPP..LHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-17030 |
VZN130..JPP..5F DEALER OPTION |
1 | ||
| 88723-17030 |
LN130,VZN130..JPP |
1 | ||
| 88723-33020 |
VZN130..JPP..5F MAKER OPTION |
1 | ||
| 88723-20040 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88723-20040 |
LN105,85..JPP..LHD;KZN130,LN108,110,130,90,VZN130..JPP |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
LN105,110,130,85,90,VZN130,YN110..JPP..LHD..CBU |
2 | ||
| 88578-89111 |
KZN130,LN130,VZN130..JPP..LHD MAKER OPTION |
2 | ||
| 88578-89111 |
LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110..JPP |
2 | ||
| 88578-89103 |
KZN130,LN130,VZN130..JPP..LHD DEALER OPTION |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
LN105,110,130,85,90,VZN130,YN110..JPP..LHD..CBU |
2 | ||
| 88578-89111 |
KZN130,LN130,VZN130..JPP..LHD MAKER OPTION |
2 | ||
| 88578-89111 |
LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110..JPP |
2 | ||
| 88578-89103 |
KZN130,LN130,VZN130..JPP..LHD DEALER OPTION |
2 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
LN110,VZN130..JPP |
1 | ||
| 88578-89112 |
LN108,VZN130..JPP..LHD |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
VZN130..JPP |
2 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
VZN130..JPP |
2 | ||
| 88891G - PACKING G (FOR COOLER) | ||||
| 88578-89107 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN130..JPP..LHD RH |
1 | ||
| 88892-89117 |
VZN130..JPP..LHD LH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN130..JPP..LHD RH |
1 | ||
| 88892-89117 |
VZN130..JPP..LHD LH |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88467-14070 | ||||
| 88467-89102 | ||||
| 88688-35050 | ||||
| 88688-35100 | ||||
| 88688-89131 | ||||
| 88688-89132 | ||||
| 88688-89133 | ||||
| 88688-89135 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90179-06032 | ||||
| 90179-08149 | ||||
| 91651-G0850 | ||||
| 91656-61025 | ||||
| 91656-F0616 | ||||
| Linked diagrams | ||||
| 5353 | ||||

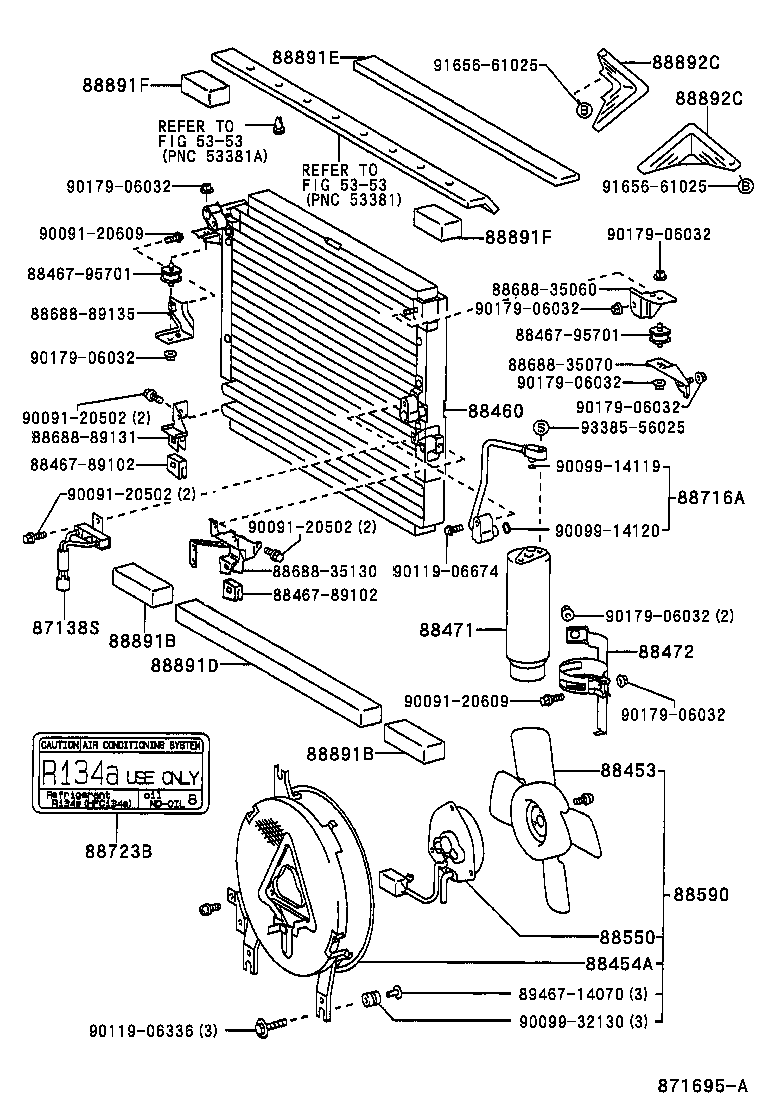

ILLUST NO. 1 OF 2(9108-9511)LN130,VZN130..JPP
CONDENSER & RECEIVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 88635-35010 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-28010 |
LN130,VZN130..JPP DEALER OPTION |
1 | ||
| 88453-12030 |
LN130,VZN130..JPP MAKER OPTION |
1 | ||
| 88453-28010 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88453-12030 |
LN130,VZN130..JPP |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-35030 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89117 |
LN130,VZN130..JPP |
1 | ||
| 88460-35060 |
LN130,VZN130..JPP DEALER OPTION |
1 | ||
| 88460-89117 |
LN130,VZN130..JPP MAKER OPTION |
1 | ||
| 88460-35080 |
KZN130,LN130,VZN130..JPP..LHD MAKER OPTION |
1 | ||
| 88460-35110 |
KZN130,LN130,VZN130..JPP..LHD DEALER OPTION |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
LN10#,110,130,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 88471-16040 |
LN130,VZN130..JPP |
1 | ||
| 88471-16040 |
LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 88471-16040 |
LN105,110,130,85,90,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 88471-16040 |
LN10#,110,130,85,90,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 88471-34010 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
LN105,110,130,85,90,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 88472-35010 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88472-89110 |
LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-89101 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-89102 |
KZN130,LN130,VZN130..JPP..LHD MAKER OPTION |
1 | ||
| 88590-89101 |
KZN130,LN130,VZN130..JPP..LHD DEALER OPTION |
1 | ||
| 88590-89101 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35100 |
LN130,VZN130..JPP |
1 | ||
| 88716-35110 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-17030 |
VZN130..JPP..5F DEALER OPTION |
1 | ||
| 88723-17030 |
LN130,VZN130..JPP |
1 | ||
| 88723-33020 |
VZN130..JPP..5F MAKER OPTION |
1 | ||
| 88723-20040 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88723-20040 |
LN105,85..JPP..LHD;KZN130,LN108,110,130,90,VZN130..JPP |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
LN105,110,130,85,90,VZN130,YN110..JPP..LHD..CBU |
2 | ||
| 88578-89111 |
KZN130,LN130,VZN130..JPP..LHD MAKER OPTION |
2 | ||
| 88578-89111 |
LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110..JPP |
2 | ||
| 88578-89103 |
KZN130,LN130,VZN130..JPP..LHD DEALER OPTION |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
LN105,110,130,85,90,VZN130,YN110..JPP..LHD..CBU |
2 | ||
| 88578-89111 |
KZN130,LN130,VZN130..JPP..LHD MAKER OPTION |
2 | ||
| 88578-89111 |
LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110..JPP |
2 | ||
| 88578-89103 |
KZN130,LN130,VZN130..JPP..LHD DEALER OPTION |
2 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
LN110,VZN130..JPP |
1 | ||
| 88578-89112 |
LN108,VZN130..JPP..LHD |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
VZN130..JPP |
2 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
VZN130..JPP |
2 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN130..JPP..LHD RH |
1 | ||
| 88892-89117 |
VZN130..JPP..LHD LH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN130..JPP..LHD RH |
1 | ||
| 88892-89117 |
VZN130..JPP..LHD LH |
1 | ||
| Common parts | ||||
| 88467-89102 | ||||
| 88467-95701 | ||||
| 88688-35060 | ||||
| 88688-35070 | ||||
| 88688-35130 | ||||
| 88688-89131 | ||||
| 88688-89135 | ||||
| 89467-14070 | ||||
| 90091-20502 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06674 | ||||
| 90179-06032 | ||||
| 91656-61025 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 5353 | ||||

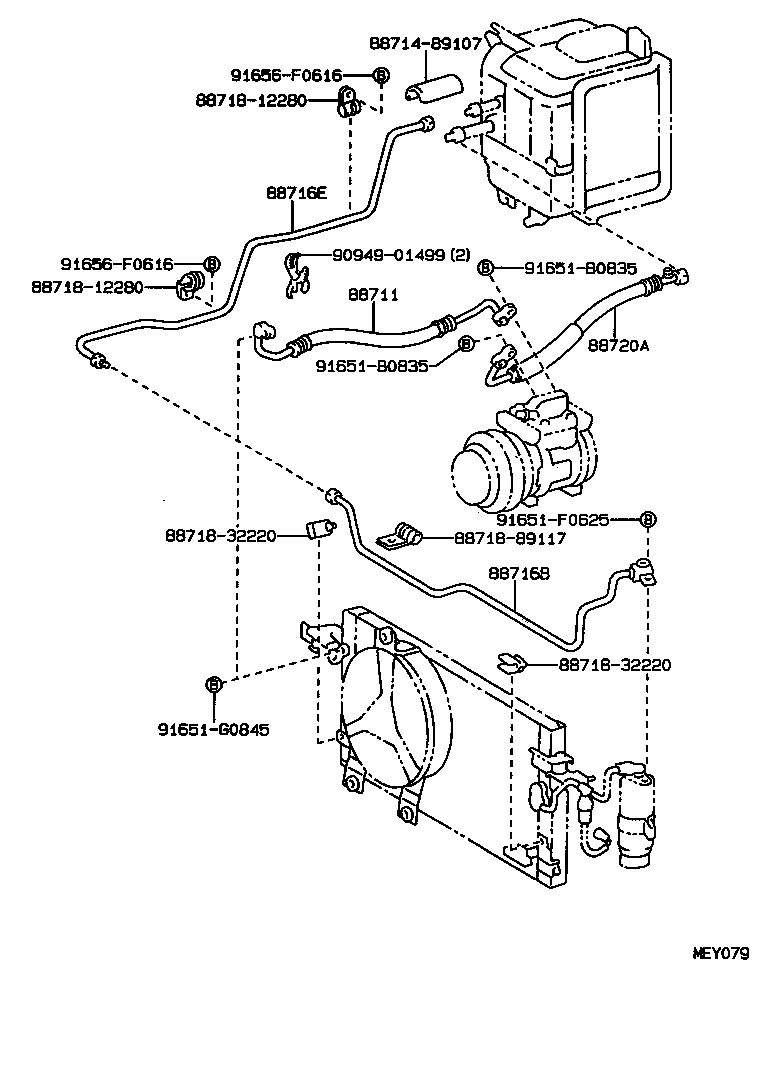

ILLUST NO. 2 OF 2(8908-9308)VZN130..JPP
HOSE & PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88720-89136 |
VZN130..JPP |
1 | ||
| 88711-35070 |
VZN130..JPP DEALER OPTION |
1 | ||
| 88720-35070 |
VZN130..JPP MAKER OPTION |
1 | ||
| 88720-35220 |
VZN130..JPP..LHD MAKER OPTION |
1 | ||
| 88711-35220 |
VZN130..JPP..LHD DEALER OPTION |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35061 |
LN130,VZN130..JPP |
1 | ||
| 88716-89172 |
LN130,VZN130..JPP |
1 | ||
| 88716-35190 |
KZN130,LN130,VZN130..JPP..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89160 |
LN105..JPP..LHD..CBU;LN110,130,85,90,YN110,85,90..JPP..LHD |
1 | ||
| 88716-89181 |
VZN130..JPP |
1 | ||
| 88716-35041 |
VZN130..JPP MAKER OPT OR DEALER OPT |
1 | ||
| 88710-35051 |
VZN130..JPP MAKER OPT |
1 | ||
| 88716-35120 |
VZN130..JPP..LHD |
1 | ||
| 88716-89160 |
LN105,110,130,85,90,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-35170 |
VZN130..JPP |
1 | ||
| 88720-89137 |
VZN130..JPP |
1 | ||
| Common parts | ||||
| 88714-89107 | ||||
| 88718-12280 | ||||
| 88718-32220 | ||||
| 88718-89117 | ||||
| 90949-01499 | ||||
| 91651-B0835 | ||||
| 91651-F0625 | ||||
| 91651-G0845 | ||||
| 91656-F0616 | ||||
ILLUST NO. 2 OF 2(9308-9511)VZN130..JPP..LHD
HOSE & PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88375-30280 |
LN105,85..JPP..LHD;KZN130,LN108,110,130,90,VZN130..JPP |
1 | ||
| 88375-30280 |
KZN130,LN130,VZN130..JPP |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
VZN130..JPP |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02007 |
KZN130,LN130,VZN130..JPP..LHD 250G |
3 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88720-89136 |
VZN130..JPP |
1 | ||
| 88711-35070 |
VZN130..JPP DEALER OPTION |
1 | ||
| 88720-35070 |
VZN130..JPP MAKER OPTION |
1 | ||
| 88720-35220 |
VZN130..JPP..LHD MAKER OPTION |
1 | ||
| 88711-35220 |
VZN130..JPP..LHD DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-35150 |
VZN130..JPP |
1 | ||
| 88720-35270 |
VZN130..JPP..LHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35061 |
LN130,VZN130..JPP |
1 | ||
| 88716-89172 |
LN130,VZN130..JPP |
1 | ||
| 88716-35190 |
KZN130,LN130,VZN130..JPP..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89160 |
LN105..JPP..LHD..CBU;LN110,130,85,90,YN110,85,90..JPP..LHD |
1 | ||
| 88716-89181 |
VZN130..JPP |
1 | ||
| 88716-35041 |
VZN130..JPP MAKER OPT OR DEALER OPT |
1 | ||
| 88710-35051 |
VZN130..JPP MAKER OPT |
1 | ||
| 88716-35120 |
VZN130..JPP..LHD |
1 | ||
| 88716-89160 |
LN105,110,130,85,90,YN110,85,90..JPP..LHD..CBU |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-14070 | ||||
| 88688-35170 | ||||
| 88714-89107 | ||||
| 88718-12280 | ||||
| 88718-35020 | ||||
| 90090-14120 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06674 | ||||
| 90179-06032 | ||||
| 91651-60616 | ||||
| 91652-B0635 | ||||
| 93385-56025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
