RN110L-CRMDEW (1988)
Toyota Hilux (Jpp)

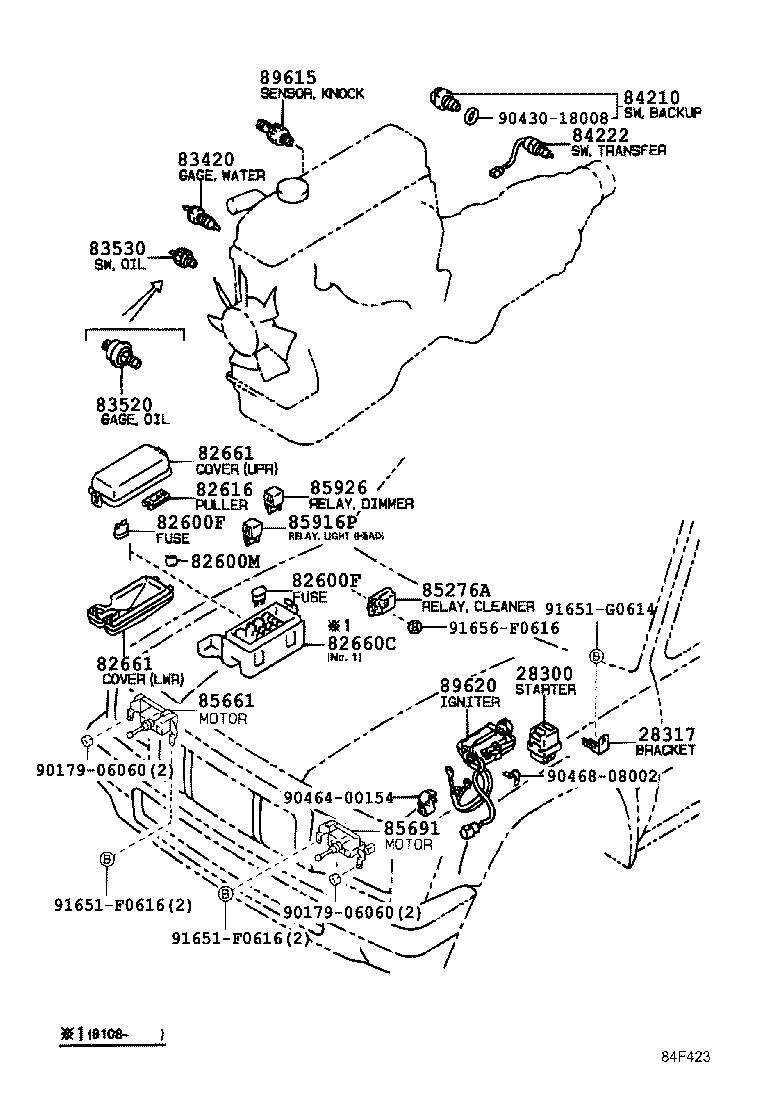

ILLUST NO. 1 OF 6(8808- )LN10#,110,130,85,90..JPP
ENGINE,TRANSMISSION & TRANSFER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 83420-16040 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 83420-16040 |
KZN130,LN10#,110,130,85,90,RN106,110..JPP |
1 | ||
| 83420-20020 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-55011 |
LN108,110,90..JPP |
1 | ||
| 83520-34010 |
KZN130,RN106,110,VZN130,YN110,90..JPP..(DLX,SR5) |
1 | ||
| 83520-14023 |
LN130,RN106,110,VZN130,YN110,90..JPP..(DLX,SR5) DENSO |
1 | ||
| 83520-55011 |
LN130,RN106,110,VZN130,YN110,90..JPP..(DLX,SR5) YAZAKI |
1 | ||
| 83520-34010 |
RN106,110,VZN130..JPP..(DLX,SR5) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LN105,110,85,90..JPP |
1 | ||
| 83530-14070 |
RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83530-14030 |
RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35050 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-20010 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 89422-20010 |
LN10#,110,130,85,90..JPP ENGINE BLOCK |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-35020 |
LN10#,110..JPP |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 90116-06275 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90404-51044 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
ILLUST NO. 3 OF 6(8808- )JPP
INSTRUMENT PANEL & COMBINATION SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-09030 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD TOKAIRIKA USA |
1 | ||
| 84112-39625 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD TOKAIRIKA |
1 | ||
| 84112-39625 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-35100 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD TOKAIRIKA |
1 | ||
| 84140-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD TOKAIRIKA USA |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-89101 |
LN85..JPP..CBU;LN105,110,130,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 84150-35010 |
LN105,85..JPP..LHD..T1..CBU;LN110,90,RN106,110,VZN130..JPP..LHD..(DCB,WG,XTR) |
1 | ||
| 84150-89101 |
LN105,110,130,85,90,RN110,VZN130,YN110,85,90..JPP..LHD..(4D,T1)..CBU |
1 | ||
| 84150-89101 |
LN105,110,85,90,RN110,VZN130..JPP..LHD..(4D,T1)..CBU |
1 | ||
| 84150-89101 |
RN110,VZN130..JPP..LHD..5F SWEDEN SPEC |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-89101 |
LN85..JPP..LHD..T1;LN105..JPP..LHD..T1..CBU;KZN130,LN110,90,RN106,110,VZN130..JPP..(DCB,WG,XTR) |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84162-89105 |
LN85..JPP..T1..CBU;LN105,110,90,YN110,85..JPP..LHD..CBU BELGIUM SPEC |
1 | ||
| 84162-89105 |
LN105,110,90..JPP..(DCB,XTR) PORTUGAL SPEC OR BELGIUM SPEC |
1 | ||
| 84162-89105 |
LN105,110,90..JPP..(DCB,XTR) PORTUGAL SPEC OR BELGIUM SPEC OR FRANCE SPEC |
1 | ||
| 84162-89105 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35310 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 84310-35460 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 84310-35470 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD TOKAIRIKA |
1 | ||
| 84310-04020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD TOKAIRIKA USA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84312-12040 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD TOKAIRIKA |
1 | ||
| 84312-03010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD TOKAIRIKA USA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-89110 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84332-89110 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP TOKAIRIKA |
1 | ||
| 84332-04010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP TOKAIRIKA USA |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-35090 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84450-35130 |
LN105,85,YN106,85..JPP;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-35210 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 84652-35360 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 84652-35370 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD TOKAIRIKA |
1 | ||
| 84652-04020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD TOKAIRIKA USA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-89105 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP |
1 | ||
| 84660-35010 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 84660-89105 |
LN10#,110,130,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 84660-89105 |
LN105,110,130,85,90,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-89105 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP |
1 | ||
| 84660-35010 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 84660-89105 |
LN10#,110,130,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 84660-89105 |
LN105,110,130,85,90,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89114 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 84732-89113 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 84732-35030 |
LN10#,110,85,90,RN106,110..JPP..LHD |
1 | ||
| 84732-89114 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-89101 |
LN110,90,RN110,YN110,90..JPP |
1 | ||
| 84790-89101 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,90..JPP..(DCB,WG,XTR) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,90..JPP..(DCB,WG,XTR) 14V 0.84W |
2 | ||
| 84999-10320 |
LN110,90,RN110,YN110,90..JPP 14V 0.84W |
2 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
LN105,110,130,85,90,VZN130,YN110,85,90..JPP..LHD..CBU |
1 | ||
| 88607-16010 |
LN105,85..JPP..LHD;KZN130,LN108,110,130,90,VZN130..JPP |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 82711-35130 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||
ILLUST NO. 1 OF 6(8808- )LN10#,110,130,85,90..JPP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02009 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 28300-10020 |
22RE,3VZE..RN106,110,VZN130..JPP |
1 | ||
| 28341-11010 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP..5F |
1 | ||
| 28300-10020 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 10A |
1 | ||
| 90982-09003 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 20A,YELLOW |
1 | ||
| 90982-09005 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 10A |
1 | ||
| 90982-09003 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 20A,YELLOW |
1 | ||
| 90982-09005 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 7.5A |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 30A,PINK |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 82616-89102 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
YN85..JPP..RHD;LN10#,110,130,85,90,RN106,110,VZN130,YN106..JPP |
1 | ||
| 82660-35030 |
VZN130..JPP..LHD;KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 82660-35030 |
LN10#,110,85,90,RN106,110..JPP |
1 | ||
| 82660-35100 |
RN106,110..JPP;VZN130..JPP..RHD |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
YN85..JPP..RHD;LN10#,110,130,85,90,RN106,110,VZN130,YN106..JPP |
1 | ||
| 82660-35030 |
VZN130..JPP..LHD;KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 82660-35030 |
LN10#,110,85,90,RN106,110..JPP |
1 | ||
| 82660-35100 |
RN106,110..JPP;VZN130..JPP..RHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-89101 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-89108 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-89104 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82662-89107 |
LN85..JPP..T1..CBU;LN105,110,90..JPP..LHD..CBU NORWAY SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89102 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-89105 |
LN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU NORWAY SPEC OR FINLAND SPEC,UPR |
1 | ||
| 82662-89107 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89103 |
LN105,110,85..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89107 |
LN105,110..JPP..(DCB,XTR) ICELAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89106 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82663-89101 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35180 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-35200 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-35170 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35190 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35020 |
LN85,YN85..JPP..LHD;LN10#,110,90,YN110,90..JPP UPR |
1 | ||
| 82662-35390 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35030 |
LN85..JPP..LHD..T1;LN105,110..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-35040 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82663-35010 |
LN10#,110,85,90..JPP |
1 | ||
| 82662-35380 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35060 |
LN10#,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35010 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82663-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35080 |
RN110..JPP FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC OR DENMARK SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35050 |
LN105,110,85,90..JPP..LHD..T1..CBU DENMARK SPEC OR FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35381 |
RN106,110..JPP UPR |
1 | ||
| 82662-35391 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35070 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-89101 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-89108 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-89104 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82662-89107 |
LN85..JPP..T1..CBU;LN105,110,90..JPP..LHD..CBU NORWAY SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89102 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-89105 |
LN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU NORWAY SPEC OR FINLAND SPEC,UPR |
1 | ||
| 82662-89107 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89103 |
LN105,110,85..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89107 |
LN105,110..JPP..(DCB,XTR) ICELAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89106 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82663-89101 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35180 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-35200 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-35170 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35190 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35020 |
LN85,YN85..JPP..LHD;LN10#,110,90,YN110,90..JPP UPR |
1 | ||
| 82662-35390 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35030 |
LN85..JPP..LHD..T1;LN105,110..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-35040 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82663-35010 |
LN10#,110,85,90..JPP |
1 | ||
| 82662-35380 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35060 |
LN10#,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35010 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82663-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35080 |
RN110..JPP FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC OR DENMARK SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35050 |
LN105,110,85,90..JPP..LHD..T1..CBU DENMARK SPEC OR FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35381 |
RN106,110..JPP UPR |
1 | ||
| 82662-35391 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35070 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LN105,110,130,85,90..JPP |
1 | ||
| 83390-30100 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20050 |
YN106,110,85,90..JPP |
1 | ||
| 83391-32020 |
LN10#,110,85,90..JPP..LHD COLD SPEC |
1 | ||
| 83391-32020 |
LN105,110,85,90..JPP |
1 | ||
| 85276A - RELAY, CLEANER CONTROL | ||||
| 85276-89101 |
LN105,110,85,90,RN110,YN110,85,90..JPP..LHD..T1..CBU |
1 | ||
| 85276-89101 |
LN105,110,85,90,RN110..JPP..LHD..T1..CBU |
1 | ||
| 85276-89101 |
LN85..JPP..TW1;LN105,110,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| 85276-89101 |
LN105,85..JPP..LHD..T1..CBU;LN110,90,RN106,110..JPP..(DCB,XTR) |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85661-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85661-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85661-89103 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85661-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85661-89103 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85661-89103 |
RN106,110..JPP..(DCB,XTR)..(DLX,STD) AUSTRIA OR FINLAND SPEC |
1 | ||
| 85661-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85661-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85691 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-89103 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85691-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85691-89103 |
RN106,110..JPP..(DCB,XTR)..(DLX,STD) FINLAND SPEC OR AUSTRIA SPEC |
1 | ||
| 85691-89103 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85691-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85691-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85691-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85691-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85691-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
LN85..JPP..T1..CBU;LN105,110,90,RN110,YN106,110,85,90..JPP..CBU |
1 | ||
| 85926-30020 |
RN106..JPP..TW1;LN85..JPP..T1..CBU;LN10#,110,130,90,RN110,VZN130,YN106,110,85,90..JPP..CBU |
1 | ||
| 85926-30020 |
RN106..JPP..TW1;LN10#,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP..CBU |
1 | ||
| 85926-30020 |
LN105,85,YN106,85..JPP..CBU;KZN130,LN108,110,90,RN106,110,VZN130,YN110,90..JPP..LHD..(DCB,WG,XTR) |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
LN105,110,130,85,90..JPP |
1 | ||
| 90987-02009 |
KZN130,LN10#,110,130,85,90..JPP..LHD COLD SPEC |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-35020 |
LN10#,110,85,90..JPP |
2 | ||
| 85959-35020 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| Common parts | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 90119-06116 | ||||
| 90119-06171 | ||||
| 90119-08063 | ||||
| 90179-06060 | ||||
| 91651-40612 | ||||
| 91651-F0616 | ||||
| 91656-40616 | ||||
| 91656-F0616 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 2 OF 6(8808- )JPP
AIR CONDITIONER RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 30A,PINK |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
YN85..JPP..RHD;LN10#,110,130,85,90,RN106,110,VZN130,YN106..JPP |
1 | ||
| 82660-35030 |
VZN130..JPP..LHD;KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 82660-35030 |
LN10#,110,85,90,RN106,110..JPP |
1 | ||
| 82660-35100 |
RN106,110..JPP;VZN130..JPP..RHD |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
YN85..JPP..RHD;LN10#,110,130,85,90,RN106,110,VZN130,YN106..JPP |
1 | ||
| 82660-35030 |
VZN130..JPP..LHD;KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 82660-35030 |
LN10#,110,85,90,RN106,110..JPP |
1 | ||
| 82660-35100 |
RN106,110..JPP;VZN130..JPP..RHD |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 6(8808- )RN106,110..JPP
ENGINE & ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02009 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 28300-10020 |
22RE,3VZE..RN106,110,VZN130..JPP |
1 | ||
| 28341-11010 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP..5F |
1 | ||
| 28300-10020 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 10A |
1 | ||
| 90982-09003 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 20A,YELLOW |
1 | ||
| 90982-09005 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 10A |
1 | ||
| 90982-09003 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 20A,YELLOW |
1 | ||
| 90982-09005 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 7.5A |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 30A,PINK |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 82616-89102 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
YN85..JPP..RHD;LN10#,110,130,85,90,RN106,110,VZN130,YN106..JPP |
1 | ||
| 82660-35030 |
VZN130..JPP..LHD;KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 82660-35030 |
LN10#,110,85,90,RN106,110..JPP |
1 | ||
| 82660-35100 |
RN106,110..JPP;VZN130..JPP..RHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-89101 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-89108 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-89104 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82662-89107 |
LN85..JPP..T1..CBU;LN105,110,90..JPP..LHD..CBU NORWAY SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89102 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-89105 |
LN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU NORWAY SPEC OR FINLAND SPEC,UPR |
1 | ||
| 82662-89107 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89103 |
LN105,110,85..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89107 |
LN105,110..JPP..(DCB,XTR) ICELAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89106 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82663-89101 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35180 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-35200 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-35170 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35190 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35020 |
LN85,YN85..JPP..LHD;LN10#,110,90,YN110,90..JPP UPR |
1 | ||
| 82662-35390 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35030 |
LN85..JPP..LHD..T1;LN105,110..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-35040 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82663-35010 |
LN10#,110,85,90..JPP |
1 | ||
| 82662-35380 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35060 |
LN10#,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35010 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82663-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35080 |
RN110..JPP FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC OR DENMARK SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35050 |
LN105,110,85,90..JPP..LHD..T1..CBU DENMARK SPEC OR FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35381 |
RN106,110..JPP UPR |
1 | ||
| 82662-35391 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35070 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-89101 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-89108 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-89104 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82662-89107 |
LN85..JPP..T1..CBU;LN105,110,90..JPP..LHD..CBU NORWAY SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89102 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-89105 |
LN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU NORWAY SPEC OR FINLAND SPEC,UPR |
1 | ||
| 82662-89107 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89103 |
LN105,110,85..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89107 |
LN105,110..JPP..(DCB,XTR) ICELAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89106 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82663-89101 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35180 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-35200 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-35170 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35190 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35020 |
LN85,YN85..JPP..LHD;LN10#,110,90,YN110,90..JPP UPR |
1 | ||
| 82662-35390 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35030 |
LN85..JPP..LHD..T1;LN105,110..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-35040 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82663-35010 |
LN10#,110,85,90..JPP |
1 | ||
| 82662-35380 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35060 |
LN10#,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35010 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82663-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35080 |
RN110..JPP FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC OR DENMARK SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35050 |
LN105,110,85,90..JPP..LHD..T1..CBU DENMARK SPEC OR FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35381 |
RN106,110..JPP UPR |
1 | ||
| 82662-35391 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35070 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 83420-16040 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 83420-16040 |
KZN130,LN10#,110,130,85,90,RN106,110..JPP |
1 | ||
| 83420-20020 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-55011 |
LN108,110,90..JPP |
1 | ||
| 83520-34010 |
KZN130,RN106,110,VZN130,YN110,90..JPP..(DLX,SR5) |
1 | ||
| 83520-14023 |
LN130,RN106,110,VZN130,YN110,90..JPP..(DLX,SR5) DENSO |
1 | ||
| 83520-55011 |
LN130,RN106,110,VZN130,YN110,90..JPP..(DLX,SR5) YAZAKI |
1 | ||
| 83520-34010 |
RN106,110,VZN130..JPP..(DLX,SR5) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LN105,110,85,90..JPP |
1 | ||
| 83530-14070 |
RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83530-14030 |
RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35050 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 85276A - RELAY, CLEANER CONTROL | ||||
| 85276-89101 |
LN105,110,85,90,RN110,YN110,85,90..JPP..LHD..T1..CBU |
1 | ||
| 85276-89101 |
LN105,110,85,90,RN110..JPP..LHD..T1..CBU |
1 | ||
| 85276-89101 |
LN85..JPP..TW1;LN105,110,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| 85276-89101 |
LN105,85..JPP..LHD..T1..CBU;LN110,90,RN106,110..JPP..(DCB,XTR) |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85661-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85661-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85661-89103 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85661-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85661-89103 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85661-89103 |
RN106,110..JPP..(DCB,XTR)..(DLX,STD) AUSTRIA OR FINLAND SPEC |
1 | ||
| 85661-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85661-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85691 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-89103 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85691-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85691-89103 |
RN106,110..JPP..(DCB,XTR)..(DLX,STD) FINLAND SPEC OR AUSTRIA SPEC |
1 | ||
| 85691-89103 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85691-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85691-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85691-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85691-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85691-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
LN85..JPP..T1..CBU;LN105,110,90,RN110,YN106,110,85,90..JPP..CBU |
1 | ||
| 85926-30020 |
RN106..JPP..TW1;LN85..JPP..T1..CBU;LN10#,110,130,90,RN110,VZN130,YN106,110,85,90..JPP..CBU |
1 | ||
| 85926-30020 |
RN106..JPP..TW1;LN10#,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP..CBU |
1 | ||
| 85926-30020 |
LN105,85,YN106,85..JPP..CBU;KZN130,LN108,110,90,RN106,110,VZN130,YN110,90..JPP..LHD..(DCB,WG,XTR) |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-35040 |
RN106,110..JPP |
1 | ||
| 89615-22030 |
RN106,110..JPP MATSUSHITA |
1 | ||
| 89615-22040 |
RN106,110..JPP DENSO |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-35280 |
RN106,110..JPP |
1 | ||
| 89620-35310 |
RN106,110..JPP |
1 | ||
| 89620-35210 |
RN106,110..JPP |
1 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 90430-18008 | ||||
| 90464-00154 | ||||
| 90468-08002 | ||||
| 91651-F0616 | ||||
| 91651-G0614 | ||||
| 91656-F0616 | ||||
ILLUST NO. 1 OF 6(8808- )YN106,110,85,90..JPP
ENGINE & ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02009 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 28300-10020 |
22RE,3VZE..RN106,110,VZN130..JPP |
1 | ||
| 28341-11010 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP..5F |
1 | ||
| 28300-10020 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 10A |
1 | ||
| 90982-09003 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 20A,YELLOW |
1 | ||
| 90982-09005 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 10A |
1 | ||
| 90982-09003 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 20A,YELLOW |
1 | ||
| 90982-09005 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 7.5A |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 30A,PINK |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 82616-89102 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
YN85..JPP..RHD;LN10#,110,130,85,90,RN106,110,VZN130,YN106..JPP |
1 | ||
| 82660-35030 |
VZN130..JPP..LHD;KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 82660-35030 |
LN10#,110,85,90,RN106,110..JPP |
1 | ||
| 82660-35100 |
RN106,110..JPP;VZN130..JPP..RHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-89101 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-89108 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-89104 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82662-89107 |
LN85..JPP..T1..CBU;LN105,110,90..JPP..LHD..CBU NORWAY SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89102 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-89105 |
LN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU NORWAY SPEC OR FINLAND SPEC,UPR |
1 | ||
| 82662-89107 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89103 |
LN105,110,85..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89107 |
LN105,110..JPP..(DCB,XTR) ICELAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89106 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82663-89101 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35180 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-35200 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-35170 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35190 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35020 |
LN85,YN85..JPP..LHD;LN10#,110,90,YN110,90..JPP UPR |
1 | ||
| 82662-35390 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35030 |
LN85..JPP..LHD..T1;LN105,110..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-35040 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82663-35010 |
LN10#,110,85,90..JPP |
1 | ||
| 82662-35380 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35060 |
LN10#,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35010 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82663-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35080 |
RN110..JPP FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC OR DENMARK SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35050 |
LN105,110,85,90..JPP..LHD..T1..CBU DENMARK SPEC OR FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35381 |
RN106,110..JPP UPR |
1 | ||
| 82662-35391 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35070 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-89101 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-89108 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-89104 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82662-89107 |
LN85..JPP..T1..CBU;LN105,110,90..JPP..LHD..CBU NORWAY SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89102 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-89105 |
LN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU NORWAY SPEC OR FINLAND SPEC,UPR |
1 | ||
| 82662-89107 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89103 |
LN105,110,85..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89107 |
LN105,110..JPP..(DCB,XTR) ICELAND SPEC & ALTERNATOR=60A,UPR |
1 | ||
| 82662-89106 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82663-89101 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35180 |
YN85..JPP..LHD;LN105,110,85,90,YN110,90..JPP UPR |
1 | ||
| 82662-35200 |
RN110..JPP SWEDEN SPEC,UPR |
1 | ||
| 82662-35170 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35190 |
LN105,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35020 |
LN85,YN85..JPP..LHD;LN10#,110,90,YN110,90..JPP UPR |
1 | ||
| 82662-35390 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35030 |
LN85..JPP..LHD..T1;LN105,110..JPP..LHD..T1..CBU *FRG & ALTERNATOR=60A,UPR |
1 | ||
| 82662-35040 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG,UPR |
1 | ||
| 82663-35010 |
LN10#,110,85,90..JPP |
1 | ||
| 82662-35380 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82662-35060 |
LN10#,110,85,90..JPP..LHD ALTERNATOR=60A,UPR |
1 | ||
| 82662-35010 |
RN106,110,VZN130..JPP UPR |
1 | ||
| 82663-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LWR |
1 | ||
| 82662-35080 |
RN110..JPP FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC OR DENMARK SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35050 |
LN105,110,85,90..JPP..LHD..T1..CBU DENMARK SPEC OR FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82662-35381 |
RN106,110..JPP UPR |
1 | ||
| 82662-35391 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & W(FUEL HEATER),UPR |
1 | ||
| 82662-35070 |
LN105,110,85,90..JPP..LHD..T1..CBU FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20050 |
YN106,110,85,90..JPP |
1 | ||
| 83391-32020 |
LN10#,110,85,90..JPP..LHD COLD SPEC |
1 | ||
| 83391-32020 |
LN105,110,85,90..JPP |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-35020 |
YN106,110,85,90..JPP |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 83420-16040 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 83420-16040 |
KZN130,LN10#,110,130,85,90,RN106,110..JPP |
1 | ||
| 83420-20020 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-55011 |
LN108,110,90..JPP |
1 | ||
| 83520-34010 |
KZN130,RN106,110,VZN130,YN110,90..JPP..(DLX,SR5) |
1 | ||
| 83520-14023 |
LN130,RN106,110,VZN130,YN110,90..JPP..(DLX,SR5) DENSO |
1 | ||
| 83520-55011 |
LN130,RN106,110,VZN130,YN110,90..JPP..(DLX,SR5) YAZAKI |
1 | ||
| 83520-34010 |
RN106,110,VZN130..JPP..(DLX,SR5) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LN105,110,85,90..JPP |
1 | ||
| 83530-14070 |
RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83530-14030 |
RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35050 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 85276A - RELAY, CLEANER CONTROL | ||||
| 85276-89101 |
LN105,110,85,90,RN110,YN110,85,90..JPP..LHD..T1..CBU |
1 | ||
| 85276-89101 |
LN105,110,85,90,RN110..JPP..LHD..T1..CBU |
1 | ||
| 85276-89101 |
LN85..JPP..TW1;LN105,110,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| 85276-89101 |
LN105,85..JPP..LHD..T1..CBU;LN110,90,RN106,110..JPP..(DCB,XTR) |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85661-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85661-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85661-89103 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85661-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85661-89103 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85661-89103 |
RN106,110..JPP..(DCB,XTR)..(DLX,STD) AUSTRIA OR FINLAND SPEC |
1 | ||
| 85661-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85661-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85691 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-89103 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85691-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG & *HWS |
1 | ||
| 85691-89103 |
RN106,110..JPP..(DCB,XTR)..(DLX,STD) FINLAND SPEC OR AUSTRIA SPEC |
1 | ||
| 85691-89103 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85691-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85691-89103 |
LN105,110,YN110..JPP..LHD..T1..CBU *FRG |
1 | ||
| 85691-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85691-89103 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC OR *FRG |
1 | ||
| 85691-89103 |
LN90,RN106,110..JPP..(DCB,XTR) FINLAND SPEC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
LN85..JPP..T1..CBU;LN105,110,90,RN110,YN106,110,85,90..JPP..CBU |
1 | ||
| 85926-30020 |
RN106..JPP..TW1;LN85..JPP..T1..CBU;LN10#,110,130,90,RN110,VZN130,YN106,110,85,90..JPP..CBU |
1 | ||
| 85926-30020 |
RN106..JPP..TW1;LN10#,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP..CBU |
1 | ||
| 85926-30020 |
LN105,85,YN106,85..JPP..CBU;KZN130,LN108,110,90,RN106,110,VZN130,YN110,90..JPP..LHD..(DCB,WG,XTR) |
1 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 90430-18008 | ||||
| 91651-F0616 | ||||
| 91651-G0614 | ||||
| 91656-40616 | ||||
ILLUST NO. 6 OF 6(8808- )JPP
REAR BODY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80124 |
RN106,110..JPP |
1 | ||
| 83320-80177 |
RN106,110..JPP..T1 |
1 | ||
| 83320-80120 |
LN105,110,YN106,110..JPP..T1 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80124 |
RN106,110..JPP |
1 | ||
| 83320-80177 |
RN106,110..JPP..T1 |
1 | ||
| 83320-80120 |
LN105,110,YN106,110..JPP..T1 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| Common parts | ||||
| 90119-06016 | ||||
| 90159-40155 | ||||
| 90179-06026 | ||||
| 93319-14010 | ||||
ILLUST NO. 5 OF 6(8808- )LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP
DOOR & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84340-30030 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84340-30030 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-89101 |
LN85..JPP..TW1;LN105,110,90,RN106,110,YN110,90..JPP..LHD |
1 | ||
| 84751-35020 |
RN106..JPP..T1;RN106..JPP..SR5;LN85..JPP..LHD..CBU;KZN130,LN10#,110,130,90,RN110,VZN130,YN110,85,90..JPP..LHD LH |
1 | ||
| 84751-35010 |
RN106..JPP..T1;RN106..JPP..SR5;LN85..JPP..LHD..CBU;KZN130,LN10#,110,130,90,RN110,VZN130,YN110,85,90..JPP..LHD RH |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-35030 |
RN106,110,VZN130..JPP NO.2 |
1 | ||
| 89437-35020 |
RN110..JPP |
1 | ||
| 89437-35020 |
RN106,110,VZN130..JPP NO.1 |
1 | ||
| 89437-35030 |
RN106,110,VZN130..JPP |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39355 |
RN106,110,VZN130..JPP |
1 | ||
| 89465-39265 |
RN110..JPP |
1 | ||
| 89465-39485 |
RN106,110,VZN130..JPP |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
RN110..JPP |
1 | ||
| 89466-20020 |
RN106,110,VZN130..JPP |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90467-12046 | ||||
| 94120-40800 | ||||
ILLUST NO. 4 OF 6(8808- )JPP
INSTRUMENT PANEL & COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02009 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 28300-10020 |
22RE,3VZE..RN106,110,VZN130..JPP |
1 | ||
| 28341-11010 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP..5F |
1 | ||
| 28300-10020 |
22RE,3VZE,2Y,4Y..RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 10A |
1 | ||
| 90982-09003 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 20A,YELLOW |
1 | ||
| 90982-09005 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 10A |
1 | ||
| 90982-09003 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 20A,YELLOW |
1 | ||
| 90982-09005 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 7.5A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-89103 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 82683-89102 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND |
1 | ||
| 82683-89114 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND |
1 | ||
| 82683-89114 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND |
1 | ||
| 82683-89114 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 82683-89103 |
LN105,110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 82683-35010 |
LN85..JPP..LHD..T1;LN105,110,YN110,85..JPP..LHD..T1..CBU *FRG |
1 | ||
| 82683-89102 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 82683-89114 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-13010 |
LN105,85,YN85..JPP..LHD..CBU;KZN130,LN108,110,90,RN106,110,VZN130,YN110,90..JPP..LHD..(DCB,WG,XTR) |
1 | ||
| 82642-12030 |
LN85,YN85..JPP..LHD..T1..CBU;LN105,110,90,RN110,YN110,90..JPP..(DCB,XTR) |
1 | ||
| 82642-13010 |
KZN130,LN10#,110,85,90,RN110,VZN130..JPP..LHD..CBU |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LN105,YN106..JPP..RHD;LN130,RN106,110,VZN130,YN110,85,90..JPP 30A |
1 | ||
| 82650-20011 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP 30A |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-89109 |
LN105,110,85,VZN130,YN110,85..JPP..LHD..(4D,T1)..CBU *FRG |
1 | ||
| 82670-89110 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND |
1 | ||
| 82670-89110 |
LN105,110,85,YN110,85..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND |
1 | ||
| 82670-89110 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 82670-35030 |
LN85..JPP..LHD..T1;KZN130,LN105,110,VZN130,YN110,85..JPP..LHD..(4D,T1)..5F..CBU *FRG |
1 | ||
| 82670-89110 |
LN105,85,YN106,85..JPP;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| 82670-89110 |
LN105,110,85..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND |
1 | ||
| 82670-89110 |
LN105,YN106..JPP..RHD;LN130,RN106,110,VZN130,YN110,85,90..JPP |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-89101 |
LN105,110,85,90,YN110,90..JPP..LHD..T1..CBU FINLAND SPEC & VW BLAND OR NORWAY SPEC |
1 | ||
| 82810-89101 |
RN110..JPP SWEDEN SPEC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,90..JPP..(DCB,WG,XTR) |
1 | ||
| 90987-02004 |
LN105,110,130,85,90,RN110,VZN130,YN110,90..JPP..(DCB,WG,XTR) |
1 | ||
| 90987-02004 |
LN110,130,90,RN110,VZN130,YN110,90..JPP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
LN85..JPP..T1..CBU;LN105,110,130,90,VZN130,YN106,110,85..JPP..CBU |
1 | ||
| 90987-02004 |
LN85..JPP..T1;LN105,110,130,90,VZN130,YN106,110,85..JPP |
1 | ||
| 90987-02009 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 90987-02004 |
LN105,110,130,85,90,VZN130,YN106,110,85,90..JPP..5F |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-01003 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-17010 |
RN110..JPP SWEDEN SPEC & W(LIGHT LEMIND WARNING) |
1 | ||
| 85969-17010 |
LN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND & W(LIGHT LEMIND WARNING) OR NORWAY SPEC & W(LIGHT LEMINDWARNING) |
1 | ||
| 85969-17010 |
RN110..JPP SWEDEN SPEC & W(LIGHT LEMIND WARNING) OR ICELAND SPEC & W(LIGHT LEMIND WARNING) |
1 | ||
| 85969-17010 |
LN105,110,85,90,YN110..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND & W(LIGHT LEMIND WARNING) OR NORWAY SPEC & W(LIGHT LEMINDWARNING) |
1 | ||
| 85969-89102 |
LN85..JPP..T1..CBU;LN105,YN85..JPP..LHD..CBU;LN108,110,90,RN106,110,YN110,90..JPP..(DCB,XTR) W(LIGHT LEMIND WARNING) |
1 | ||
| 85969-17010 |
RN110..JPP NORWAY SPEC & W(LIGHT LEMIND WARNING) OR SWEDEN SPEC & W(LIGHT LEMIND WARNIG);FINLAND SPEC & W(LIGHT LEMIND WARNING) OR ICELAND SPEC W(LIGHT LEMIND WARNING) |
1 | ||
| 85969-89102 |
LN105,85,YN85..JPP..LHD..CBU;LN108,110,90,RN106,110,YN110,90..JPP..(DCB,XTR) W(LIGHT LEMIND WARNING) |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-17010 |
RN110..JPP SWEDEN SPEC & W(LIGHT LEMIND WARNING) |
1 | ||
| 85969-17010 |
LN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND & W(LIGHT LEMIND WARNING) OR NORWAY SPEC & W(LIGHT LEMINDWARNING) |
1 | ||
| 85969-17010 |
RN110..JPP SWEDEN SPEC & W(LIGHT LEMIND WARNING) OR ICELAND SPEC & W(LIGHT LEMIND WARNING) |
1 | ||
| 85969-17010 |
LN105,110,85,90,YN110..JPP..LHD..T1..CBU FINLAND SPEC & VW BRAND & W(LIGHT LEMIND WARNING) OR NORWAY SPEC & W(LIGHT LEMINDWARNING) |
1 | ||
| 85969-89102 |
LN85..JPP..T1..CBU;LN105,YN85..JPP..LHD..CBU;LN108,110,90,RN106,110,YN110,90..JPP..(DCB,XTR) W(LIGHT LEMIND WARNING) |
1 | ||
| 85969-17010 |
RN110..JPP NORWAY SPEC & W(LIGHT LEMIND WARNING) OR SWEDEN SPEC & W(LIGHT LEMIND WARNIG);FINLAND SPEC & W(LIGHT LEMIND WARNING) OR ICELAND SPEC W(LIGHT LEMIND WARNING) |
1 | ||
| 85969-89102 |
LN105,85,YN85..JPP..LHD..CBU;LN108,110,90,RN106,110,YN110,90..JPP..(DCB,XTR) W(LIGHT LEMIND WARNING) |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-35360 |
YN106,110,85,90..JPP |
1 | ||
| 89550-35450 |
YN106,110,85,90..JPP |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-35010 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| Common parts | ||||
| 82715-89134 | ||||
| 90119-06390 | ||||
| 90159-50098 | ||||
| 90179-06026 | ||||
| 91656-40616 | ||||
| 93319-15010 | ||||
| 93560-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
