RN110L-CRMDEW (1988)
Toyota Hilux (Jpp)
Production
Aug 1988
-
Aug 1997
Engine
22RE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

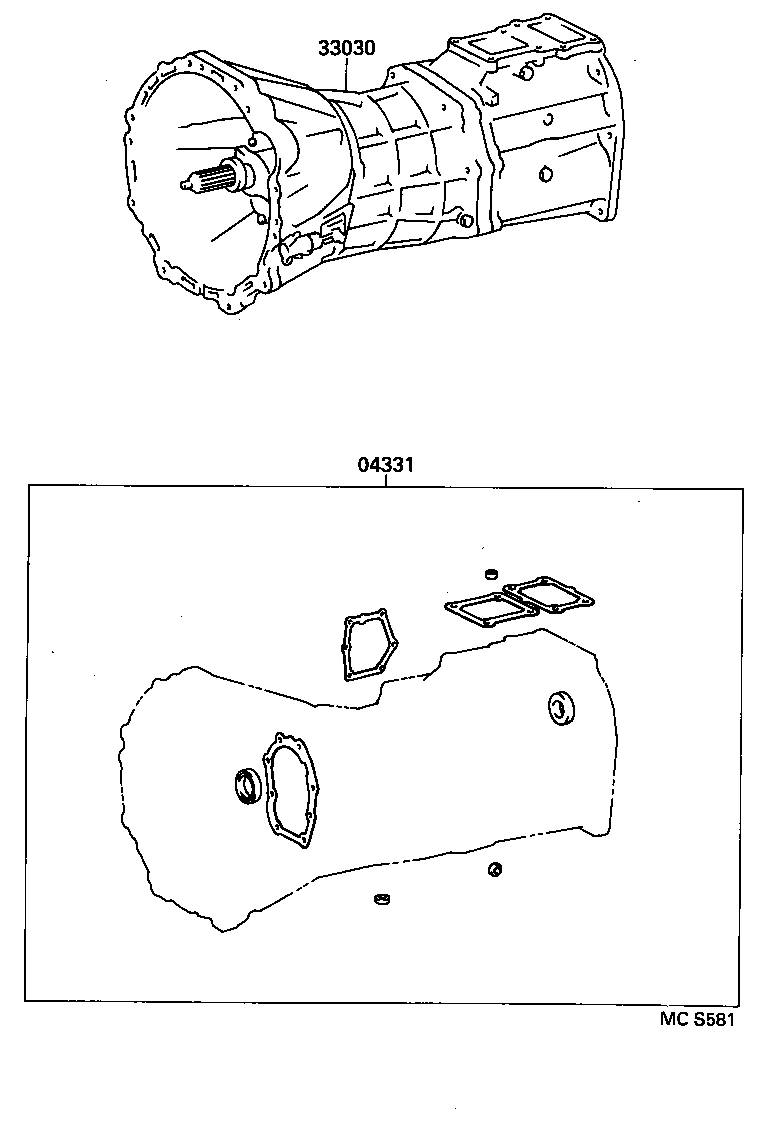

(8808- )RN106,110..JPP
Click highlighted areas on diagram
W56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL | ||||
| 04331-22040 |
RN106,110..JPP |
1 | ||
| 04331-35200 |
RN106,110..JPP |
1 | ||
| 04331-35160 |
LN10#,110,YN106,110..JPP |
1 | ||
| 33030 - TRANSMISSION UNIT ASSY, MANUAL | ||||
| 33030-35730 |
YN106,110..JPP |
1 | ||
| 33030-3D330 |
RN106,110..JPP |
1 | ||
| 33030-35870 |
LN105,110..JPP |
1 | ||
| 33030-35871 |
LN10#,110..JPP |
1 | ||
| 33030-35873 |
LN10#,110..JPP |
1 | ||
| 33030-3D331 |
RN106,110..JPP |
1 | ||
| 33030-35860 |
RN106,110..JPP |
1 | ||
| 33030-35731 |
YN106,110..JPP |
1 | ||
| 33030-35872 |
LN10#,110..JPP |
1 | ||

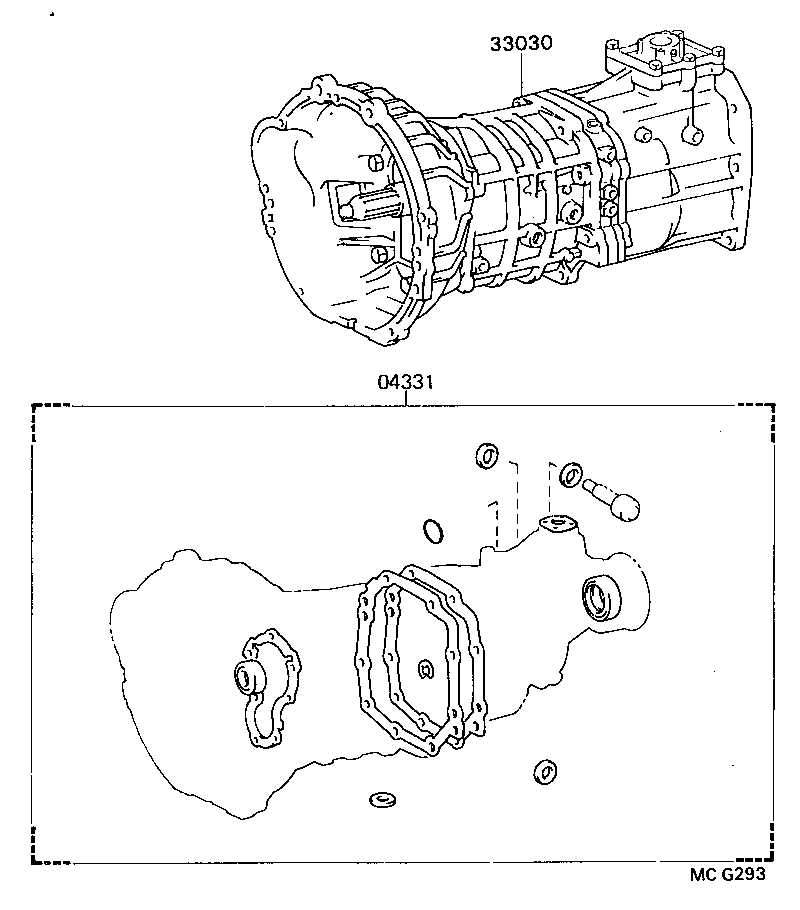

(8808- )LN10#,110,YN106,110..JPP
Click highlighted areas on diagram
G5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL | ||||
| 04331-22040 |
RN106,110..JPP |
1 | ||
| 04331-35200 |
RN106,110..JPP |
1 | ||
| 04331-35160 |
LN10#,110,YN106,110..JPP |
1 | ||
| 33030 - TRANSMISSION UNIT ASSY, MANUAL | ||||
| 33030-35730 |
YN106,110..JPP |
1 | ||
| 33030-3D330 |
RN106,110..JPP |
1 | ||
| 33030-35870 |
LN105,110..JPP |
1 | ||
| 33030-35871 |
LN10#,110..JPP |
1 | ||
| 33030-35873 |
LN10#,110..JPP |
1 | ||
| 33030-3D331 |
RN106,110..JPP |
1 | ||
| 33030-35860 |
RN106,110..JPP |
1 | ||
| 33030-35731 |
YN106,110..JPP |
1 | ||
| 33030-35872 |
LN10#,110..JPP |
1 | ||
